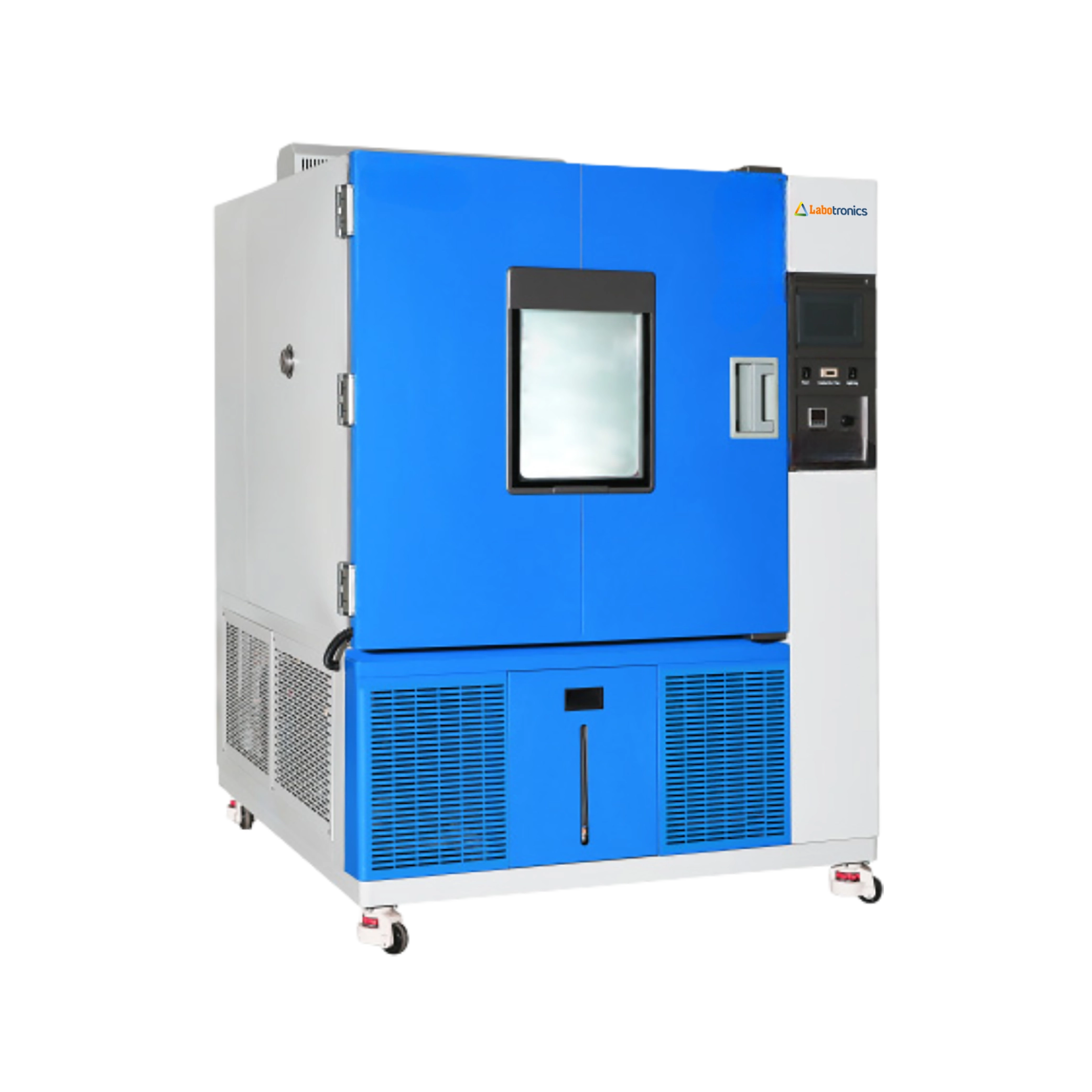

Temperature Test Chamber LB-18TTC

Temperature Test Chamber LB-18TTC

Temperature Test Chamber LB-18TTC offers 150L capacity with a temperature range of up to 150°C for reliable product testing. It includes high-quality refrigerants and an independent heating system for efficient temperature control. It has a multi-leaf centrifuge fan for uniform temperature distribution. Our test chamber features a digital display, ensuring accurate environmental testing.

$ 5916.25

Download Catalog

Specifications

Capacity 150L
Temperature Range 0 to +150°C
Temperature Fluctuation ≤ ±0.5°C
Temperature Uniformity ≤ 2.0°C
Heating Rate 2.0 to 3.0°C/min
Cooling Rate 0.7 to 1.0°C/min
Refrigerant R404A/R23
Refrigeration System Unit cooling mode / Dual cooling mode
Heating System NiCr heater, independent system
Circulation System Single cycle, long axis, and stainless-steel multi-leaf type centrifuge fan
Display 7-inch touch screen
Interior Anti-corrosion SUS#304 mirror stainless steel
Exterior Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool/polyurethane foam
Power Supply 220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H) 500 × 500 × 600 mm
Outer Dimension (W × D × H) 1050 × 1100 × 1850 mm
Gross Weight 450 kg

Features

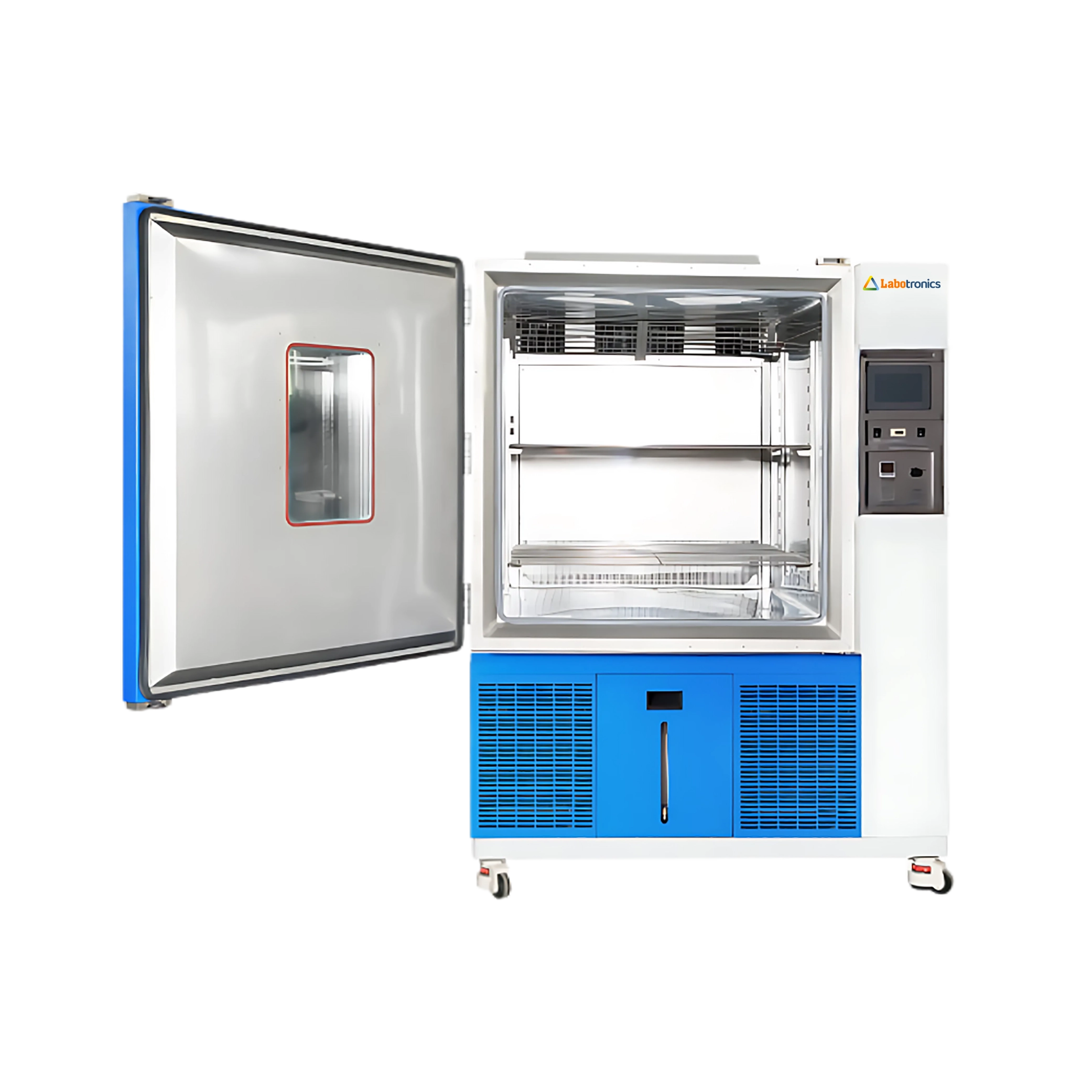

  • Transparent viewing window
  • Customizable setting
  • User-friendly interface
  • Advanced air circulation
  • Low-noise operation

Applications

Temperature Test Chamber LB-18TTC is perfect for testing product performance in extreme temperature conditions. It is widely used in electronics, automotive, aerospace, and manufacturing industries.
Temperature Test Chamber LB-18TTC Banner
Temperature Test Chamber LB-18TTC Banner

Get Quote

Frequently asked questions For Temperature Test Chamber

1. What is the primary purpose of the LB-18TTC?

The LB-18TTC is built for precise temperature testing, helping manufacturers and researchers evaluate the thermal stability, durability, and performance of products under controlled environmental conditions.

2. Can the LB-18TTC be used for long-term or endurance testing?

Labotronics LB-18TTC chamber is designed for continuous operation, making it ideal for long-term reliability and stress testing over several days.

3. Can the LB-18TTC handle sensitive materials?

Yes, the LB-18TTC provides precise temperature control and uniform airflow distribution, making it ideal for testing delicate electronics, polymers, and other temperature-sensitive samples.

4. What makes the LB-18TTC reliable for continuous operation?

Our LB-18TTC is built with high-quality materials, advanced PID temperature control, and a robust circulation system, ensuring consistent performance even during long-term or frequent testing cycles.

5. What is a Temperature Test Chamber used for?

A Temperature Test Chamber is used to simulate specific temperature conditions to test the durability, stability, and performance of products or materials in industries like electronics, automotive, aerospace, and pharmaceuticals.

6. How is temperature stability maintained during testing?

The chamber is equipped with precise control systems and insulated walls to ensure consistent temperature levels throughout the testing cycle.

7. How easy is it to operate the chamber with gloves on?

The user interface is designed to be glove-friendly, allowing operators to adjust settings and monitor tests without removing protective equipment.

8. Can the Labotronics test chamber handle both high and low temperatures?

Yes, Our Temperature Test Chambers can simulate a wide range of conditions, from extreme cold to high heat, making them ideal for various testing requirements.
