Vacuum Furnace LB-13VFF

Name: Vacuum Furnace LB-13VFF
Brand: Labotronics
SKU: LB-13VFF
Rating: 5 (535 reviews)

Vacuum Furnace LB-13VFF offers a maximum temperature of 1400°C and maintains a continuous operating temperature of 1300°C. It includes a 12-liter test chamber and 1600°C polycrystal alumina ceramic fiber insulation for superior thermal efficiency. It features high-quality Silicon Carbide heating elements, ensuring uniform heat distribution. Our furnace is equipped with a digital vacuum gauge, providing real-time pressure monitoring for precise control.

$ 29125

Download Catalog

Specifications

Capacity	12L
Maximum Temperature	1400°C
Operating Temperature	1300°C
Precision	± 1°C
Heating Rate	≤ 25°C/min (15 to 20°C/min recommended)
Heater	SiC Heater
Chamber Material	1600°C Polycrystal Alumina Ceramic Fiber Plate
Thermocouple	S Type
Controller	Yudian 516P
Control Functions	Auto rise, hold, shutdown
Vacuum Pump	BSV60 + BSJ70 + KT200 (6×10⁻² Pa)
Vacuum Gauge	Digital
Cooling System	C-2 Water Cooler
Shell Material	Cold-rolled steel, CNC-machined, coated
Safety	Alarms, auto protection, circuit breaker
Power Consumption	5KW
Power Supply	220V, 50/60Hz
Chamber Dimension (W × D × H)	200 × 300 × 200 mm
Net Weight	550 Kgs
Gross Weight	650 Kgs

Features

Corrosion-resistant steel shell construction
Flange-sealed door for secure closure
Dual side SiC heating ensures uniformity
30-segment programmable controller
Adjustable air inlets/outlets

Standard Accessories

Gas Supply System × 1 Piece

Vacuum System × 1 Piece

Digital Vacuum Gauge × 1 Piece

Power Cord × 1 Piece

Furnace Gloves × 1 pair

Thermocouple × 1 Piece

Crucible Tong × 1 pair

Optional Accessories

Heating Element

Paperless Recorder

Alumina Crucible

Applications

Vacuum Furnace LB-13VFF is used for high-temperature heat treatment processes such as brazing, sintering, and annealing in a controlled vacuum environment. It is widely used in aerospace, metallurgy, electronics, and research laboratories for material processing.

Get Quote

Vacuum Furnace LB-11VFF

Chamber Volume	8 L
Chamber Material	SS 310S
Chamber Thickness	8 mm
Effective Working Area Size	200 × 200 × 200 mm
Max. Design Temperature	900℃

$ 21237.5

Vacuum Furnace LB-15VFF

Capacity	12 L
Maximum Temperature	1700°C
Continuous Temperature	1500°C
Temperature Uniformity	±5°C
Temperature Accuracy	±1°C

$ 113750

Vacuum Furnace LB-14VFF

Capacity	12 Liters
Maximum Temperature	1700°C
Continuous Temperature	1600°C
Temperature Precision	± 1°C
Heating Rate	≤ 10°C/min

$ 32237.5

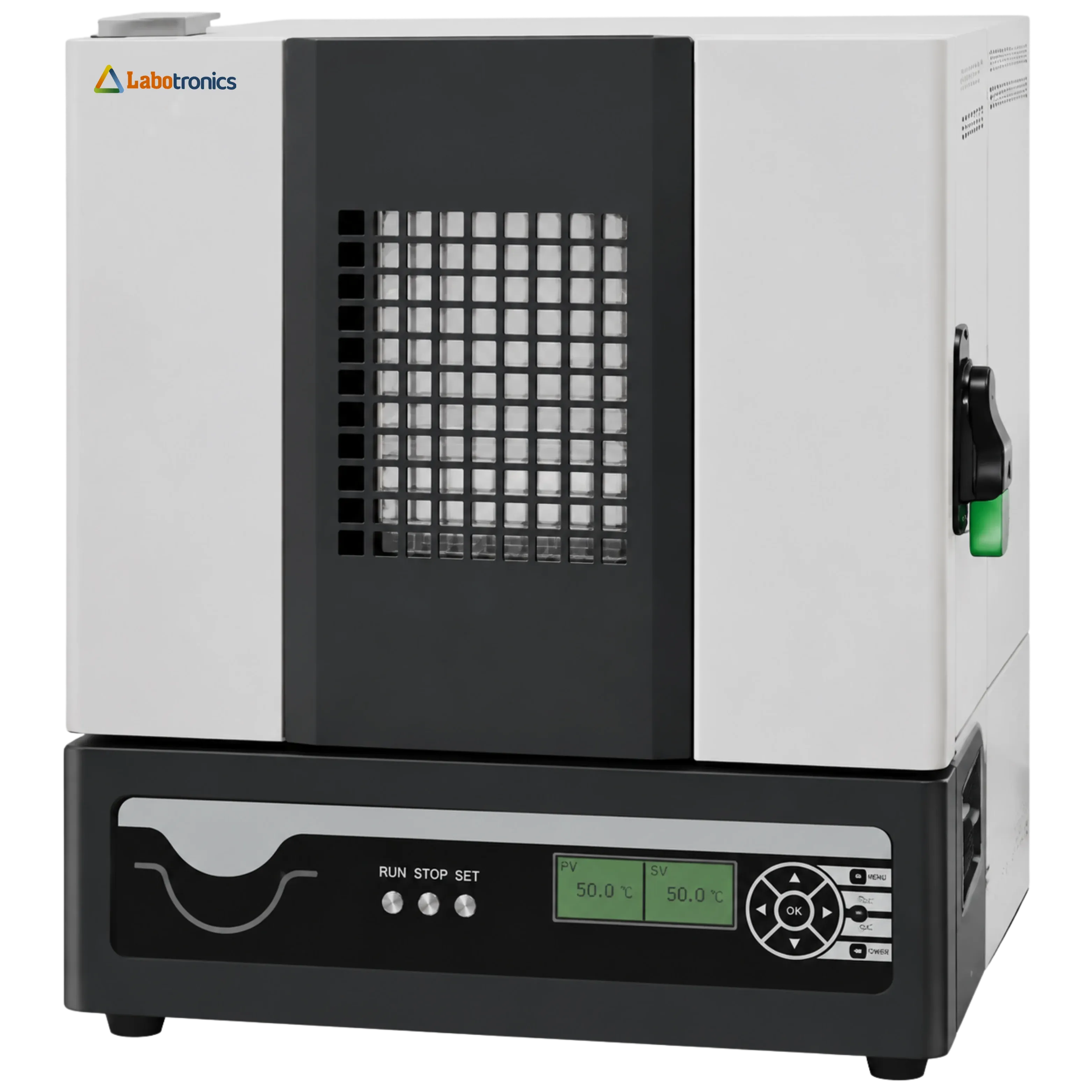

Vacuum furnace LB-10VFF
