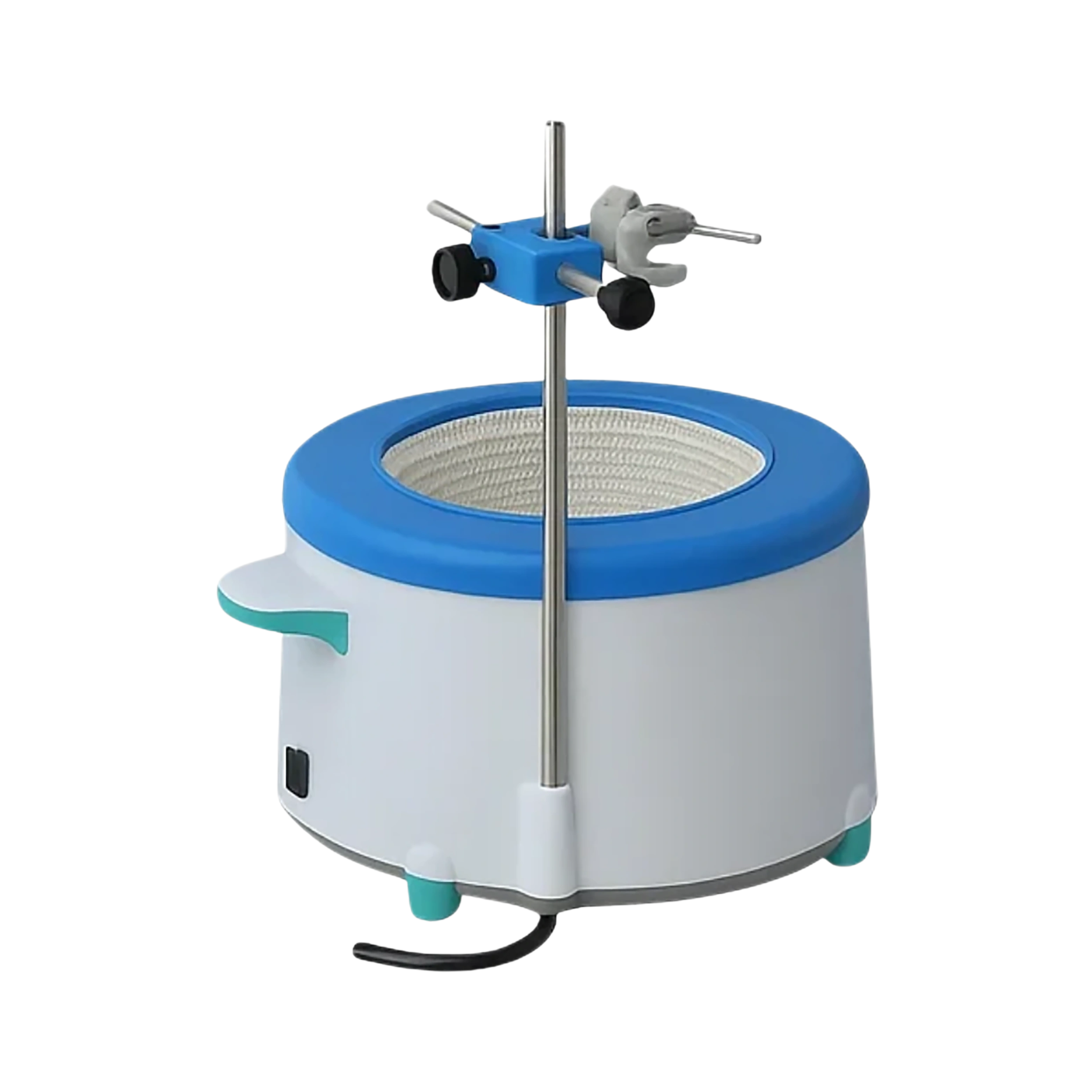

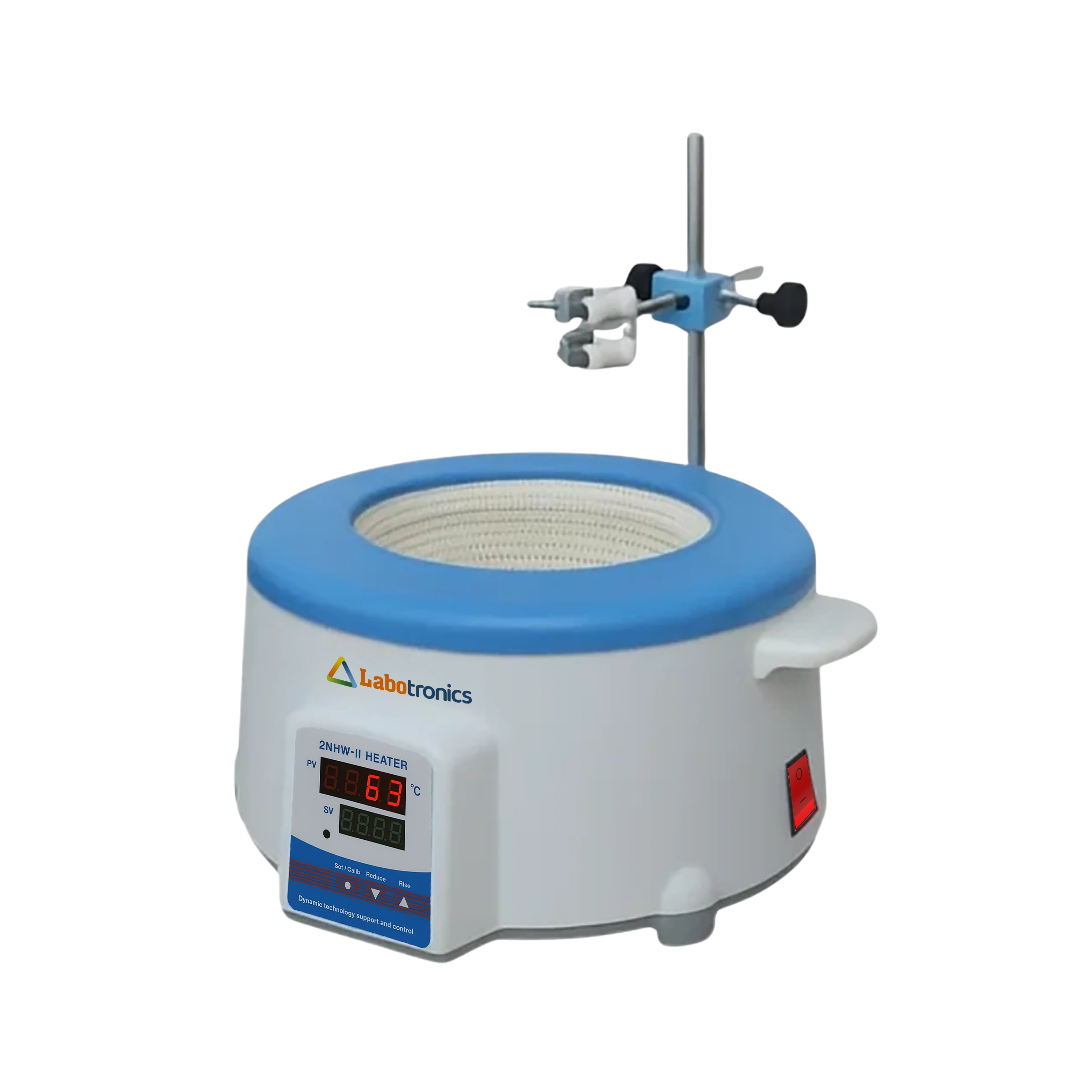

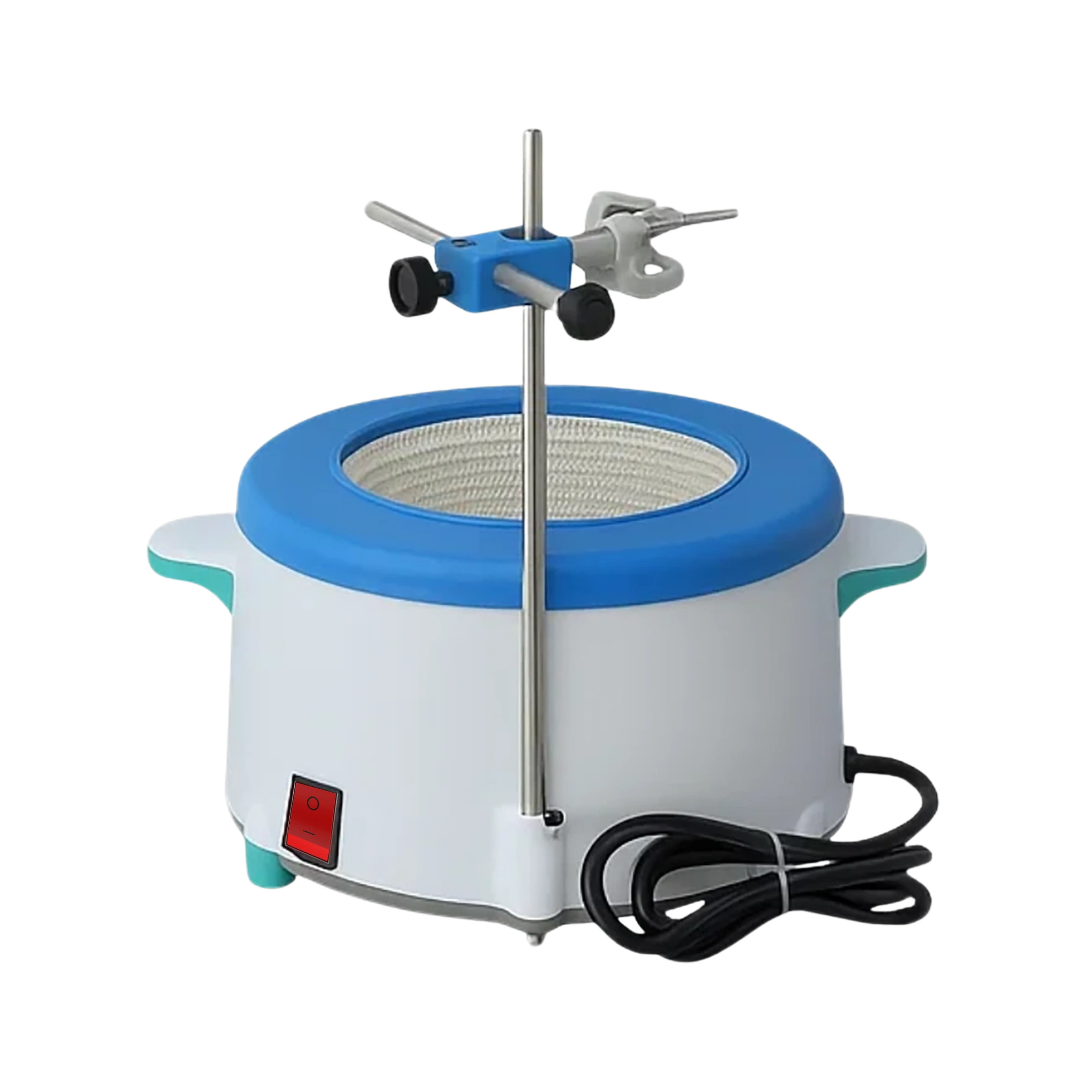

Advanced thermostatic heating mantle LB-60HMT is a table top heating mantle with a capacity of 50 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.
Specifications
Capacity | 50 mL |
Power | 110 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Voltage | 160 V ̴ 240 V, 110 V ̴ 120 V |
Features
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
standard_accessories
Accessory No. | Accessory | Quantity |
A1 | Removable holder | 1 |
A2 | Clamp with screw | 1 |
A3 | Inner Thermocouple (4 - spin) | 1 |
A4 | Outer Thermocouple (4 - spin) | 1 |
· Stainless Steel Length: 235mm | ||
· Wire length : 1000mm | ||
A5 | Magnetic bead | 1 |
· Designed specifically for round bottom flasks | ||
· PTFE - coated | ||
· Length: 20mm | ||
· Diameter : 10 mm |
Catalog
Dowload PDF CatalogCapacity | 50 mL |
Power | 110 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 100 mL |
Power | 130 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 500 mL |
Power | 220 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 1 L |
Power | 530 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 2 L |
Power | 650 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 3 L |
Power | 750 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 5 L |
Power | 1100 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 20 L |
Power | 5000 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 250 mL |
Power | 216 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
Capacity | 10 L |
Power | 3000 W |
Temperature | 380 °C |
Temperature accuracy | ± 1 °C |
