Advanced Thermostatic  Heating mantle  LB-65HMT

Advanced Thermostatic Heating mantle LB-65HMT

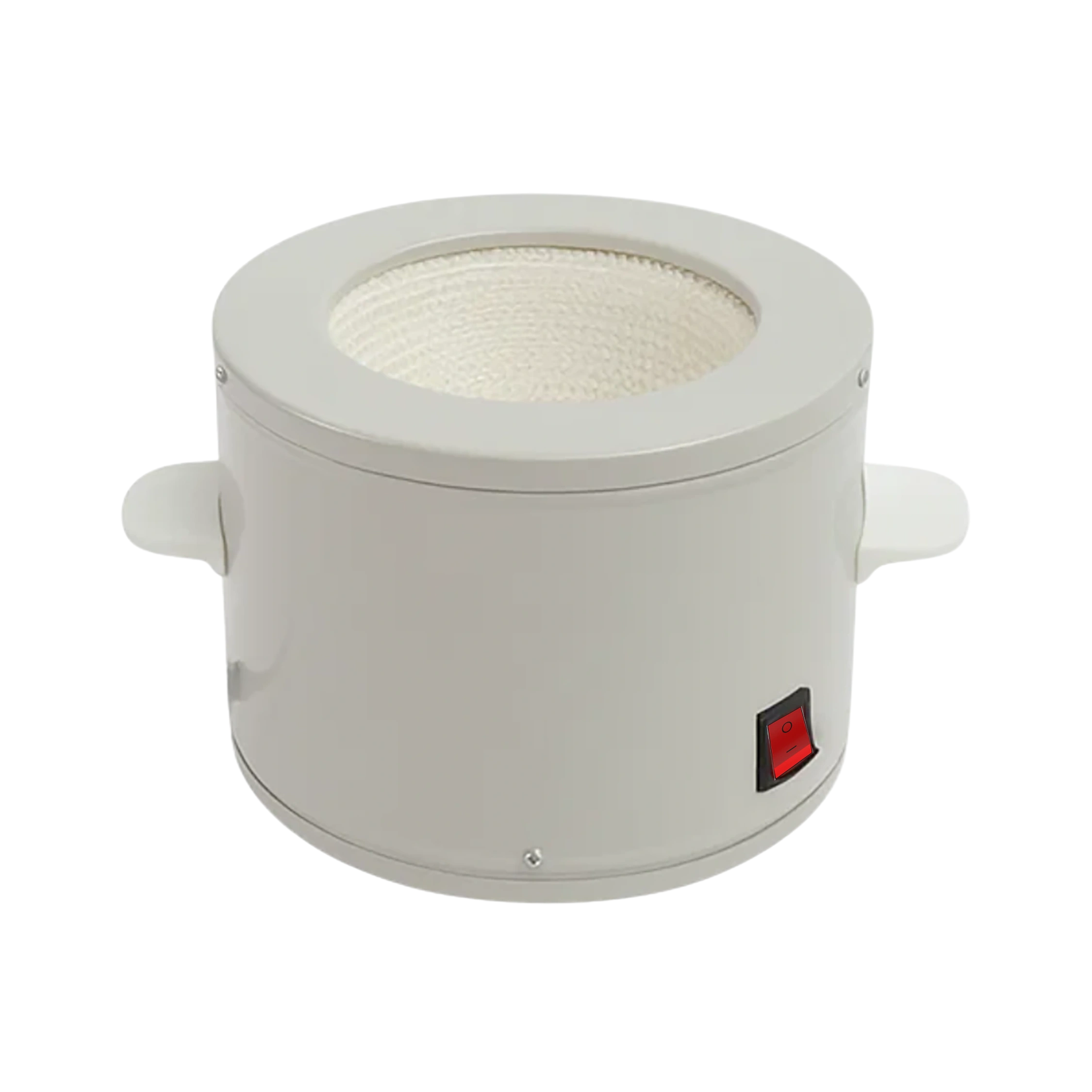

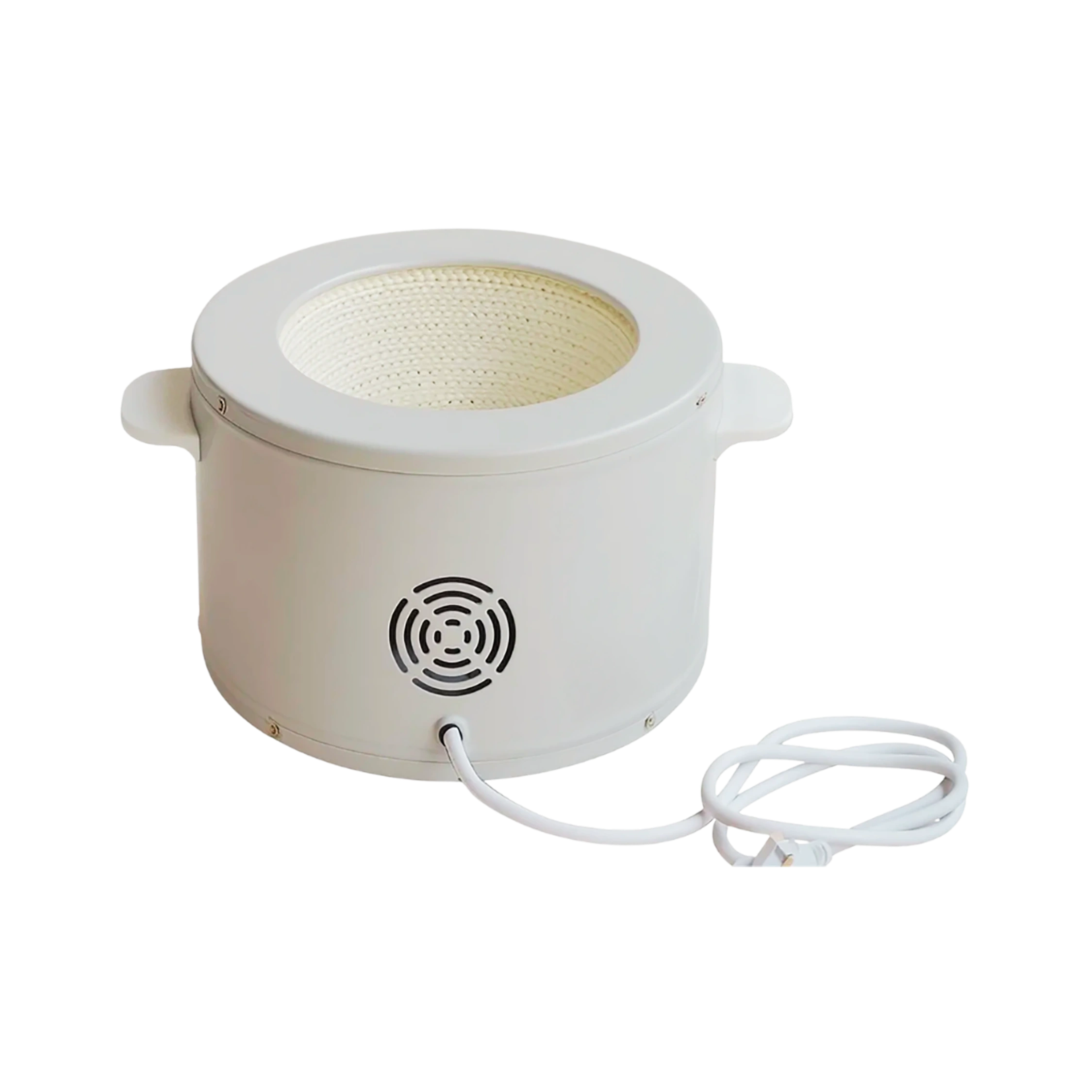

Advanced thermostatic heating mantle LB-65HMT is a table top heating mantle with a capacity of 2 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

Request Quote Download Catalog

Specifications

Capacity 2 L
Power 650 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Voltage 160 V ̴ 240 V, 110 V ̴ 120 V

Features

  • Capacity of 2 L
  • Continuous working time
  • Alkali-free glass fiber
  • PID temperature control
  • Customized mantle available
  • Insulating course material of alumina silicate fiber
  • It has self-tuning mechanism by which it checks the temperature value reach the set temperature value

Applications

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

Standard Accessories

Accessory No. Accessory Quantity
A1 Removable holder 1
A2 Clamp with screw 1
A3 Inner Thermocouple (4 - spin) 1
A4 Outer Thermocouple (4 - spin) 1
·         Stainless Steel Length: 235mm
·         Wire length : 1000mm
A5 Magnetic bead 1
·         Designed specifically for round bottom flasks
·         PTFE - coated
·         Length: 20mm
·         Diameter : 10 mm
