Advanced Thermostatic Heating mantle LB-63HMT

Name: Advanced Thermostatic Heating mantle LB-63HMT
Brand: Labotronics
SKU: LB-63HMT
Rating: 4.9 (577 reviews)

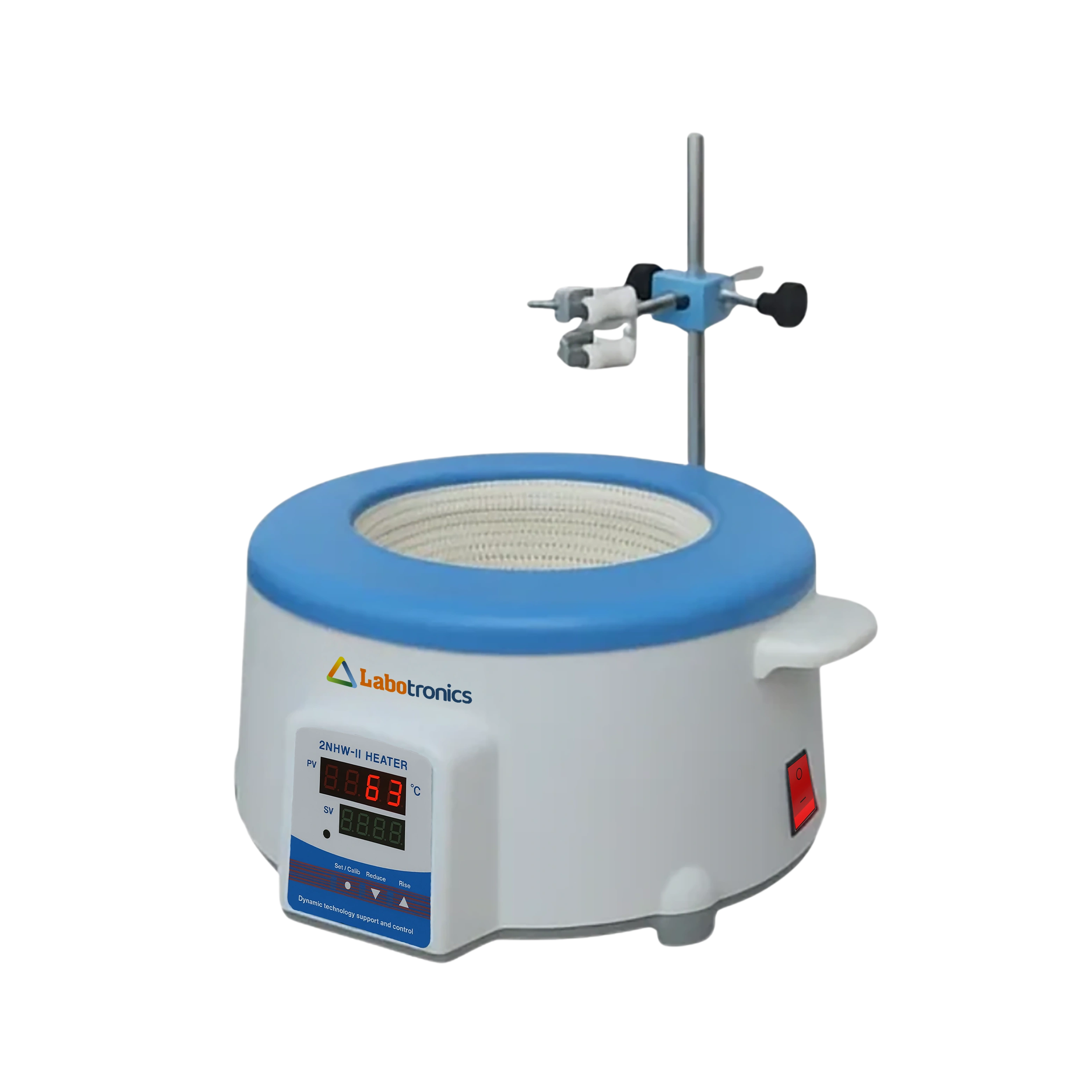

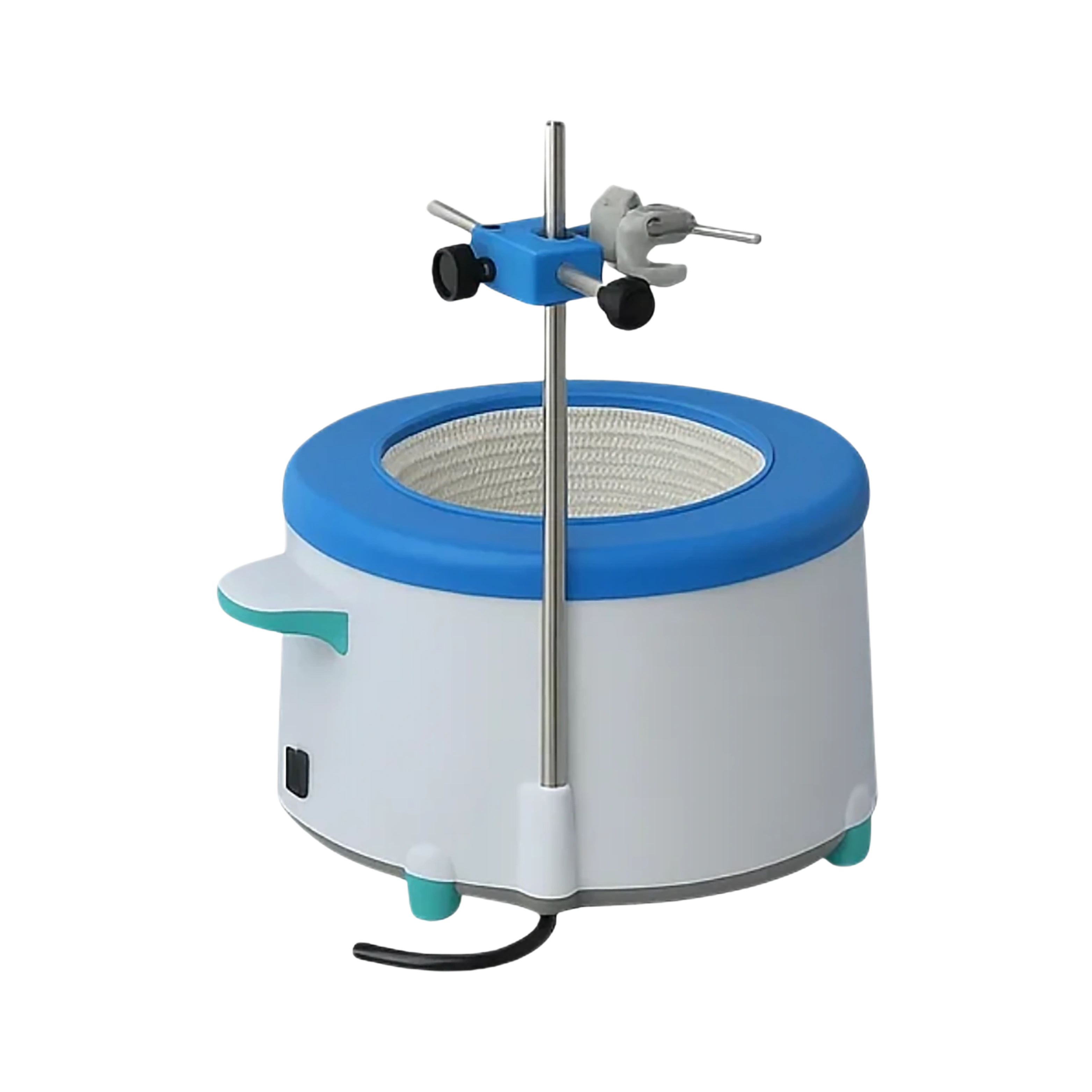

Advanced thermostatic heating mantle LB-63HMT is table top heating mantle with a capacity of 500 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

Buy Now Download Catalog

Specifications

Capacity	500 mL
Power	220 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Voltage	160 V ̴ 240 V, 110 V ̴ 120 V

Features

Capacity of 500 mL
Continuous working time
Alkali-free glass fiber
PID temperature control
Customized mantle available
Insulating course material of alumina silicate fiber

Standard Accessories

Accessory No.	Accessory	Quantity
A1	Removable holder	1
A2	Clamp with screw	1
A3	Inner Thermocouple (4 - spin)	1
A4	Outer Thermocouple (4 - spin)	1
	· Stainless Steel Length: 235mm
	· Wire length : 1000mm
A5	Magnetic bead	1
	· Designed specifically for round bottom flasks
	· PTFE - coated
	· Length: 20mm
	· Diameter : 10 mm

Applications

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

Capacity	10L
Temperature Range	RT to 380℃
Temperature Accuracy	± 1 °C
Temperature control	PID auto with thermo probe

Capacity	20L
Temperature Range	RT to 380℃
Temperature Accuracy	± 1°C
Temperature control	PID auto with thermo probe

Capacity	50L
Temperature Range	Ambient to 380°C (500°C available upon request)
Temperature Control	PID Control with inner thermocouple and outer probe
Temperature Accuracy	±1°C
