Advanced Thermostatic Heating mantle LB-61HMT

Advanced Thermostatic  Heating mantle  LB-61HMT

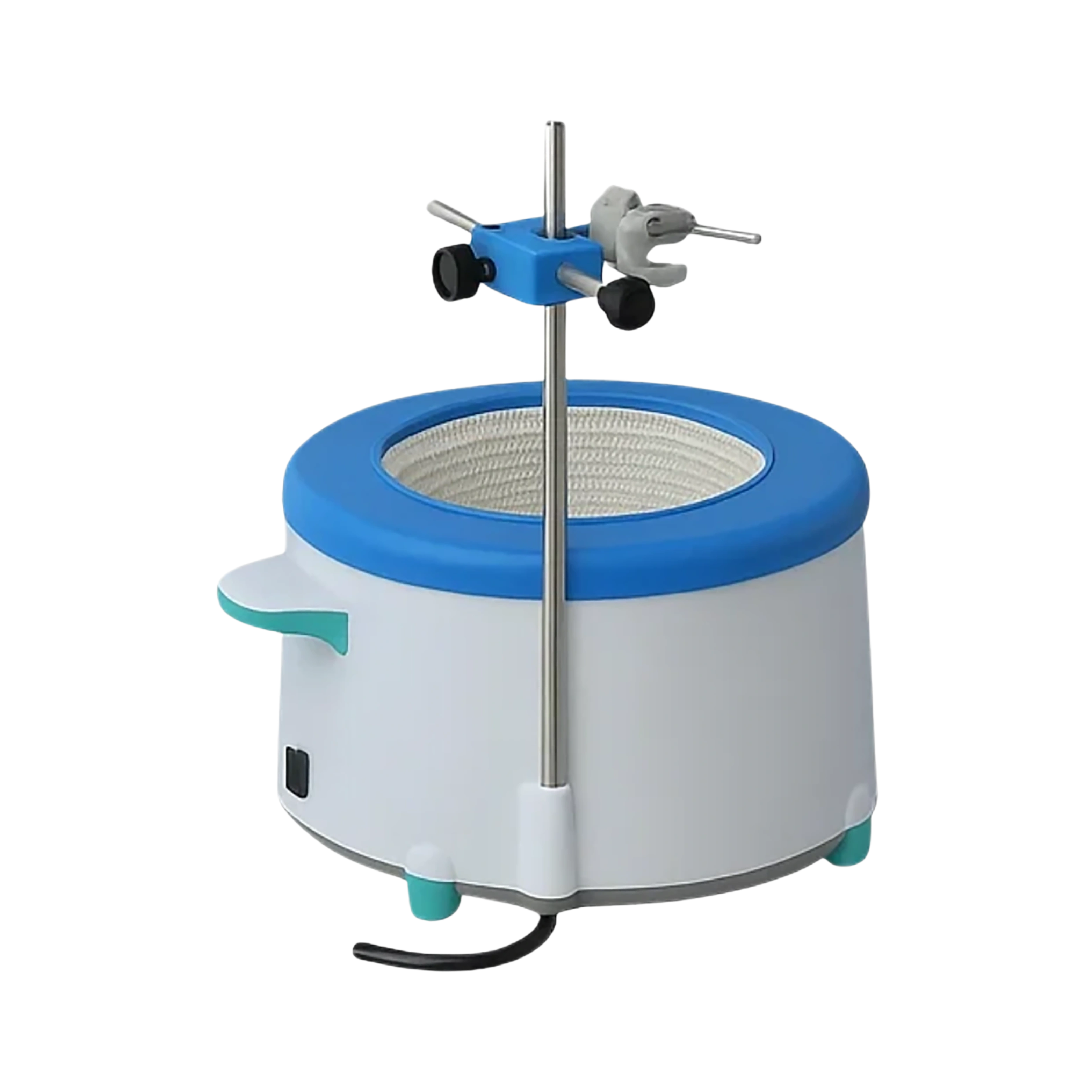

Advanced thermostatic heating mantle LB-61HMT is table top heating mantle with a capacity of 100 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

View Catalog Get Quote
Standard Accessories
Capacity 100 mL
Power 130 W
Temperature 380 °C
Temperature accuracy ± 1 °C
Voltage 160 V ̴ 240 V, 110 V ̴ 120 V
  1. Capacity of 100 mL
  1. Continuous working time
  1. Alkali-free glass fiber
  1. PID temperature control
  1. Customized mantle available
  1. Insulating course material of alumina silicate fiber

Accessory No. Accessory Quantity
A1 Removable holder 1
A2 Clamp with screw 1
A3 Inner Thermocouple (4 - spin) 1
A4 Outer Thermocouple (4 - spin) 1
·         Stainless Steel Length: 235mm
·         Wire length : 1000mm
A5 Magnetic bead 1
·         Designed specifically for round bottom flasks
·         PTFE - coated
·         Length: 20mm
·         Diameter : 10 mm

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
