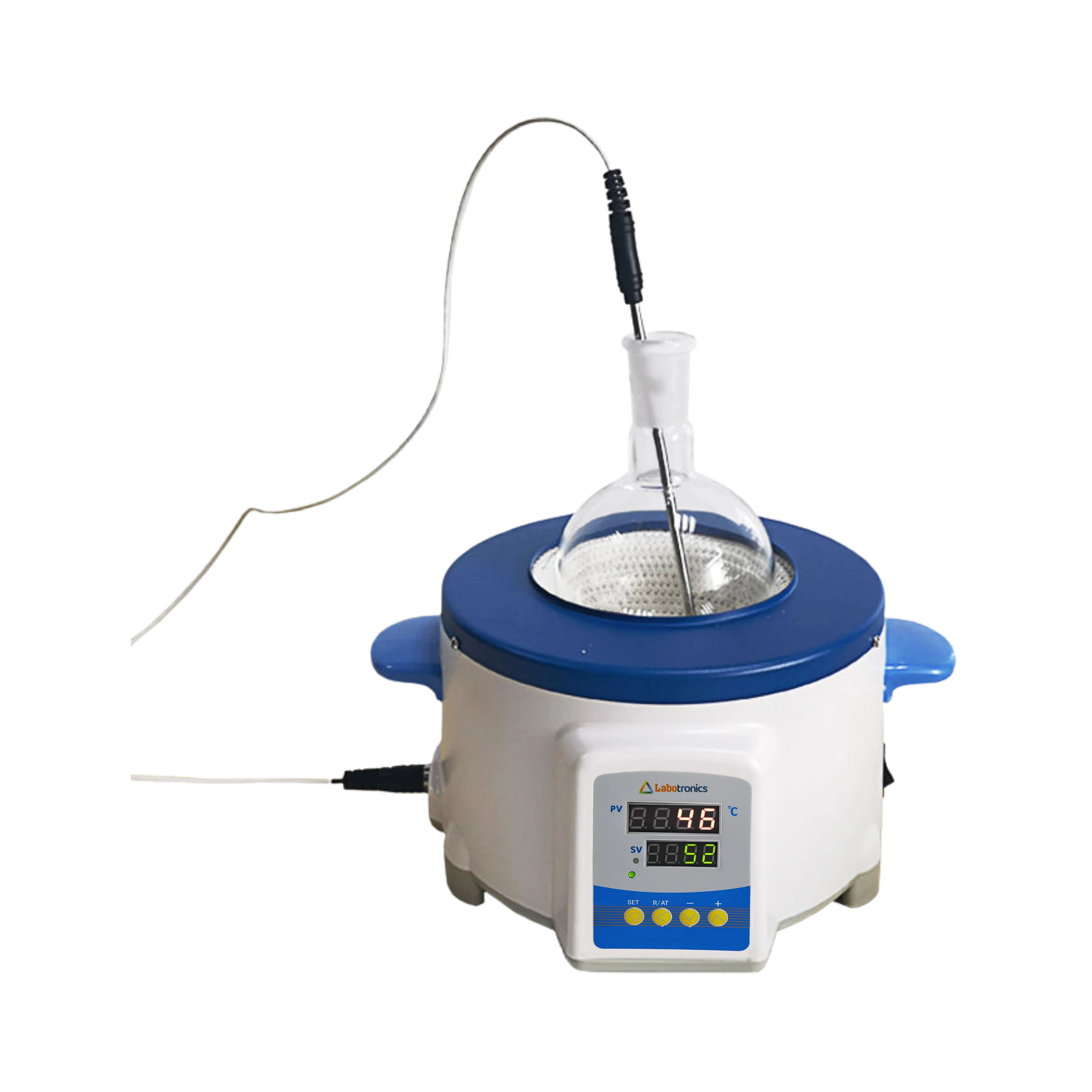

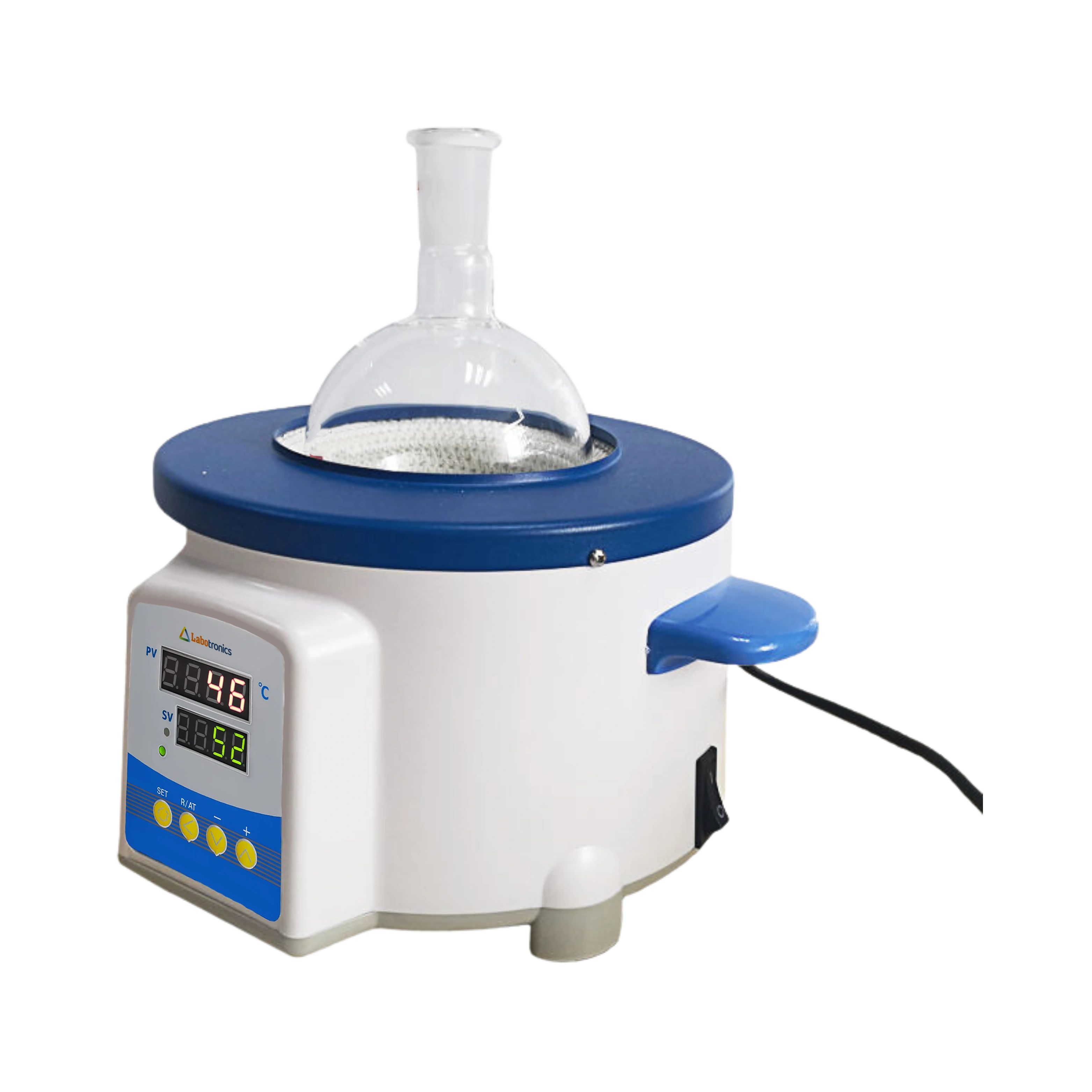

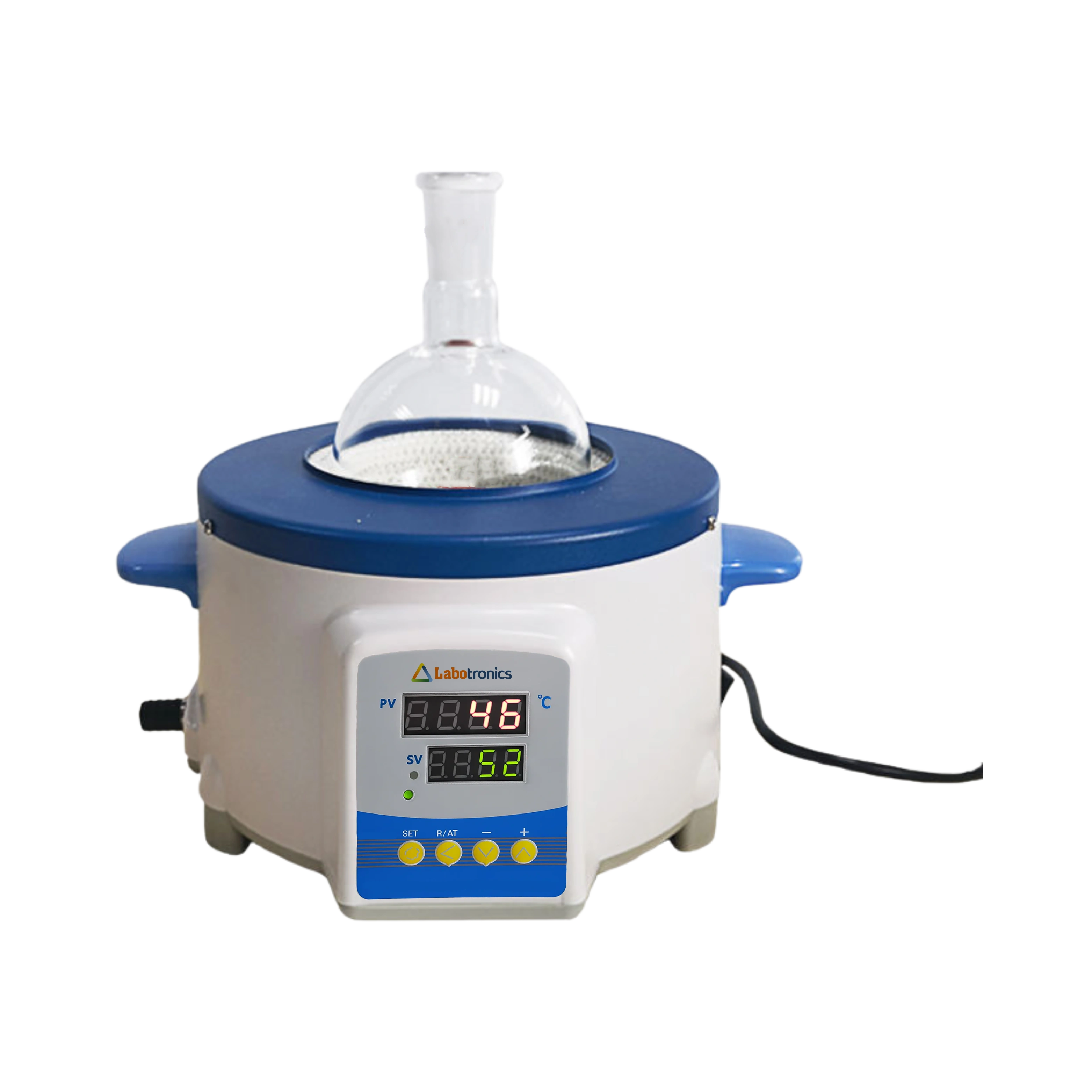

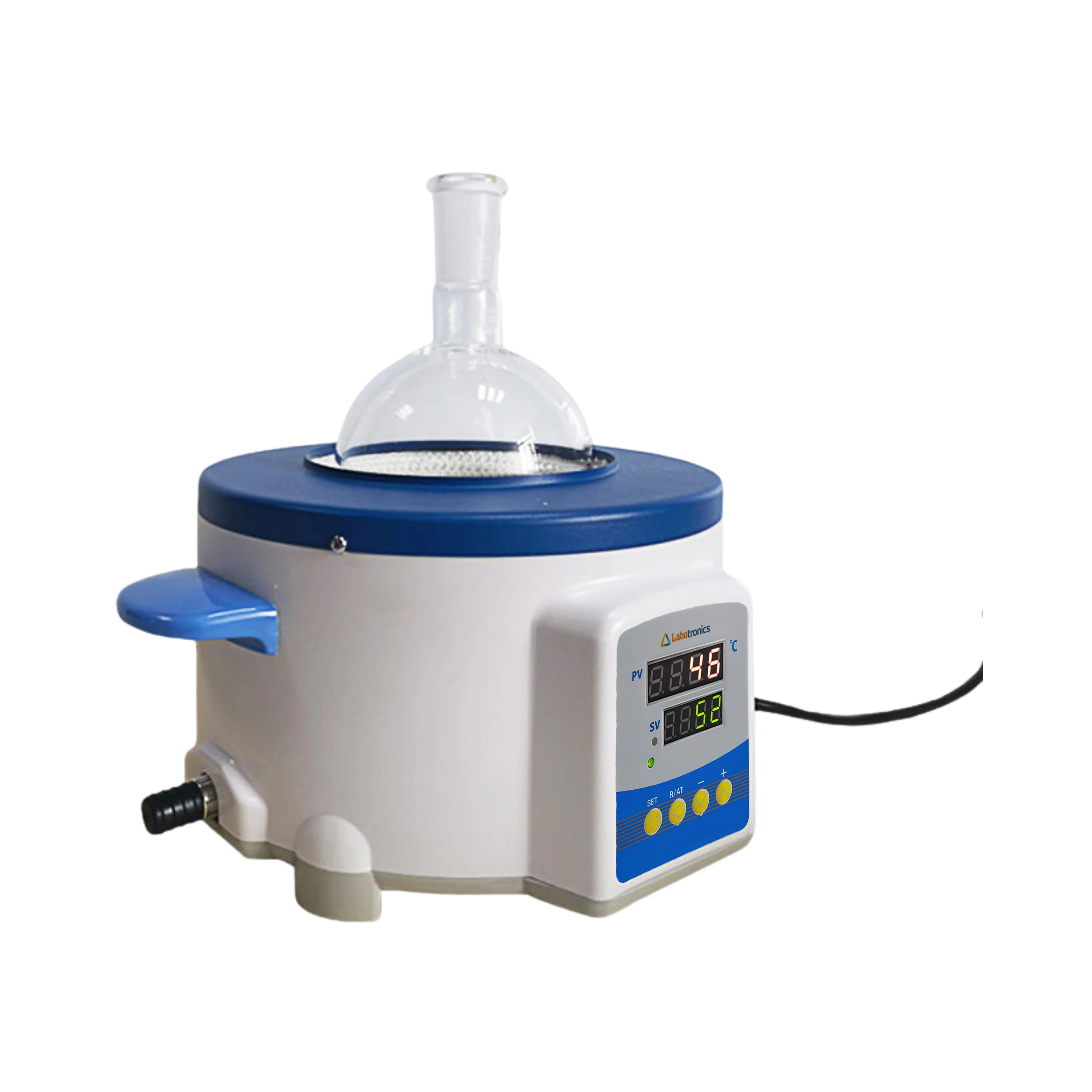

Advanced Thermostatic Heating mantle LB-68HMT

Advanced thermostatic heating mantle LB-68HMT is a table top heating mantle with a capacity of 10 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

Specifications

Capacity	10 L
Power	3000 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Voltage	160 V ̴ 240 V, 110 V ̴ 120 V

Features

Capacity of 10 L
Continuous working time
Alkali-free glass fiber
PID temperature control
Customized mantle available
Insulating course material of alumina silicate fiber
It has self-tuning mechanism by which it checks the temperature value reach the set temperature value

Applications

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

standard_accessories

Accessory No.	Accessory	Quantity
A1	Removable holder	1
A2	Clamp with screw	1
A3	Inner Thermocouple (4 - spin)	1
A4	Outer Thermocouple (4 - spin)	1
	· Stainless Steel Length: 235mm
	· Wire length : 1000mm
A5	Magnetic bead	1
	· Designed specifically for round bottom flasks
	· PTFE - coated
	· Length: 20mm
	· Diameter : 10 mm
