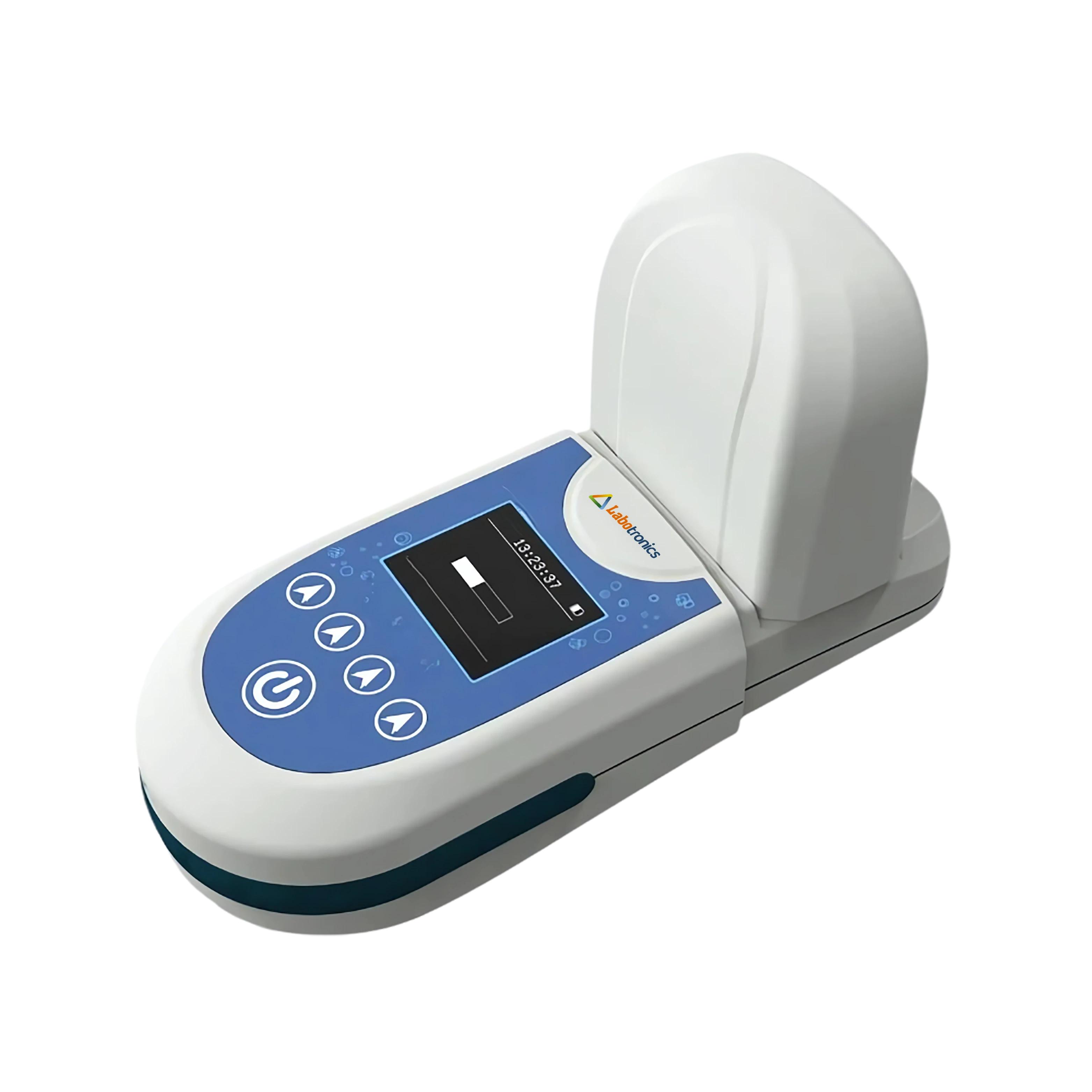

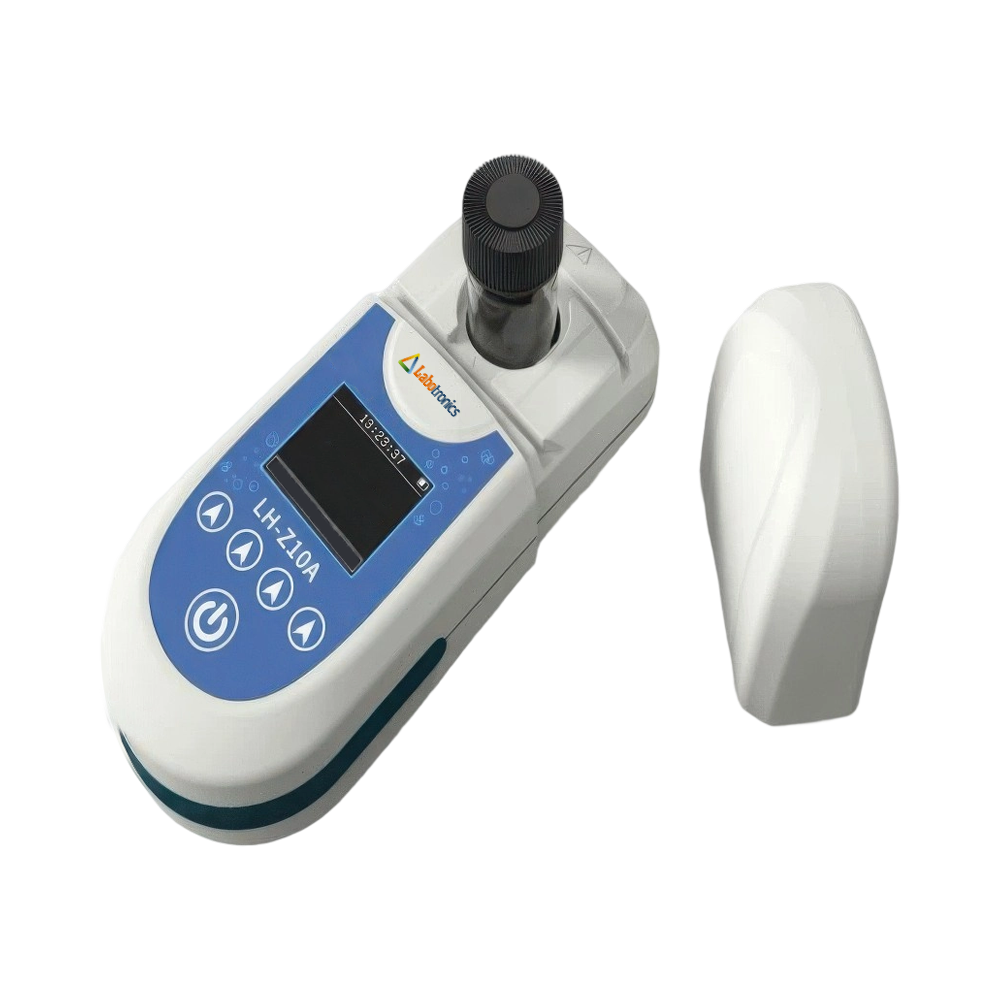

Portable Turbidity Meter LB-20PTM measures turbidity from 0 to 1000 NTU and suspended solids from 0 to 1000 mg/L using 90° scattered and 180° transmitted light. It uses near-infrared technology and high-precision optics to minimize colour interference and deliver stable, accurate results. Our turbidity meter features a clear OLED display for real-time readings and user-friendly operation.
$ 1970
Download CatalogSpecifications
| Model No | LB-20PTM |
| Measuring Range | 0 to 1000 NTU (Turbidity); 0 to 1000 mg/L (Total Suspended Solids) |
| Indication Error | ±0.3 NTU or ±8 % (Turbidity); ±0.3 mg/L or ±8 % (Total Suspended Solids) |
| Repeatability | <10 NTU: ≤±0.1 NTU; >10 NTU: ≤±1 % (Turbidity); <10 mg/L: ≤±0.1 mg/L; >10 mg/L: ≤±1 % (Total Suspended Solids) |
| Calibration Range | Up to 8-point (Turbidity); One-point (Total Suspended Solids) |
| Zero Drift | ≤±0.3 % FS / 30 min |
| Working Temperature Range | 5 to 40 ℃ |
| Storage Temperature Range | -10 to 55 ℃ |
| Humidity Range | 0 to 80 % RH |
| Power | Lithium battery (Optional dry battery) |
| Dimension | 170 × 72 × 44 mm |
| Weight | 0.29 kg |
Features
• Dual light detection
• Near-infrared light source
• Built-in calibration
• High-precision optics
• Compact and rugged design
• IP65-rated
Applications
Portable Turbidity Meter-LB-20PTM is suitable for measuring turbidity and suspended solids in water samples. It is ideal for environmental monitoring, wastewater treatment, field testing, industrial water analysis, and research laboratories.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Measurement range | 0 ~ 20 0 ~ 200 |
| Minimum value | 0.01 0.1 |
| Repeatability | ≤ 1 % |
| Error | ± 8 % ( ± 2.5 % F.S ) |
| Battery power | 1.5 V |
| Turbidity Range | 0 to 20 NTU 0 to 1000 NTU |
| Operating Temperature Range | 5 to 40℃ |
| Storage Temperature Range | -10 to 55℃ |
| Humidity Range | 0 to 80% RH |
| Indication Error | ±0.1 NTU or ±5% NTU (0 to 20 NTU Turbidity) ±0.3 NTU or ±8% NTU (0 to 1000 NTU Turbidity) |
| Measurement range | 0 ~ 20 |
| Minimum value | 0.01 |
| Repeatability | ≤ 1 % |
| Error | ± 8 % ( ± 2.5 % F.S ) |
| Battery power | 1.5 V |
| Measurement range | 0 ~ 200 |
| Calibration point | 2 |
| Minimum value | 0.1 |
| Repeatability | ≤ 1 % |
| Error | ± 8 % ( ± 2.5 % F.S ) |
| Measurement range | 0 ~ 100 0 ~ 200 |
| Calibration point | 4 |
| Minimum value | 0.01 0.1 |
| Repeatability | ≤ 0.5 % |
| Error | ± 6 % ( ± 2 % F.S ) |
.webp "Portable Turbidity Meter LB-19PTM")
| Measurement Range | 0 to 1100 NTU 0 to 275 EBC 0 to 9999 ASBC |
| Resolution | 0.01 (0 to 99 NTU) 0.1 (100 to 999 NTU) 1 (1000 to 1100 NTU) |
| Accuracy | ± 2% of reading (0 to 500 NTU) ± 3% of reading (501 to 1100 NTU) |
| Measurement Principal | ISO 7027 nephelometric method (90°) |
| Sample Volume | 30 mL |
| Measurement range | 0 ~ 100 100 ~ 1000 |
| Calibration point | 7 |
| Minimum value | 0.01 0.1 |
| Repeatability | ≤ 0.5 % |
| Error | ± 6 % ( ± 2 % F.S ) |
| Measurement range | 0 to 100 100 to 500 |
| Calibration point | 6 |
| Minimum value | 0.01 0.1 |
| Repeatability | ≤ 0.5 % |
| Error | ± 6 % ( ± 2 % F.S ) |
| Measurement range | 0 ~ 100 100 ~ 800 |
| Calibration point | 6 |
| Minimum value | 0.01 0.1 |
| Repeatability | ≤ 0.5 % |
| Error | ± 6 % ( ± 2 % F.S ) |
| Measurement range | 0 ~ 1000 |
| Calibration point | 7 |
| Minimum value | 0.1 |
| Repeatability | ≤ 1 % |
| Error | ± 8 % ( ± 2.5 % F.S ) |
| Measurement range | 0 ~ 100 100 ~ 400 |
| Calibration point | 5 |
| Minimum value | 0.01 0.1 |
| Repeatability | ≤ 0.5 % |
| Error | ± 6 % ( ± 2 % F.S ) |
