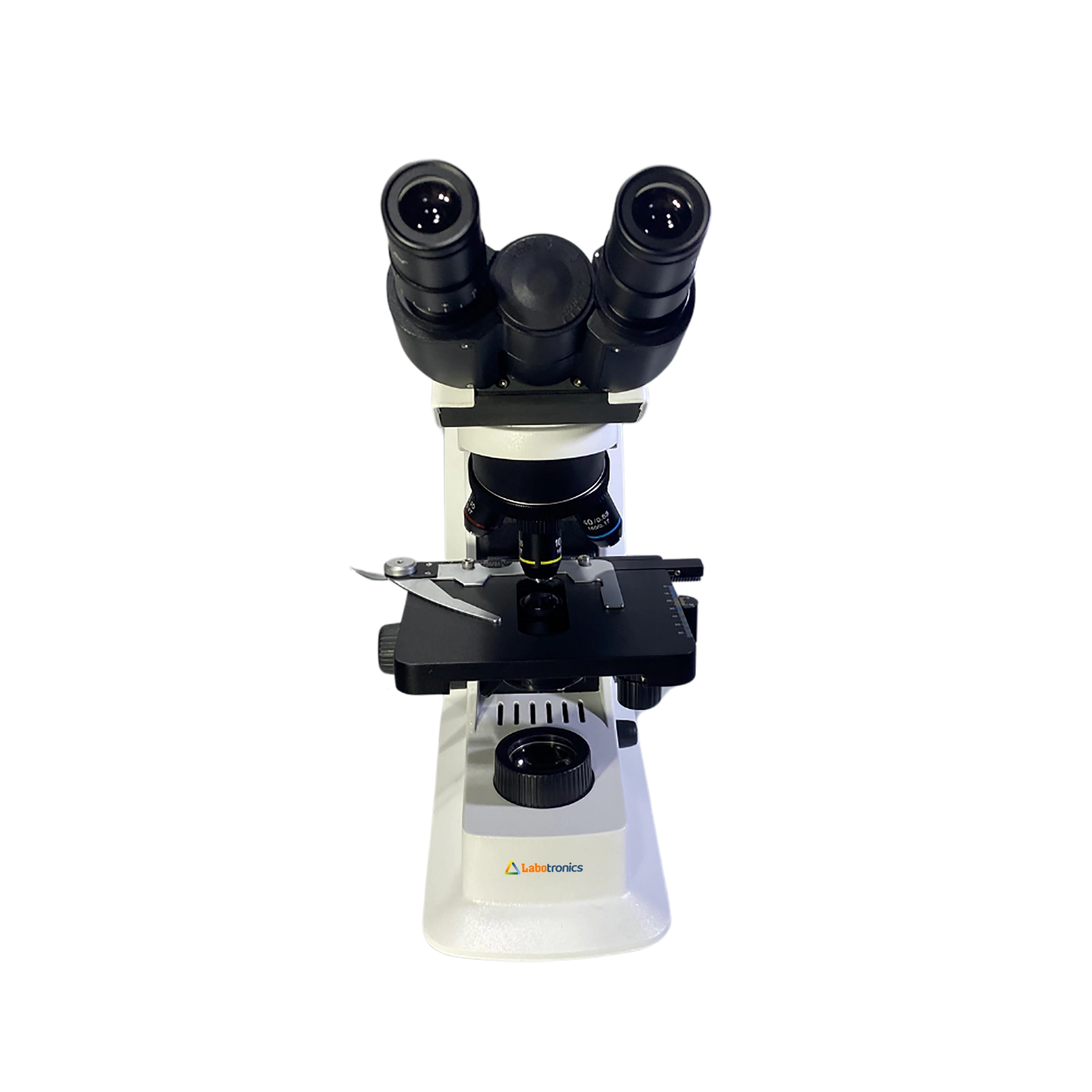

Biological Microscope LB-62BIM

Biological Microscope LB-62BIM

Biological microscope LB-62BIM is an instrument with high quality optical system for superior specimen analysis. Aspheric system provides bright and convenient illumination for examination. LED illumination system enables specimen viewing with their natural colours. Various optional accessories upgrade unit and making it more flexible for advanced applications.

Request Quote Download Catalog

Specifications

Optical system Finite optical system
Viewing head Seidentopf Binocular
Viewing head inclination Inclined at 30°, 360° rotatable
Interpupillary distance 48 mm ~ 75 mm
Eyepiece WF10X/18 mm

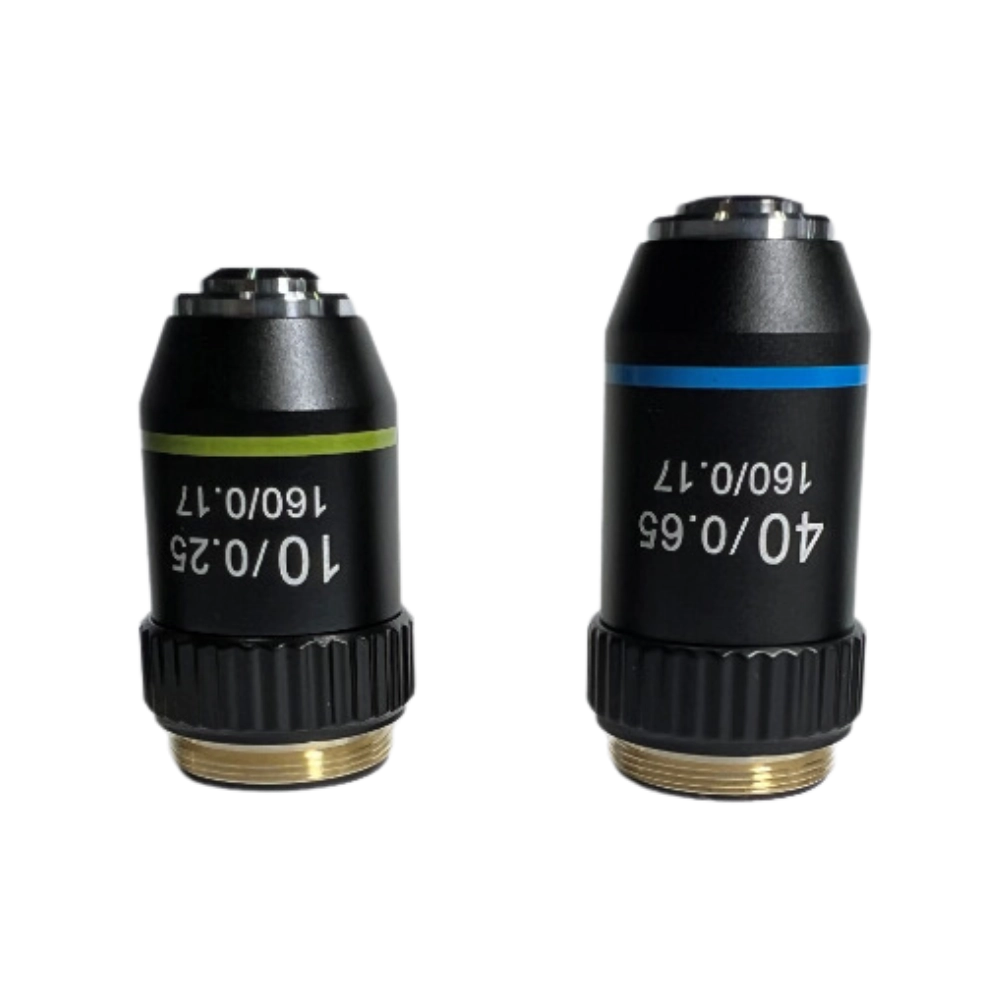

Objective Plan achromatic objective 4X, 10X, 40X/0.65 (S), 100X/1.25 (Oil) (S)
Nosepiece Backward Quadruple
Stage Double layer mechanical stage
Size: 145 mm x 140 mm ; Cross Travel: 76 x 52 mm
Scale 0.1 mm ; Two slide holder
Focusing Coaxial coarse and fine focusing knobs
Travel range:26 mm ; Scale:2 µm
Condenser Abbe condenser NA1.25 with Iris diaphragm
Illumination 3W LED Illumination Systems, brightness adjustable
Dimension 420 x 280 x 450 mm
Weight 6.5 kgs

Features

  • Aspheric system reduces spherical aberration
  • Back handle and observing hole for convenient operation
  • Coaxial coarse and fine focusing adjusting knobs
  • Backward nosepiece for quick access to slides
  • Finite optical system

Applications

Used in academic institutes, research, physiology, biology, pathology, bacteriology, medical laboratories, industrial laboratories for sample analysis, to observe cell, tissues and other specimens.

Optional Accessories

Accessory No Accessory Specification
62BIMA1 Eyepiece WF16X/13mm
62BIMA2 Eyepiece Reticule Eyepiece WF10X/18mm (0.1mm)
62BIMA3 Eyepiece Reticule Eyepiece WF10X/20mm (0.1mm)
62BIMA4 Plan Achromatic Objective 20X
62BIMA5 Plan Achromatic Objective 60X
62BIMA6 Nosepiece Backward Quintuple Nosepiece
62BIMA7 Illumination 6 V/20 W halogen lamp, brightness adjustable
62BIMA8 Illumination 6 V/30 W Halogen lamp, brightness adjustable
62BIMA9 Field Diaphragm Field diaphragm
62BIMA10 Polarizing Set Analyzer and Polarizer
62BIMA11 Filter Blue
62BIMA12 Filter Green
62BIMA13 Filter Yellow
62BIMA14 Photo Adapter Nikon(Connect to Nikon Digital Single Lens Reflex)
62BIMA15 Photo Adapter Canon(Connect to Canon Digital Single Lens Reflex)
62BIMA16 Video Adapter 0.47X C-Mount (Focus adjustable)
62BIMA17 Video Adapter 1X C-Mount
62BIMA18 Mirror Reflect Mirror
