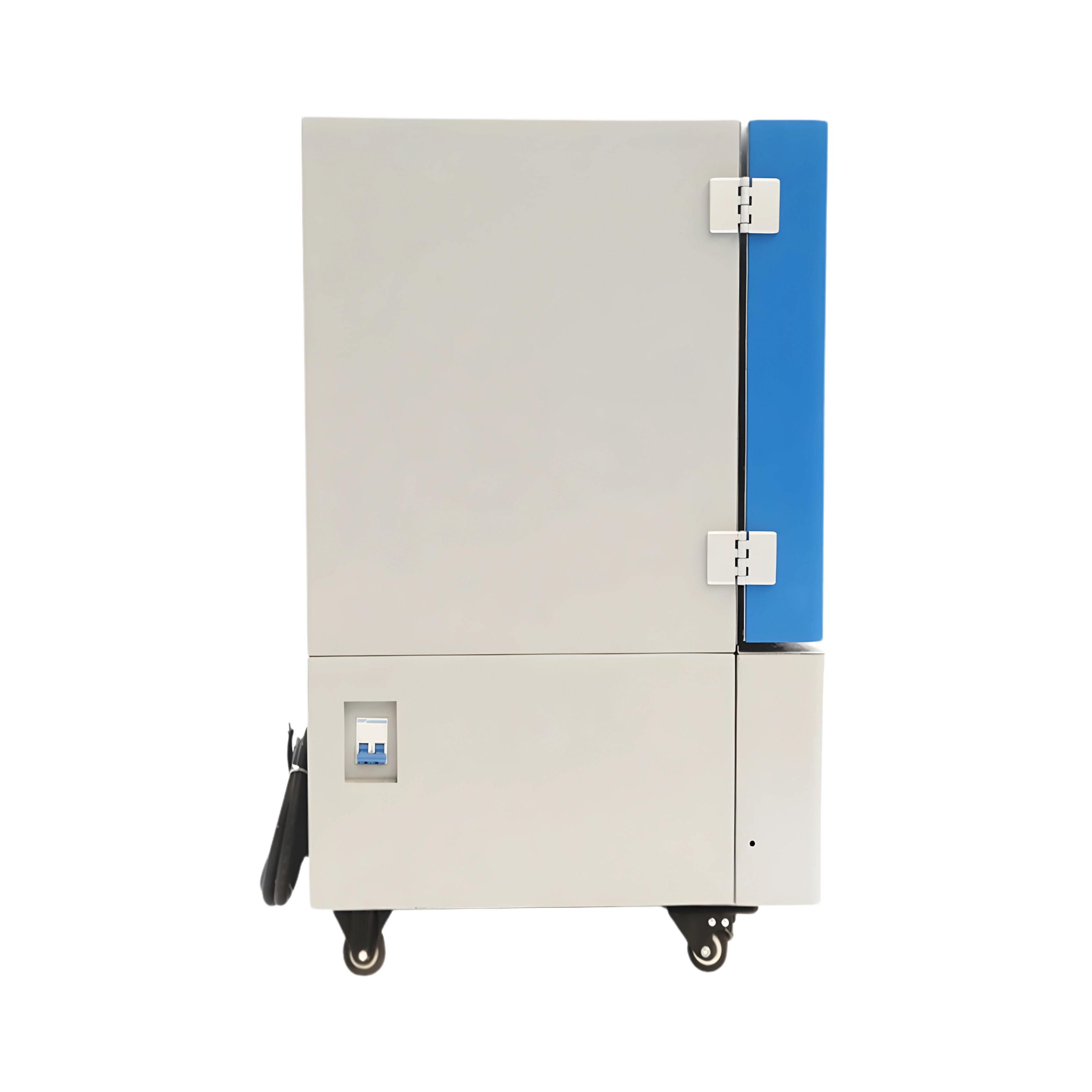

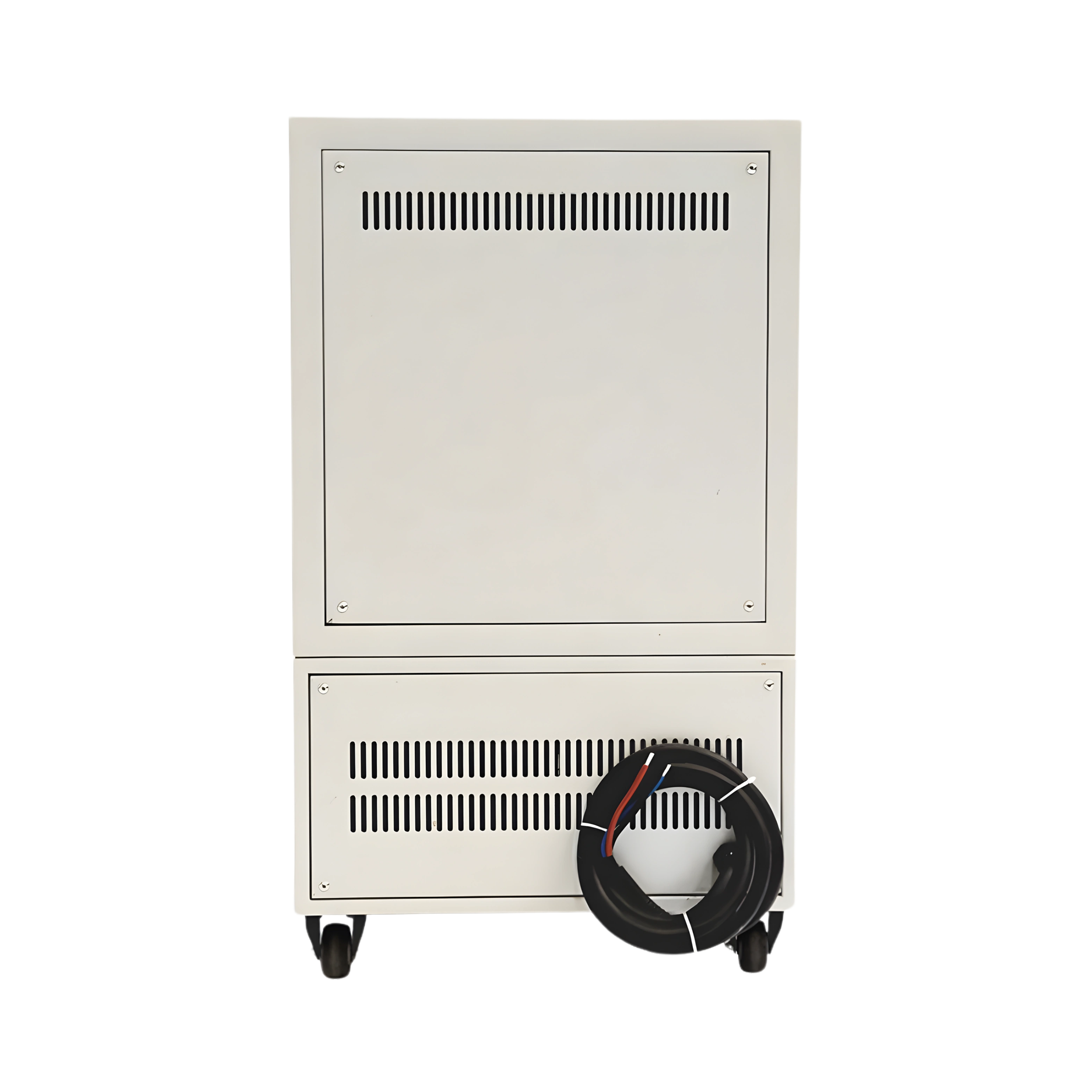

Muffle Furnace LB-10MFF is a 7.2 L capacity comprised unit. Features 1000°C of temperature with iron chromium aluminum alloy heating and nickel silicone thermocouple. With high temperature resistant silicone carbide working chamber and heat insulated thickened steel plated structure, ensure stability and durability of the product.
Request Quote Download CatalogSpecifications
Capacity | 7.2 L |
Temperature | 1000°C |
Heating element | Ferrochrome aluminum alloy |
Thermocouple | Nickel silicone |
Chamber material | Silicon carbide |
Power supply | 220 V 50/60 Hz |
Power | 4000 W |
Chamber dimension (L×W×H) | 300×200×120 mm |
Packaging dimension (L×W×H) | 730×520×710 mm |
Gross weight | 95.5 kg |
Features
Applications
Muffle furnace is used for heating treatment of small steel part, sintering of ceramics and metal, solution analysis etc. across industries, enterprises, laboratories, scientific research etc.
Standard Accessories
Clamp
Crucible
Optional Accessories
Program Controller
Capacity | 7.2 L |
Temperature | 1000°C |
Heating element | Ferrochrome aluminum alloy |
Thermocouple | Nickel silicone |
Capacity | 4.5 L |
Internal dimensions | 150 x 300 x 100 mm |
External dimensions | 420 x 540 x 570 mm |
Maximum temperature range | 1100 °C |
Capacity | 12 L |
Internal dimensions | 200 x 300 x 200 mm |
External dimensions | 480 x 550 x 680 mm |
Maximum temperature range | 1100 °C |
Capacity | 14 L |
Internal dimensions | 250 x 350 x 160 mm |
External dimensions | 530 x 600 x 640 mm |
Maximum temperature range | 1100 °C |
Capacity | 27 L |
Internal dimensions | 300 x 300 x 300 mm |
External dimensions | 580 x 590 x 780 mm |
Maximum temperature range | 1100 °C |
Capacity | 64 L |
Internal dimensions | 400 x 400 x 400 mm |
External dimensions | 1000 x 720 x 870 mm |
Maximum temperature range | 1100 °C |
Capacity | 3 L |
Internal dimensions | 130 x 220 x 110 mm |
External dimensions | 300 x 370 x 420 mm |
Maximum temperature range | 850 °C |
Capacity | 5 L |
Internal dimensions | 150 x 260 x 130 mm |
External dimensions | 320 x 410 x 440 mm |
Maximum temperature range | 850 °C |
Maximum temperature | 1200 ℃ |
Working temperature | 1100 ℃ |
Temperature controller | Digital PID controller (Program: 30 segment) |
Temperature control accuracy | ± 1℃ |
