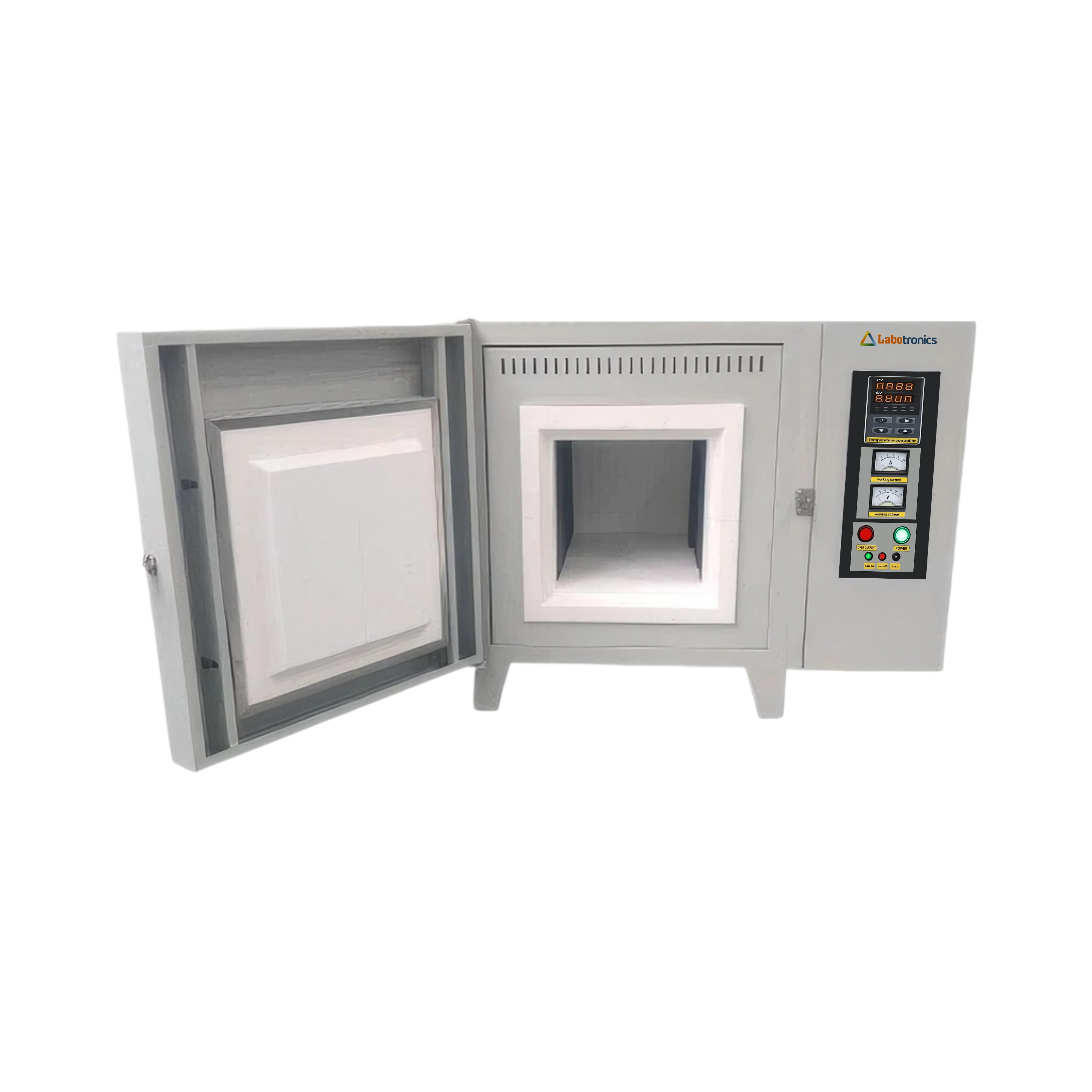

Muffle Furnace LB-17MFF operates efficiently up to 1300°C and reaches a maximum temperature of 1400°C. It features a 36-liter capacity, enabling consistent thermal processing for material testing, sintering, and heat treatment applications. It includes dual-side SiC heating elements, providing uniform heat distribution throughout the chamber. Our muffle furnace is equipped with an S-type thermocouple, enabling accurate temperature measurement.
$ 3937.5
Download CatalogSpecifications
| Capacity | 36 L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 20℃/min |

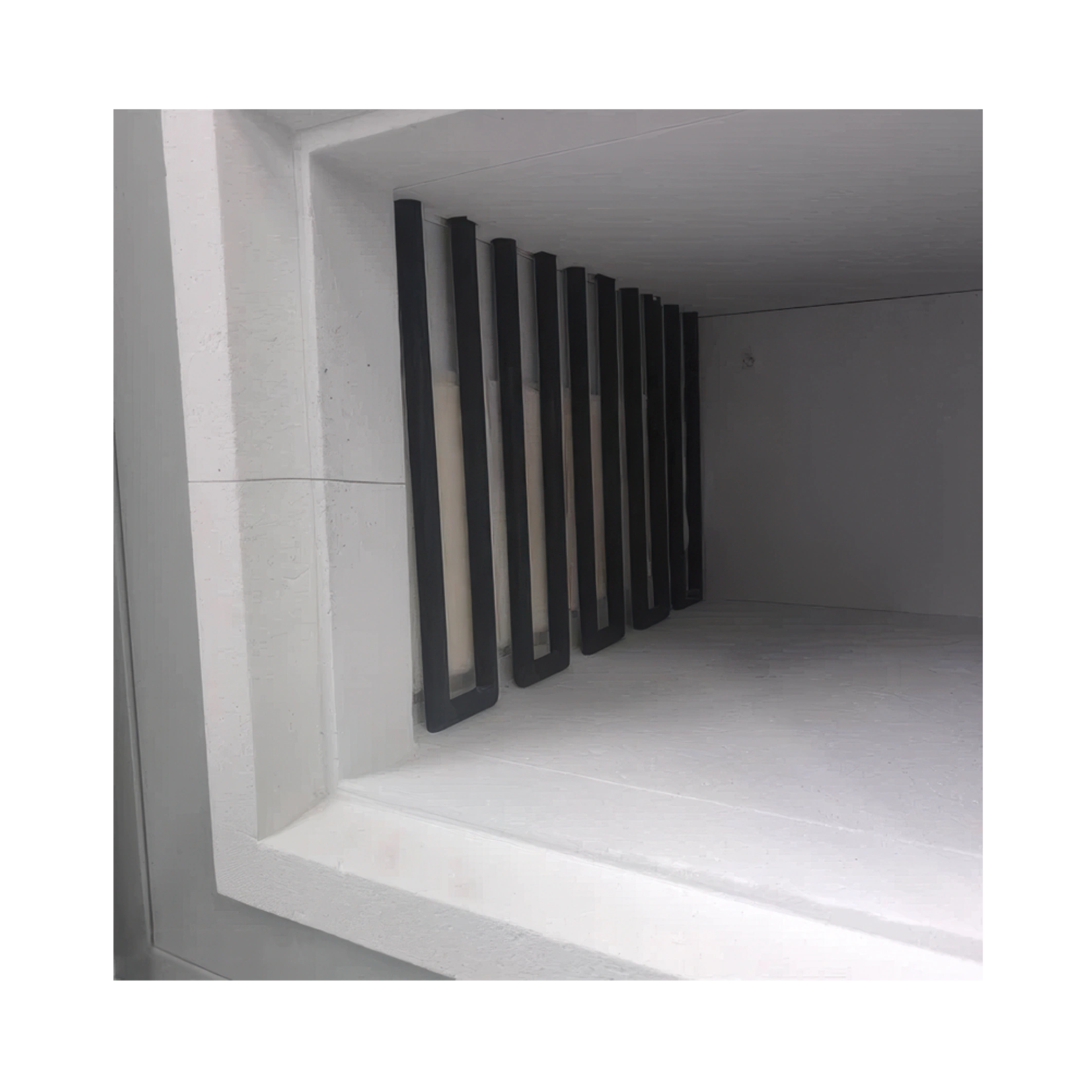

| Heating Element | SiC heating element |
| Thermocouple | S type |

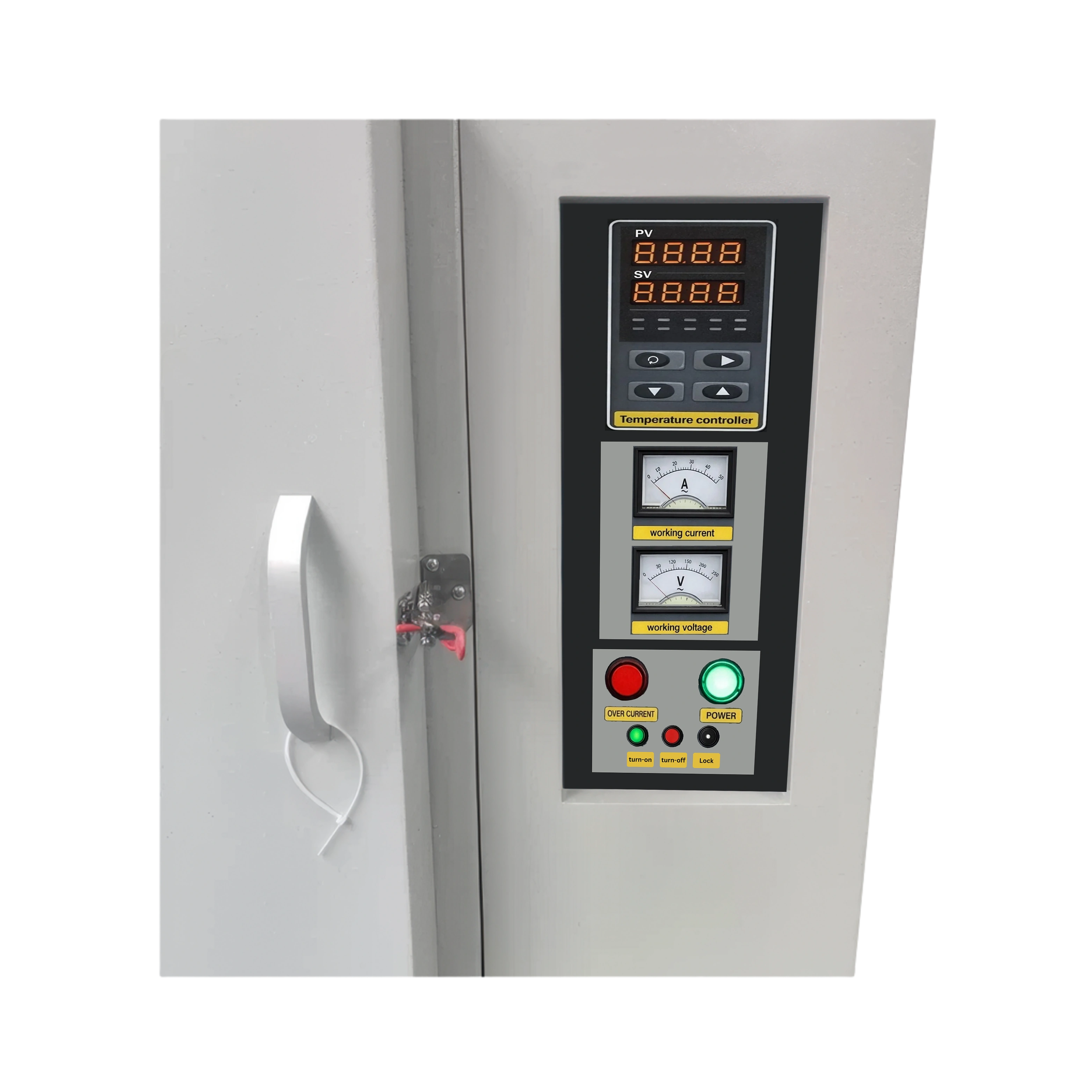

| Temperature Controller | Intelligent PID controller |
| Chamber Material | 1600°C Al₂O₃ ceramic fiber refractory chamber |
| Power Consumption | 16 kW |
| Power Supply | 380V/ 2 phase |
| Internal Dimension (D × W × H) | 400 × 300 × 300 mm |
| Packaging Dimension | 955 × 720 × 1280 mm |
| Weight | 180 kg |
Features
Applications
Muffle Furnace LB-17MFF is used for ashing, sintering, and heat treatment in high-temperature material testing. It is widely applied in material science, chemical analysis, metallurgy, ceramics, electronics, environmental research, and quality control applications.
Frequently asked questions For Muffle Furnace
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
