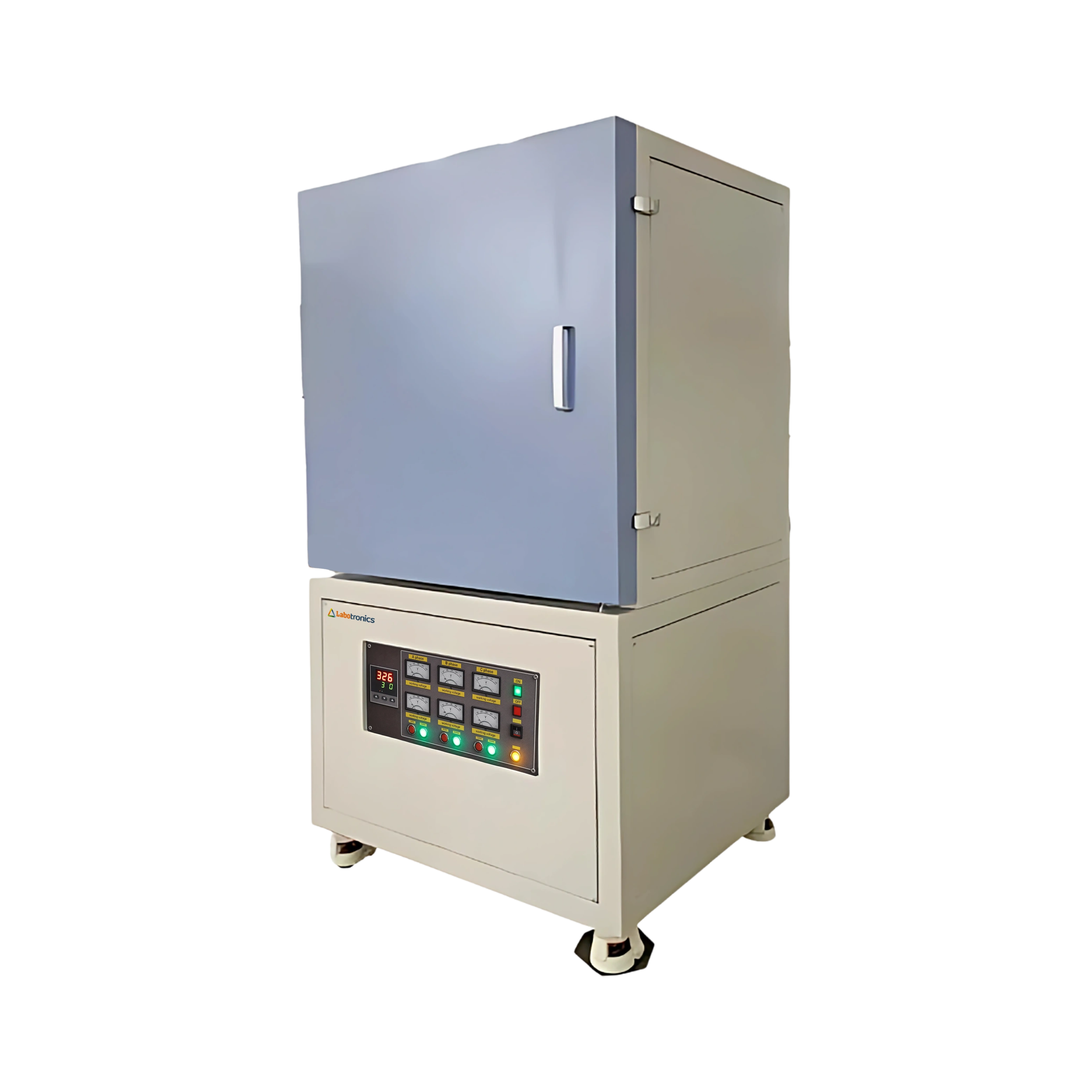

Muffle Furnace LB-23MFF comes with a capacity of 27 liters, providing ample space for efficient sample processing. It offers a working temperature of 1100 ℃ and a maximum temperature of 1200 ℃ for reliable high-temperature operations. It includes a K-type thermocouple for accurate high-temperature measurement. Our furnace is equipped with a PID controller, enabling stable and programmable operation.
$ 5625
Download CatalogSpecifications
| Capacity | 27 L |
| Working Temperature | 1100 ℃ |
| Maximum Temperature | 1200 ℃ |
| Temperature Control Accuracy | ± 1 ℃ |
| Heating Rate | 0 to 20 ℃/min |
| Heating Element | Resistance wire |
| Thermocouple Sensor | Type K |
| Temperature Controller | PID controller (50 programmable segments) |
| Power Consumption | 9 kW |
| Power Supply | 220 V, 50 Hz |
| Dimension | 300 × 300 × 300 mm |
| Packaging Dimension | 810 × 780 × 1410 mm |
| Net Weight | 190 kg |
| Gross Weight | 222 kg |
Features
Multi-layer insulation
Safety protection system
Over-temperature alarm
Uniform heat distribution
Energy efficient design
Auto-tune function
Overload protection
Standard Accessories
High temperature gloves × 1 pair
Operational book × 1
Crucible clip × 1
Optional Accessories
Aluminium Crucible
K type thermocouple
Furnace Furniture
Observation Hole
Gas Vent
Touch Screen
Applications
Muffle Furnace LB-23MFF is suitable for high-temperature material testing, sintering, and heat treatment processes. It is widely used in research labs, universities, and industrial facilities.
Frequently asked questions For Muffle Furnace
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
