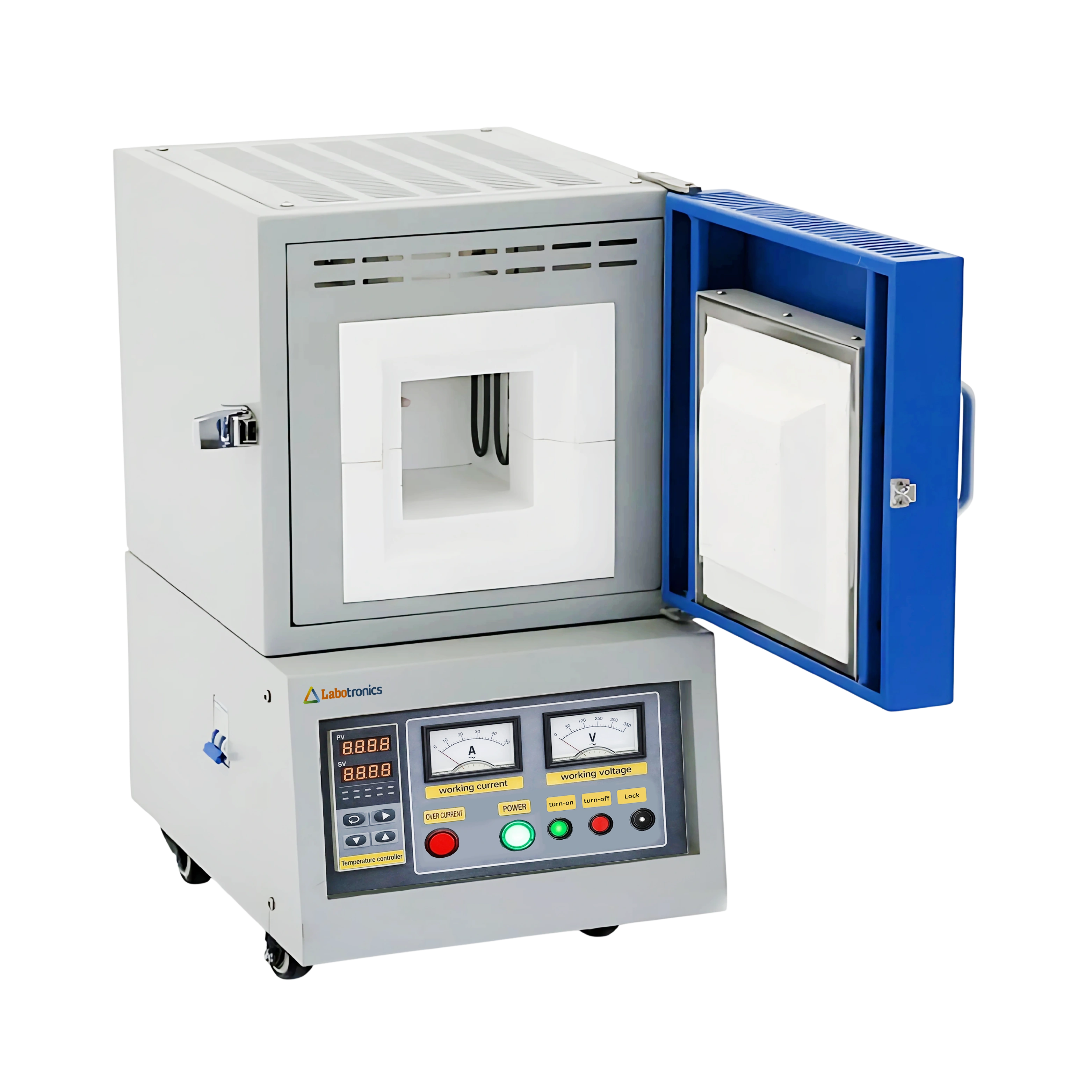

Muffle Furnace LB-18MFF reaches a maximum temperature of 1700°C and offers a 1L chamber capacity, ensuring precise sintering and high-temperature heat treatment. It incorporates a B-type thermocouple for accurate and stable thermal feedback. It features a double-layer air-cooled outer structure, enhancing operational safety and minimizing surface heat. Our furnace has an intelligent PID temperature controller, enabling automatic regulation of heating cycles.
$ 3400
Download CatalogSpecifications
| Capacity | 1 L |
| Working Temperature Range | 0 to 1600℃ |
| Maximum Temperature | 1700℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 10℃/min (Adjustable) |
| Heating Element | Mosi2 heating element |
| Thermocouple | B type |
| Temperature Controller | Intelligent PID controller |
| Chamber Material | High-quality alumina microcrystalline fiber material |
| Power Consumption | 2 kW |
| Power Supply | 220V /Single phase (1P) |
| Internal Dimension (D × W × H) | 100 × 100 × 100 mm |
| External Dimension (D × W × H) | 425 × 320 × 568 mm |
| Packaging Dimension | 565 × 425 × 810 mm |
| Weight | 66 kg |
Features
Adjustable heating rate
MoSi₂ heating element
Alumina fiber insulation
Air-cooled housing
Programmable temperature profiles
Lightweight construction
Applications
Muffle Furnace LB-18MFF is used for high-temperature processes such as sintering, annealing, and ashing of materials. It is widely used in research laboratories, dental labs, ceramic industries, and materials science centers.
Frequently asked questions For Muffle Furnace
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
