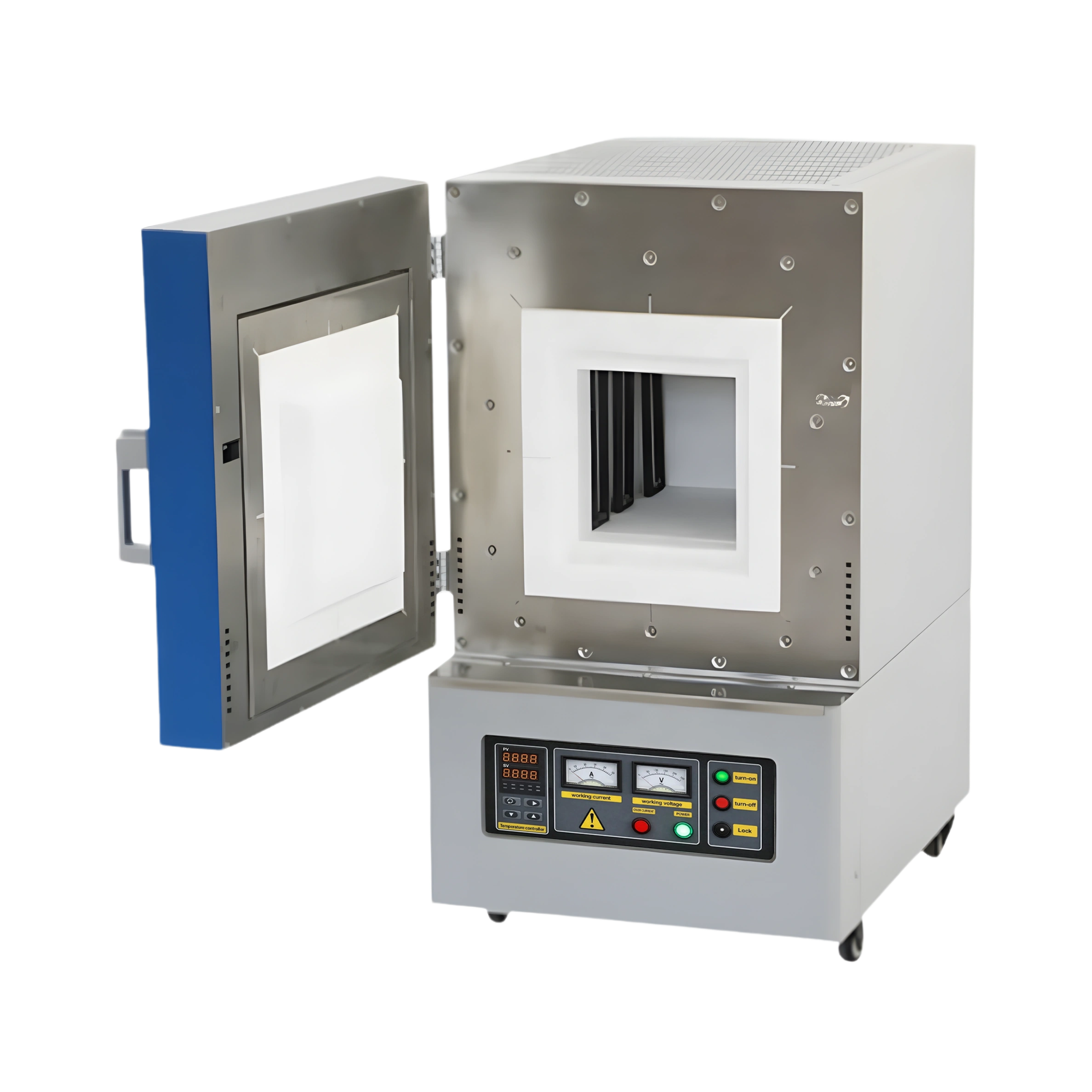

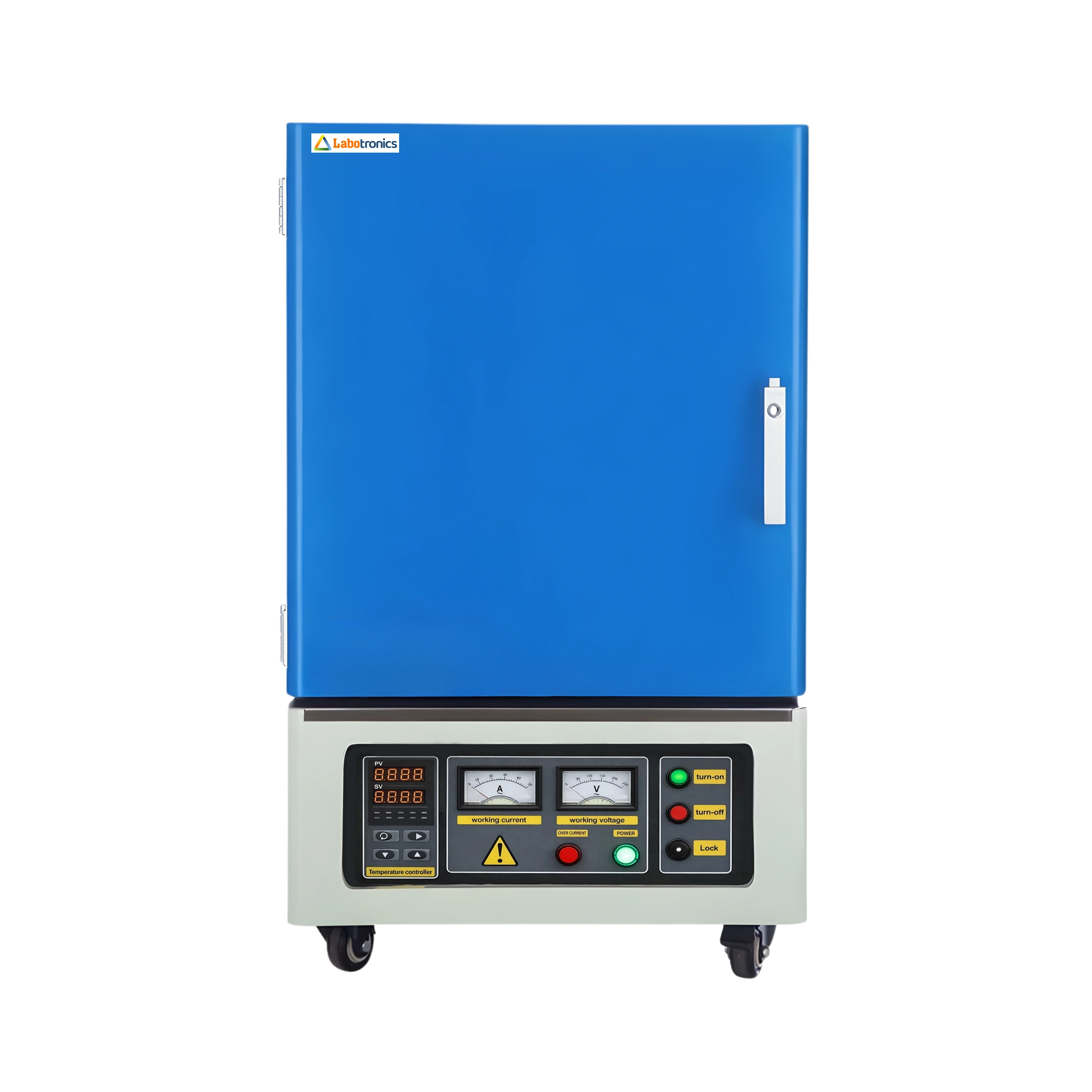

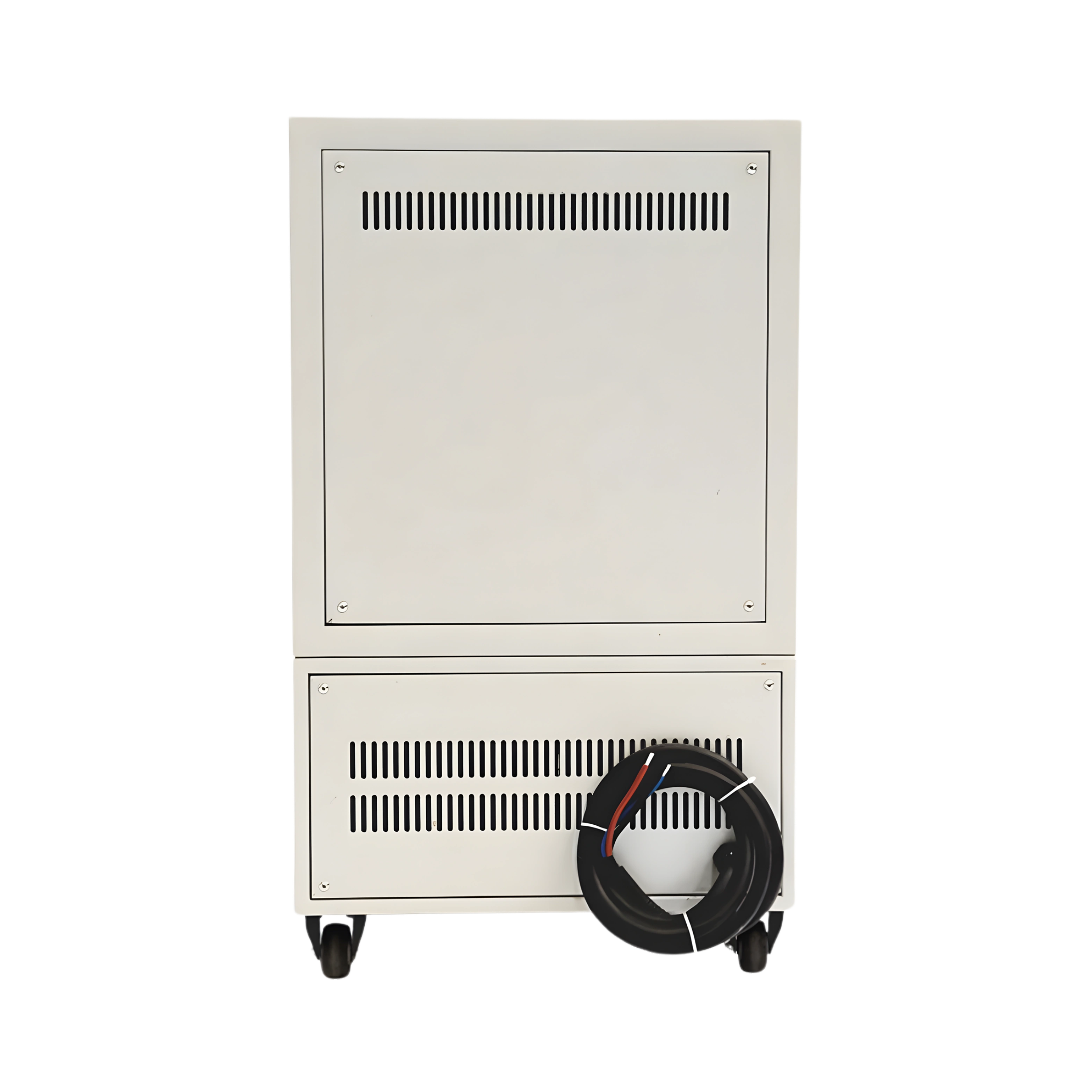

Muffle Furnace LB-12MFF has a capacity of 12 liters and operates efficiently at temperatures up to 1200℃, ensuring precise material heating and testing. The intelligent temperature controller supports 30 programmable segments for accurate thermal cycles. The adjustable heating rate from 0 to 30℃/min offers flexibility for controlled heating processes. Our muffle furnace has an integrated K-type thermocouple, allowing for accurate and stable temperature monitoring.
$ 3550
Download CatalogSpecifications
| Capacity | 12 L |
| Working Temperature Range | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 30℃/min (Adjustable) |
| Heating Element | HRE Alloy Resistance Wire |
| Thermocouple | K type |
| Temperature Controller | Intelligent PID controller |
| Chamber Material | Advanced high-quality alumina microcrystalline fiber material |
| Power Consumption | 6 kW |
| Power Supply | 220V, Single Phase (1P) |
| Internal Dimensions (D × W × H) | 300 × 200 × 200 mm |
| External Dimension (D × W × H) | 670 × 530 × 731 mm |
| Packaging Dimension | 865 × 625 × 1105 mm |
| Weight | 127 kg |
Features
Standard Accessories
High-temperature Gloves × 1 pair
Crucible Clip × 1 pc
Door Block × 1 pc
Tools × 1 set
Applications
Muffle Furnace LB-12MFF is used for precise material testing, sintering, and high-temperature heat treatment. It is widely used in laboratories, research institutes, and industrial manufacturing.
Frequently asked questions For Muffle Furnace
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
