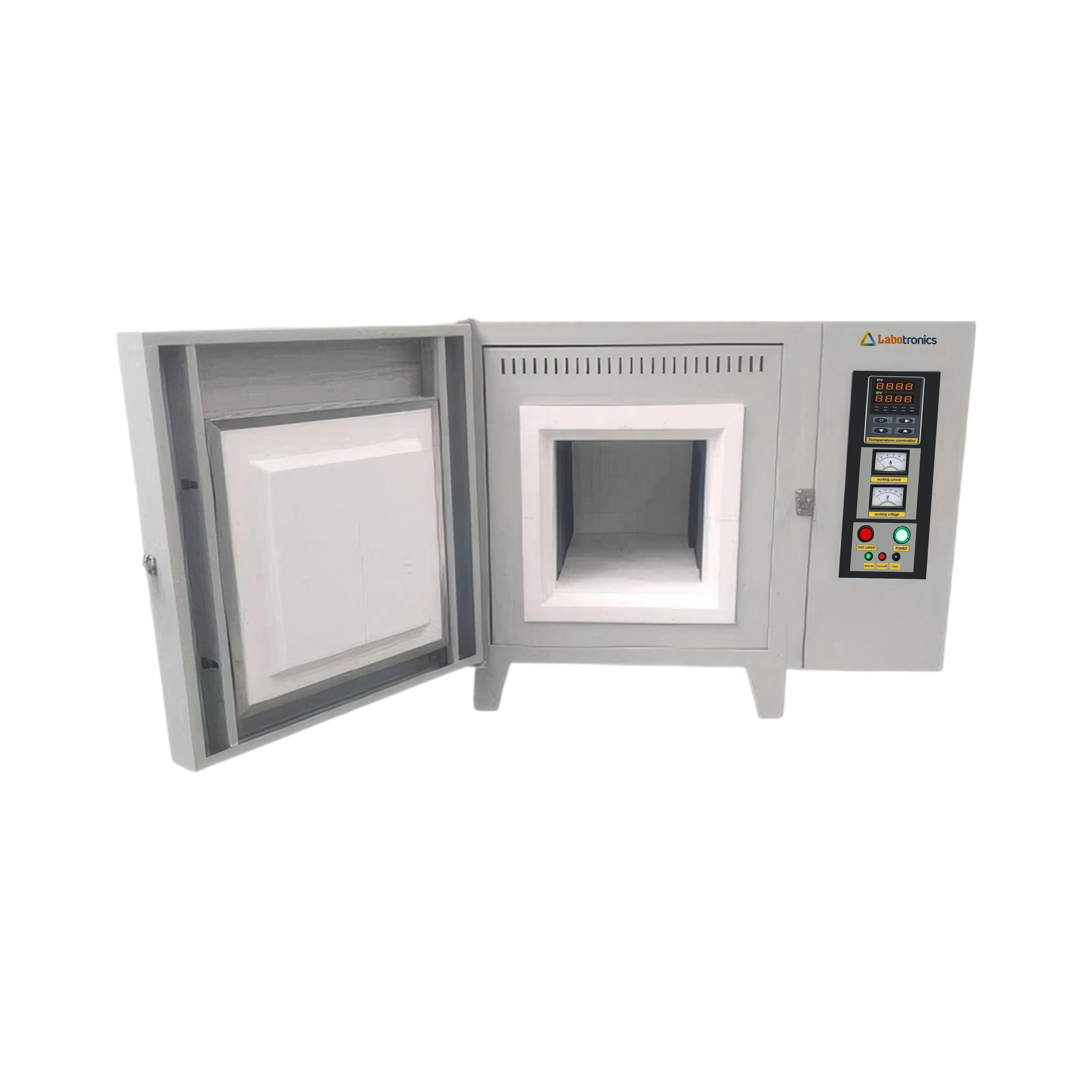

Muffle Furnace LB-15MFF offers a 4.5L chamber capacity and operates up to 1300℃ for precise thermal processing. It is equipped with a silicon carbide (SiC) heating element capable of achieving a maximum temperature of 1400°C. It supports 30 programmable temperature-time segments, enabling flexible and accurate multi-step heating. The muffle furnace integrates an S-type thermocouple, ensuring stable and precise temperature control.
$ 3200
Download CatalogSpecifications
| Capacity | 4.5L |
| Working Temperature Range | 0 to 1300℃ |
| Maximum Temperature | 1400℃ |
| Temperature Precision | ±1℃ |
| Heating Rate | 0 to 20℃/min |

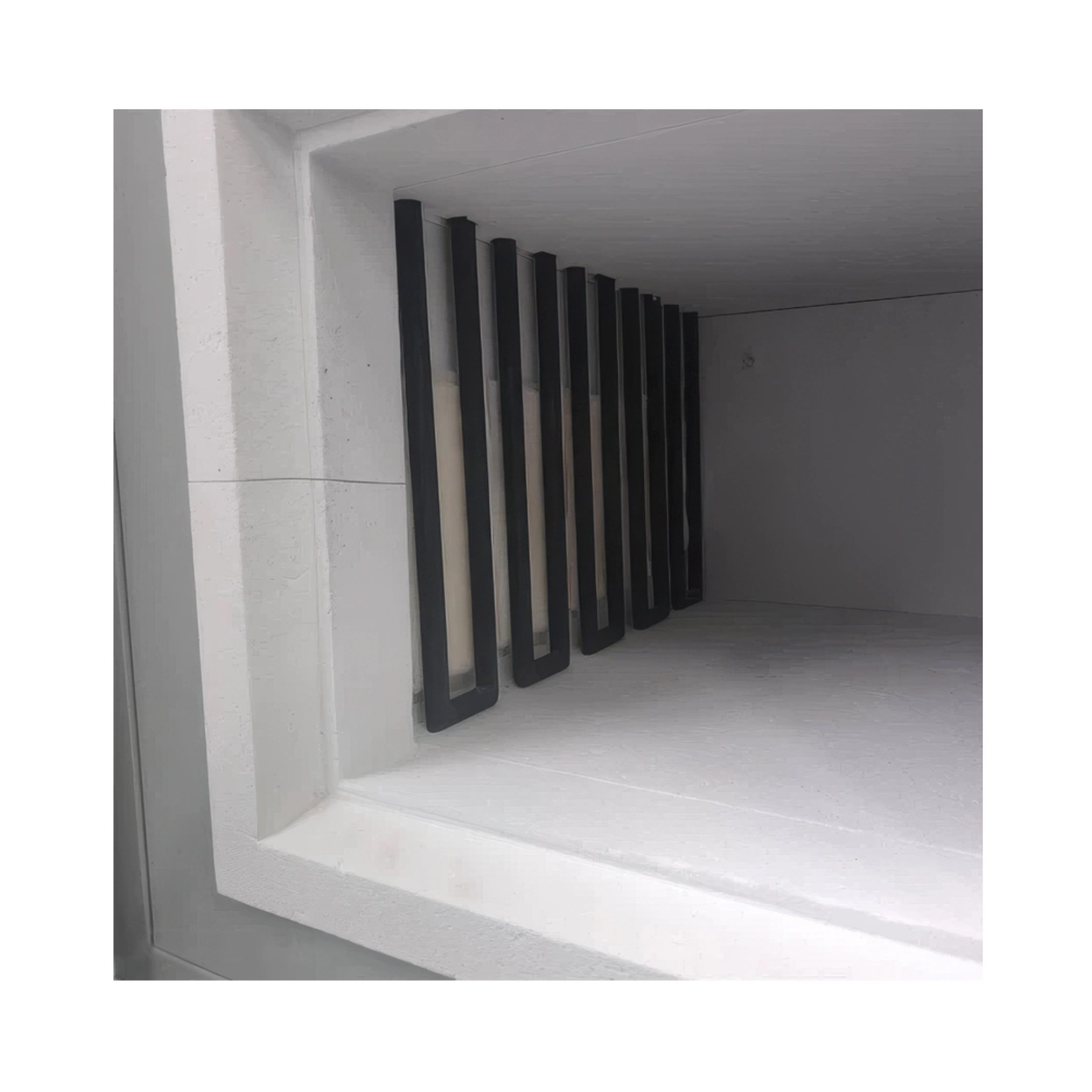

| Heating Element | SiC heating element |
| Thermocouple | S type |
| Temperature Controller | Intelligent PID controller |
| Chamber Material | 1600°C Al₂O₃ ceramic fiber refractory chamber |
| Power Consumption | 4 kW |
| Power Supply | 220V, Single Phase (1P) |
| Internal Dimension (D × W × H) | 200 × 150 × 150 mm |
| Packaging Dimension | 755 × 570 × 1010 mm |
| Weight | 94 kg |
Features

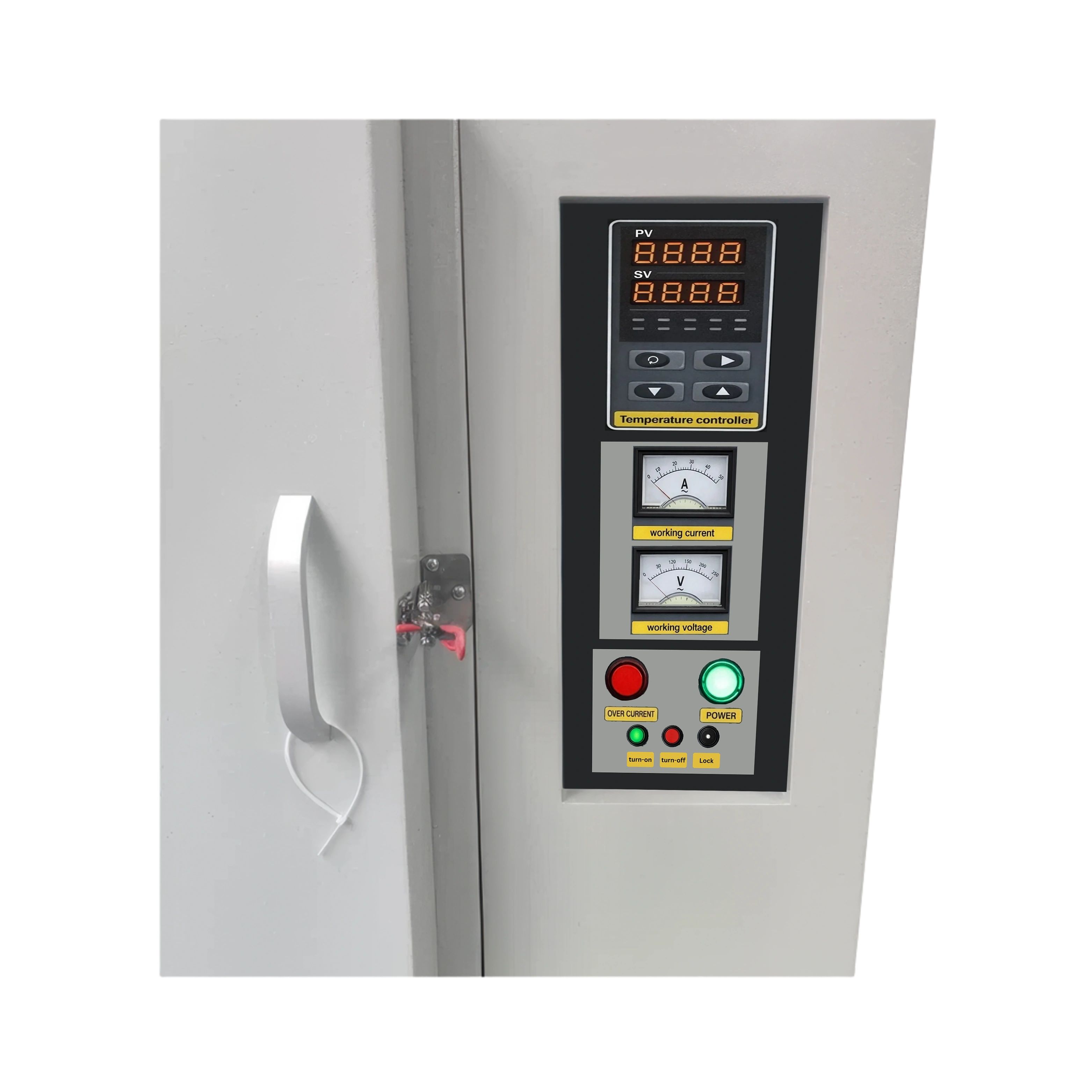

PID temperature controller
Integrated voltmeter and ammeter
Fast heating rate
Dual-side heating
Ceramic fiber chamber
Over-temperature protection
Applications
Muffle Furnace LB-15MFF is used for high-temperature heat treatment, ashing, sintering and material testing. It is widely applied in laboratories, research institutes, metallurgy, ceramics, and quality control departments.
Frequently asked questions For Muffle Furnace
1. What are muffle furnaces used for?
Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.
2. Does Labotronics offer different models of muffle furnaces?
Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.
3. Are your muffle furnaces easy to operate?
Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.
4. What safety features are included in your muffle furnaces?
Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.
