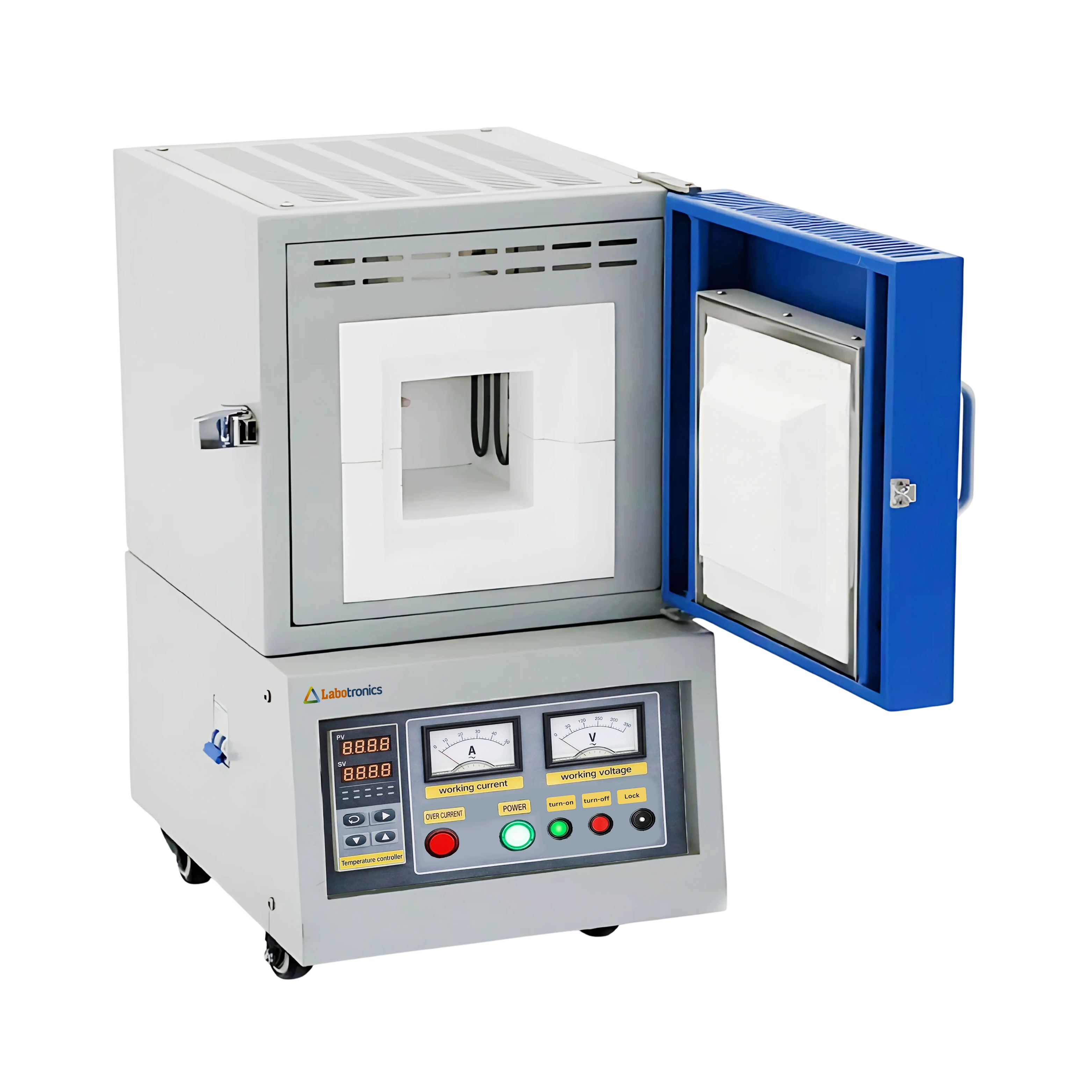

Muffle Furnace LB-22MFF

Name: Muffle Furnace LB-22MFF
Brand: Labotronics
SKU: LB-22MFF
Rating: 4.9 (520 reviews)

Muffle Furnace LB-22MFF has high-quality high-alumina polycrystalline ceramic fiber resistant to rapid cold and heat. Features stepped splicing structure frame for enhanced stability and durability. Incorporated with automatic heating and cooling for efficient temperature control. It includes partial and over-temperature protection, burnout, over-current, and over-pressure protection.

$ 3612.5

Download Catalog

Specifications

Maximum temperature	1200 ℃
Working temperature	1100 ℃
Temperature controller	Digital PID controller (Program: 30 segment)
Temperature control accuracy	± 1℃
Heating	Resistance wire
Heating rate	0 to 20 ℃/min
Thermocouple sensor	Type K
Heating method	Heating on both sides
Insulation	Ceramic fiber
Display mode	Color LED display
Power	6 KW
Power supply	Single phase 220 V
Internal dimensions	300 × 200 × 200 mm
External dimensions	700 × 550 × 895 mm
Weight	94 Kg

Features

Integrated compact design provides uniform force during heating
Muffle furnaces ensure safety with multiple temperature safeguards
Temperature compensation to adjust the systems performance
PID controlled temperature
LED display for visualization
Auto-tuning function
Simple and easy to use

Standard Accessories

Crucible tong

Anti-high temperature gloves

Applications

Muffle Furnace is widely used in industries and biotechnology research laboratories in providing heat treatment, melting of the glass, melting the metal and casting molding.

Get Quote

1. What are muffle furnaces used for?

Our muffle furnaces are used for high-temperature heating in laboratories and industrial settings. It’s ideal for applications such as ashing, heat treatment, material testing, and ceramics processing.

2. Does Labotronics offer different models of muffle furnaces?

Yes, Labotronics offers a wide range of muffle furnace models with different chamber sizes, temperature capacities, and control options to accommodate various laboratory and industrial requirements.

3. Are your muffle furnaces easy to operate?

Absolutely. Labotronics furnaces are designed with user-friendly digital controllers for precise temperature control and simple operation.

4. What safety features are included in your muffle furnaces?

Labotronics furnaces typically include features such as over-temperature protection, ceramic insulation, and door safety switches.

Muffle Furnace LB-11MFF

Capacity	4.5 L
Working Temperature Range	0 to 1100℃
Maximum Temperature	1200℃
Temperature Precision	±1℃
Heating Rate	0 to 30℃/min (Adjustable)

$ 3125

Muffle Furnace LB-10MFF

Capacity	1 L
Working Temperature Range	0 to 1100℃
Maximum Temperature	1200℃
Temperature Precision	±1℃
Heating Rate	0 to 30℃/min (Adjustable)

$ 2375

Muffle Furnace LB-17MFF

Capacity	36 L
Working Temperature Range	0 to 1300℃
Maximum Temperature	1400℃
Temperature Precision	±1℃
Heating Rate	0 to 20℃/min

$ 3937.5

Muffle Furnace LB-30MFF

Maximum Temperature	1100℃
Temperature Accuracy	±2℃
Heating Rate	≤ 70℃/min
Heating Element	Dental silicon carbide rods
Program Stage	30 stages

$ 2487.5

Muffle Furnace LB-19MFF

Capacity	4.5 L
Working Temperature Range	0 to 1600℃
Maximum Temperature	1700℃
Temperature Precision	±1℃
Heating Rate	0 to 10℃/min (Adjustable)

$ 4000

Muffle Furnace LB-18MFF

Capacity	1 L
Working Temperature Range	0 to 1600℃
Maximum Temperature	1700℃
Temperature Precision	±1℃
Heating Rate	0 to 10℃/min (Adjustable)

$ 3400

Muffle Furnace LB-23MFF

Capacity	27 L
Working Temperature	1100 ℃
Maximum Temperature	1200 ℃
Temperature Control Accuracy	± 1 ℃
Heating Rate	0 to 20 ℃/min

$ 5625

Muffle Furnace LB-16MFF

Capacity	12 L
Working Temperature Range	0 to 1300℃
Maximum Temperature	1400℃
Temperature Precision	±1℃
Heating Rate	0 to 20℃/min

$ 3000

Muffle Furnace LB-13MFF

Capacity	36 L
Working Temperature Range	0 to 1100℃
Maximum Temperature	1200℃
Temperature Precision	±1℃
Heating Rate	0 to 30℃/min (Adjustable)

$ 5987.5

Muffle Furnace LB-20MFF

Capacity	12 L
Working Temperature Range	0 to 1600℃
Maximum Temperature	1700℃
Temperature Precision	±1℃
Heating Rate	0 to 10℃/min (Adjustable)

$ 4781.25

Muffle Furnace LB-14MFF

Capacity	1L
Working Temperature Range	0 to 1300℃
Maximum Temperature	1400℃
Temperature Precision	±1℃
Heating Rate	0 to 20℃/min

$ 2825

Muffle Furnace LB-12MFF

Capacity	12 L
Working Temperature Range	0 to 1100℃
Maximum Temperature	1200℃
Temperature Precision	±1℃
Heating Rate	0 to 30℃/min (Adjustable)

$ 3550

Muffle Furnace LB-15MFF

Capacity	4.5L
Working Temperature Range	0 to 1300℃
Maximum Temperature	1400℃
Temperature Precision	±1℃
Heating Rate	0 to 20℃/min

$ 3200

Muffle Furnace LB-21MFF

Capacity	36 L
Working Temperature Range	0 to 1600℃
Maximum Temperature	1700℃
Temperature Precision	±1℃
Heating Rate	0 to 10℃/min (Adjustable)

$ 6750
