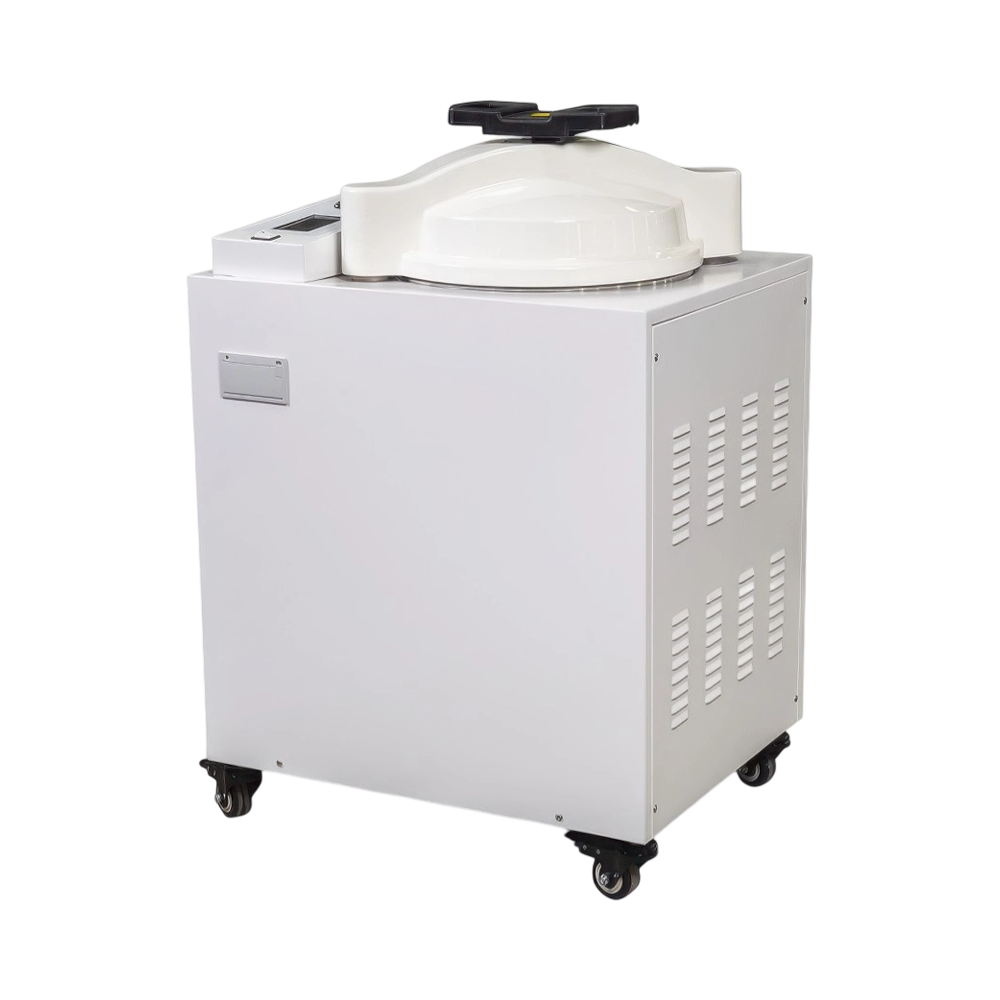

Vertical Autoclave LB-12VCA

Name: Vertical Autoclave LB-12VCA
Brand: Labotronics
SKU: LB-12VCA
Rating: 4.8 (510 reviews)

Vertical Autoclave LB-12VCA offers a 50 L capacity and operates within a temperature range of 105°C to 136°C, ensuring effective and reliable sterilization. It incorporates a counter-pressure protection mechanism that prevents deformation or damage to sensitive loads. It includes pre-programmed sterilization cycles, allowing customizable operation. The autoclave features a high-resolution touchscreen display for clear visualization of operating parameters.

$ 3687.5

Download Catalog

Specifications

Capacity	50 L
Chamber Dimension	Φ316 × 667 mm
Temperature Range	105 to 136℃
Maximum Working Temperature	136℃
Temperature Accuracy	0.1℃
Temperature Uniformity	≤ ±0.5℃
Maximum Working Pressure	0.23Mpa
Design Pressure	0.3Mpa
Design Temperature	150℃
Display	Touchscreen
Power Supply	AC220-240V,50/60Hz
Product Dimension	476 × 636 × 990 mm
Packaging Dimension	700 × 680 × 1140 mm
Net Weight	86 kg
Gross Weight	102 kg

Features

Counter-pressure protection
Uniform heat distribution
Air cooling system
Over-temperature protection
Atmospheric pressure correction
Cycle-end buzzer alert
Automatic sterilization cycle
Anti-dry heating alarm

Standard Accessories

Basket × 2 pcs
Hose × 1 pc
F₀‑Style Counter Pressure
Built-in Printer

Optional Accessories

30L Air Compressor

Applications

Vertical Autoclave LB-12VCA is used for high-pressure steam sterilization of liquid media, glassware, and other laboratory instruments. It is widely applied in laboratories, research institutes, pharmaceutical industries, and medical facilities.

1. What is the primary purpose of a Labotronics vertical autoclave?

Labotronics vertical autoclave is designed for high-efficiency steam sterilization, ensuring complete decontamination of laboratory and clinical instruments, media, and materials.

2. How does microcomputer control technology benefit Labotronics vertical autoclaves?

Labotronics vertical autoclaves use advanced microcomputer control to automate all sterilization phases, providing consistent performance with minimal operator intervention.

3. What makes the touchscreen interface on Labotronics vertical autoclaves useful?

Labotronics vertical autoclaves feature a user-friendly touchscreen interface that allows easy monitoring of temperature, pressure, and cycle progress for precise operation.

4. Do Labotronics vertical autoclaves ensure safety during operation?

Yes. Labotronics vertical autoclaves are equipped with multiple safety features including overpressure protection and automatic steam exhaust, ensuring safe use for operators.

5. How do Labotronics vertical autoclaves maintain temperature accuracy?

Labotronics vertical autoclaves provide uniform temperature distribution with precision controls, guaranteeing consistent sterilization performance across all loads.
