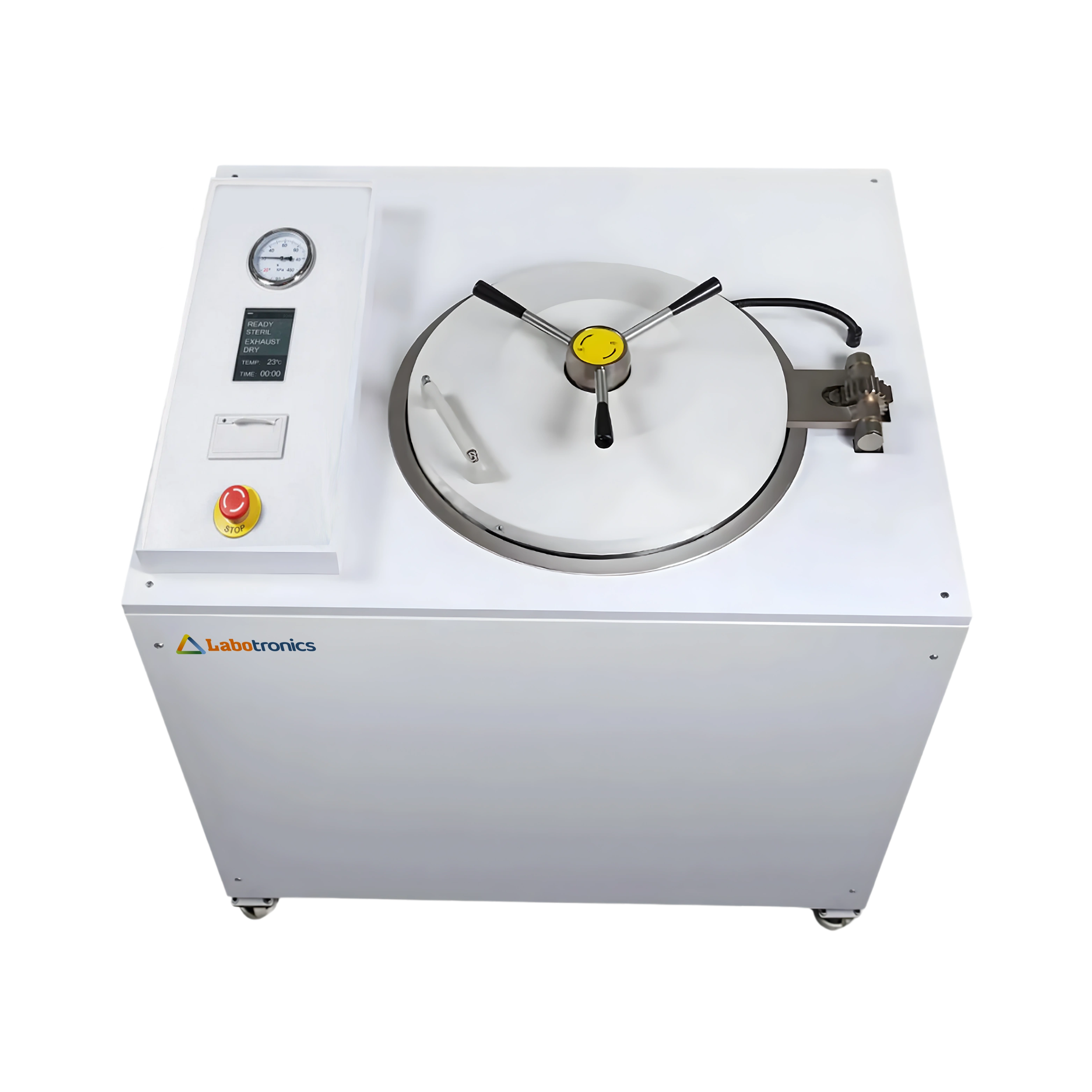

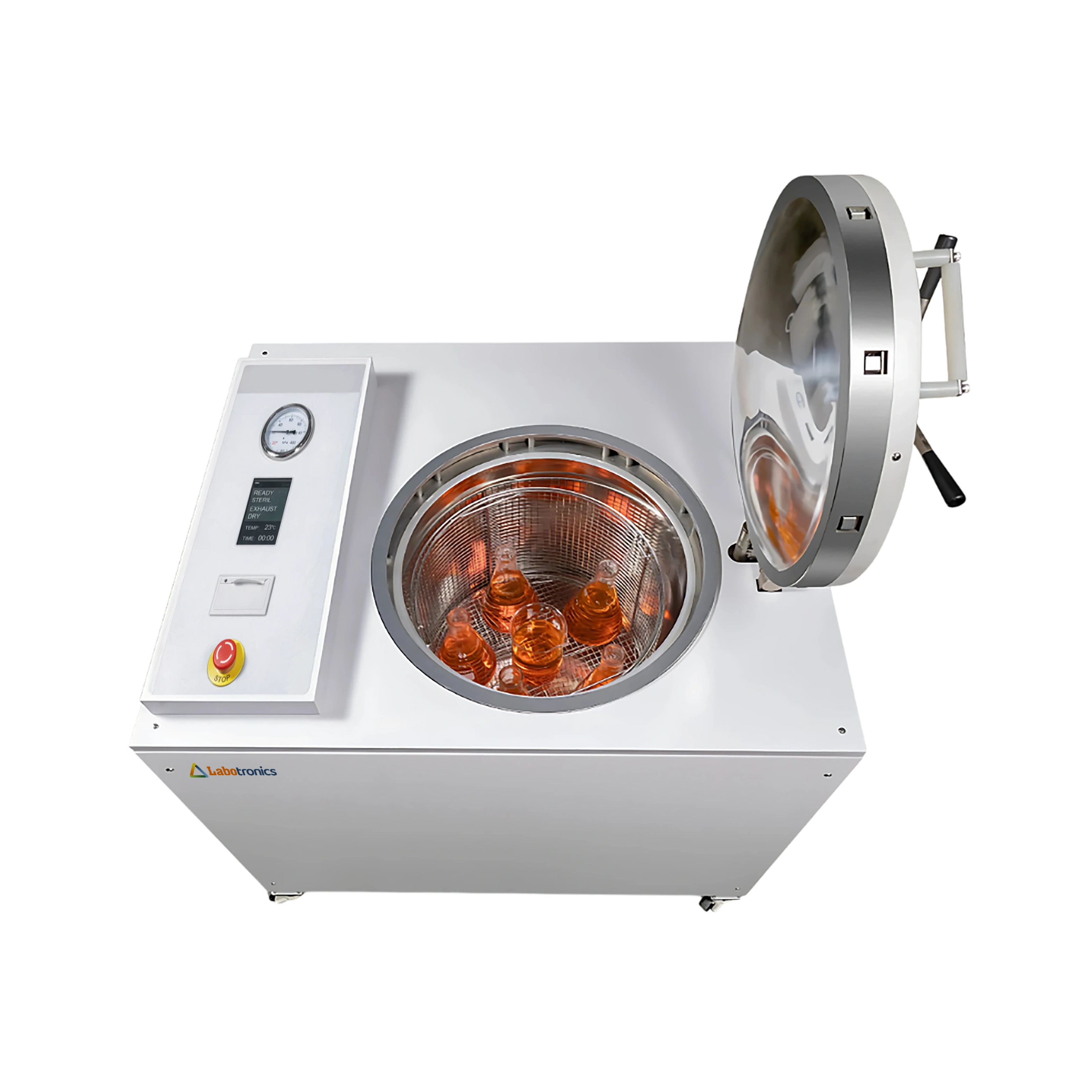

Vertical Autoclave LB-10VCA

Name: Vertical Autoclave LB-10VCA
Brand: Labotronics
SKU: LB-10VCA
Rating: 4.4 (537 reviews)

Vertical Autoclave LB-10VCA is a fully automatic unit with 120L capacity for efficient laboratory operations. It operates at a maximum working temperature of 138°C to ensure thorough sterilization. It features a built-in water tank to provide a continuous internal water supply throughout the process. Our autoclave is equipped with a touchscreen display showing the operating process status automatically.

$ 5937.5

Download Catalog

Specifications

Capacity	120 L
Maximum Working Temperature	138°C
Sterilization Temperature Range	105°C to 138°C
Maximum Working Pressure	0.23 MPa
Design Pressure	- 0.1 to 0.3 MPa
Design Temperature	150°C
Temperature Display Range	0 to 200°C
Pressure Display Range	0 to 0.4 MPa
Dissolution Temperature Range	40 to 100°C
Insulation Temperature Range	40 to 134°C
Sterilization Time	0 to 99 minutes
Display	Touchscreen
Chamber Material	SUS304 Stainless Steel
Power Consumption	9.4 kW
Power Supply	380 V, 50 Hz, 3-phase
Chamber Dimension	Φ 450 × 760 mm
Product Dimension	620 × 760 × 1190 mm
Packaging Dimension	1250 × 1070 × 1520 mm
Net Weight	145 kg
Gross Weight	250 kg

Features

Automatic process control
Multi-program sterilization
USB data interface
Cold air removal
Steam saturation control

Standard Accessories

Sterilization Baskets × 2 Pcs
Flexible temperature sensor × 1 Pcs

Applications

Vertical Autoclave LB-10VCA is used to sterilize laboratory instruments, culture media, liquids, and medical waste using high-pressure steam. It is widely applied in research laboratories, hospitals, pharmaceutical industries, and microbiology laboratories.

Get Quote

1. What is the primary purpose of a Labotronics vertical autoclave?

Labotronics vertical autoclave is designed for high-efficiency steam sterilization, ensuring complete decontamination of laboratory and clinical instruments, media, and materials.

2. How does microcomputer control technology benefit Labotronics vertical autoclaves?

Labotronics vertical autoclaves use advanced microcomputer control to automate all sterilization phases, providing consistent performance with minimal operator intervention.

3. What makes the touchscreen interface on Labotronics vertical autoclaves useful?

Labotronics vertical autoclaves feature a user-friendly touchscreen interface that allows easy monitoring of temperature, pressure, and cycle progress for precise operation.

4. Do Labotronics vertical autoclaves ensure safety during operation?

Yes. Labotronics vertical autoclaves are equipped with multiple safety features including overpressure protection and automatic steam exhaust, ensuring safe use for operators.

5. How do Labotronics vertical autoclaves maintain temperature accuracy?

Labotronics vertical autoclaves provide uniform temperature distribution with precision controls, guaranteeing consistent sterilization performance across all loads.

Vertical Autoclave LB-12VCA

Capacity	50 L
Chamber Dimension	Φ316 × 667 mm
Temperature Range	105 to 136℃
Maximum Working Temperature	136℃
Temperature Accuracy	0.1℃

$ 3687.5

Vertical Autoclave LB-11VCA

Capacity	100 L
Maximum Working Temperature	136℃
Sterilization Temperature Range	105 to 136℃
Maximum Working Pressure	0.23 MPa
Design Pressure	0.3 MPa

$ 4212.5

Vertical Autoclave LB-21VCA

Capacity	50 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2420

Vertical Autoclave LB-17VCA

Capacity	100 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 3040

Vertical Autoclave LB-27VCA

Capacity	100 L
Temperature Range	0 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 4368.75

Vertical Autoclave LB-15VCA

Capacity	50 L
Working Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2862.5

Vertical Autoclave LB-14VCA

Capacity	35 L
Working Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2487.5

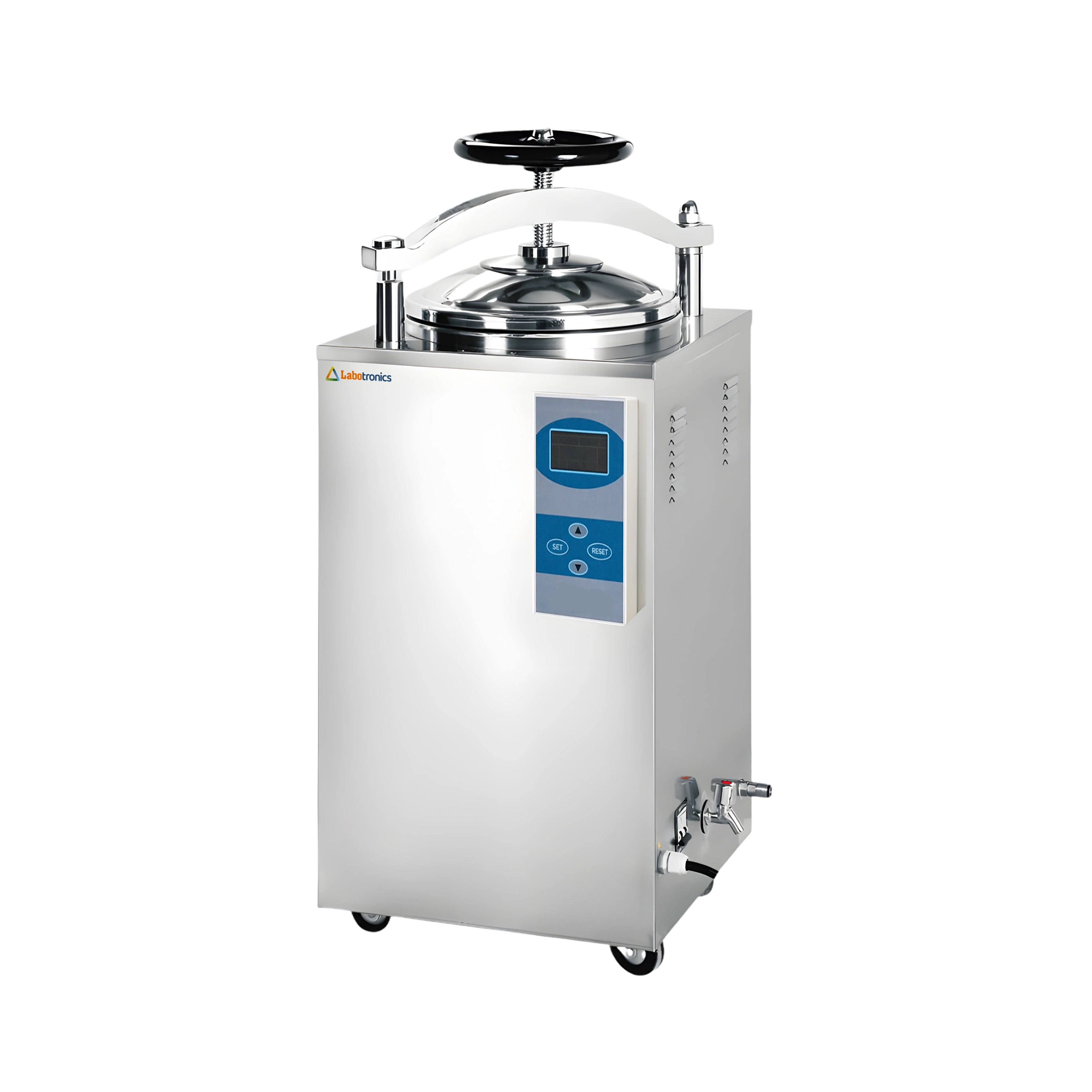

Vertical Autoclave LB-20VCA

Capacity	35 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2060

Vertical Autoclave LB-24VCA

Capacity	35 L
Temperature Range	0 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2892.5

Vertical Autoclave LB-25VCA

Capacity	50 L
Temperature Range	0 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 3652.5

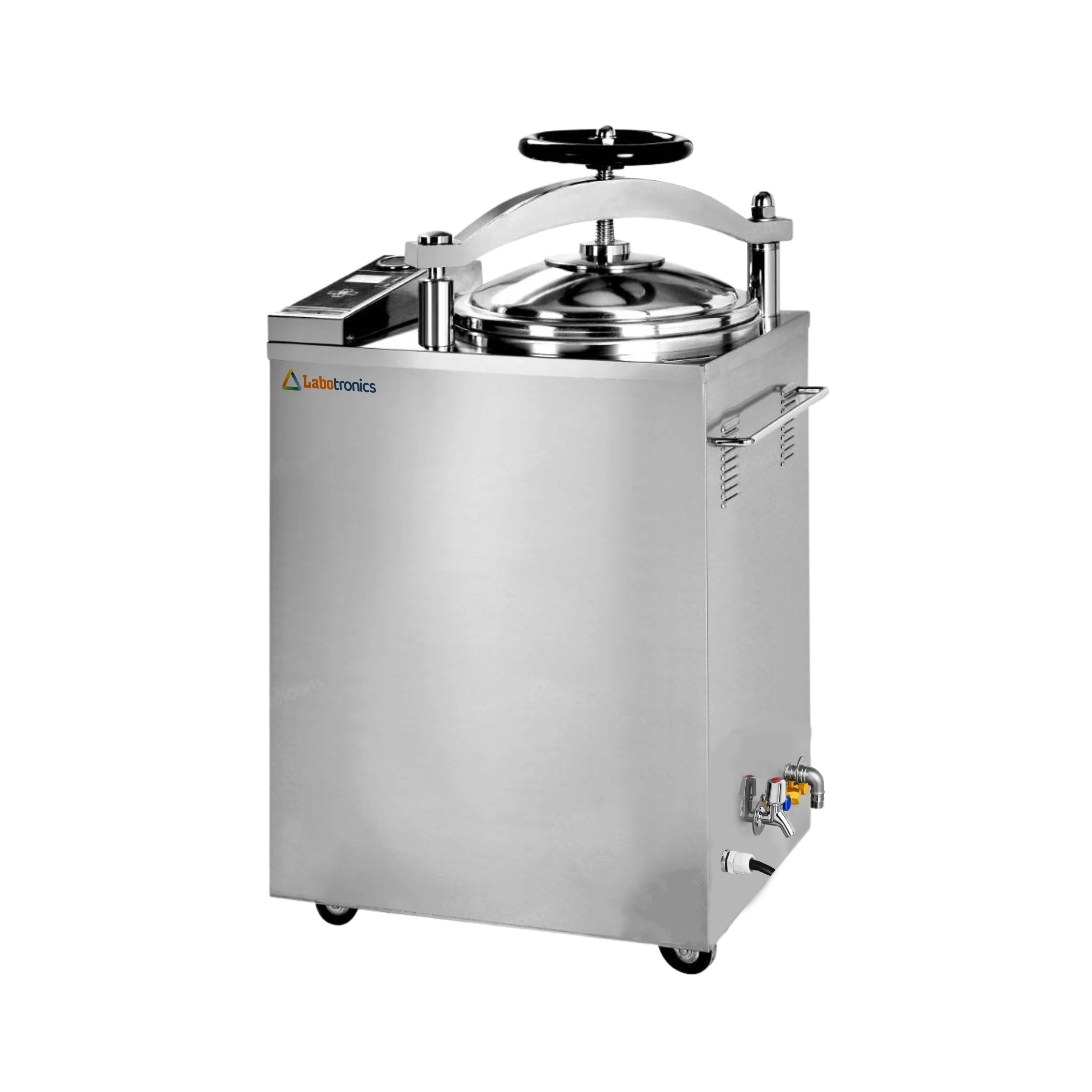

Vertical Autoclave LB-26VCA

Capacity	75 L
Temperature Range	0 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 3740

Vertical Autoclave LB-22VCA

Capacity	75 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2757.5

Vertical Autoclave LB-23VCA

Capacity	100 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 3120

Vertical Autoclave LB-16VCA

Capacity	75 L
Working Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 2726.25

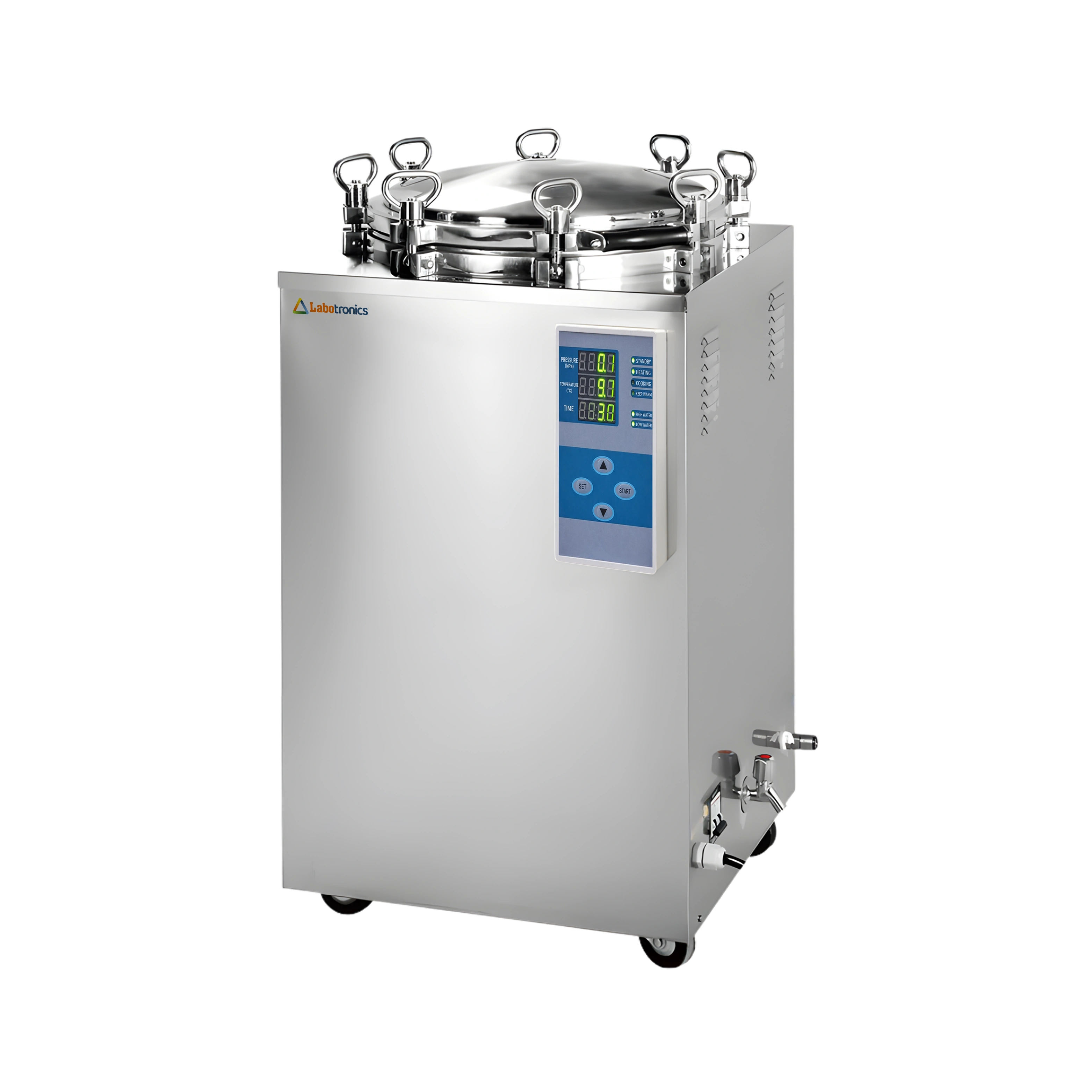

Vertical Autoclave LB-19VCA

Capacity	150 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa

$ 3120
