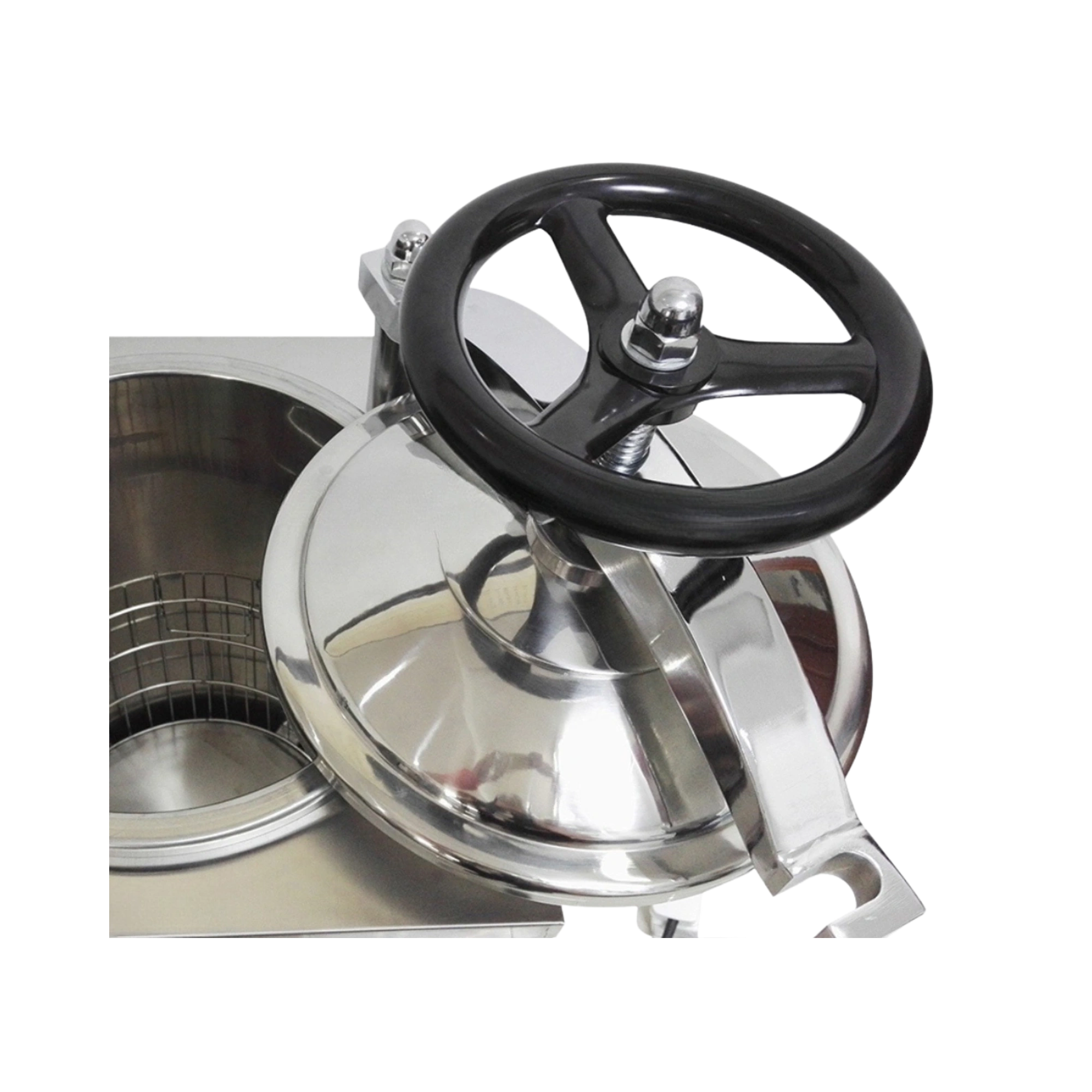

Vertical Autoclave LB-20VCA has a 35 L chamber and a 105 to 134 °C temperature range, ensuring precise and even sterilization. It operates at a working pressure of 0.22 MPa and can withstand a maximum pressure of 0.23 MPa, ensuring safe performance. It features a quick-open handwheel and safety interlock, ensuring secure and easy operation. Our autoclave includes an LCD touch display, providing intuitive and precise operation for enhanced user convenience.
Specifications
| Capacity | 35 L |
| Temperature Range | 105 to 134 °C |
| Maximum Working Temperature | 134 °C |
| Temperature Uniformity | ≤ ± 1 °C |
| Working Pressure | 0.22 MPa |
| Maximum Working Pressure | 0.23 MPa |
| Timer Range | 0 to 99 min / 0 to 99 hr 59 min |
| Power Consumption | 2.5 kW |
| Power Supply | AC 220 V; 50 Hz |
| Interior Dimension | Φ 318 × 450 mm |
| Exterior Dimension | 470 × 450 × 1020 mm |
| Packaging Dimension | 540 × 540 × 1140 mm |
| Net Weight | 63 kg |
| Gross Weight | 81 kg |
Features
Applications
Vertical Autoclave LB-20VCA is designed for sterilizing surgical instruments, dressings, and culture media. It is widely used in hospitals, clinics, laboratories, and research facilities.
Frequently asked questions For Vertical Autoclave
1. How does the Labotronics Vertical Autoclave LB-20VCA ensure safe operation?
Labotronics Vertical Autoclave LB-20VCA integrates a quick-open handwheel, safety interlock, and water-cut protection to prevent accidents and maintain secure operation during every sterilization cycle.
2. Does the Labotronics Vertical Autoclave LB-20VCA offer protection against overheating or water shortage?
Yes, Labotronics LB-20VCA comes with water-cut protection and a self-expanding seal, ensuring safe and efficient sterilization even in demanding operating conditions.
3. Can the Labotronics Vertical Autoclave LB-20VCA handle multiple loads at once?
Yes, Labotronics Vertical Autoclave LB-20VCA includes a double-layer mesh basket that allows organized and efficient sterilization of multiple items simultaneously.
4. What is the primary purpose of a Labotronics vertical autoclave?
Labotronics vertical autoclave is designed for high-efficiency steam sterilization, ensuring complete decontamination of laboratory and clinical instruments, media, and materials.
5. How does microcomputer control technology benefit Labotronics vertical autoclaves?
Labotronics vertical autoclaves use advanced microcomputer control to automate all sterilization phases, providing consistent performance with minimal operator intervention.
6. What makes the touchscreen interface on Labotronics vertical autoclaves useful?
Labotronics vertical autoclaves feature a user-friendly touchscreen interface that allows easy monitoring of temperature, pressure, and cycle progress for precise operation.
7. Do Labotronics vertical autoclaves ensure safety during operation?
Yes. Labotronics vertical autoclaves are equipped with multiple safety features including overpressure protection and automatic steam exhaust, ensuring safe use for operators.
8. How do Labotronics vertical autoclaves maintain temperature accuracy?
Labotronics vertical autoclaves provide uniform temperature distribution with precision controls, guaranteeing consistent sterilization performance across all loads.
