Vertical Autoclave LB-23VCA

Name: Vertical Autoclave LB-23VCA
Brand: Labotronics
SKU: LB-23VCA
Rating: 5 (597 reviews)

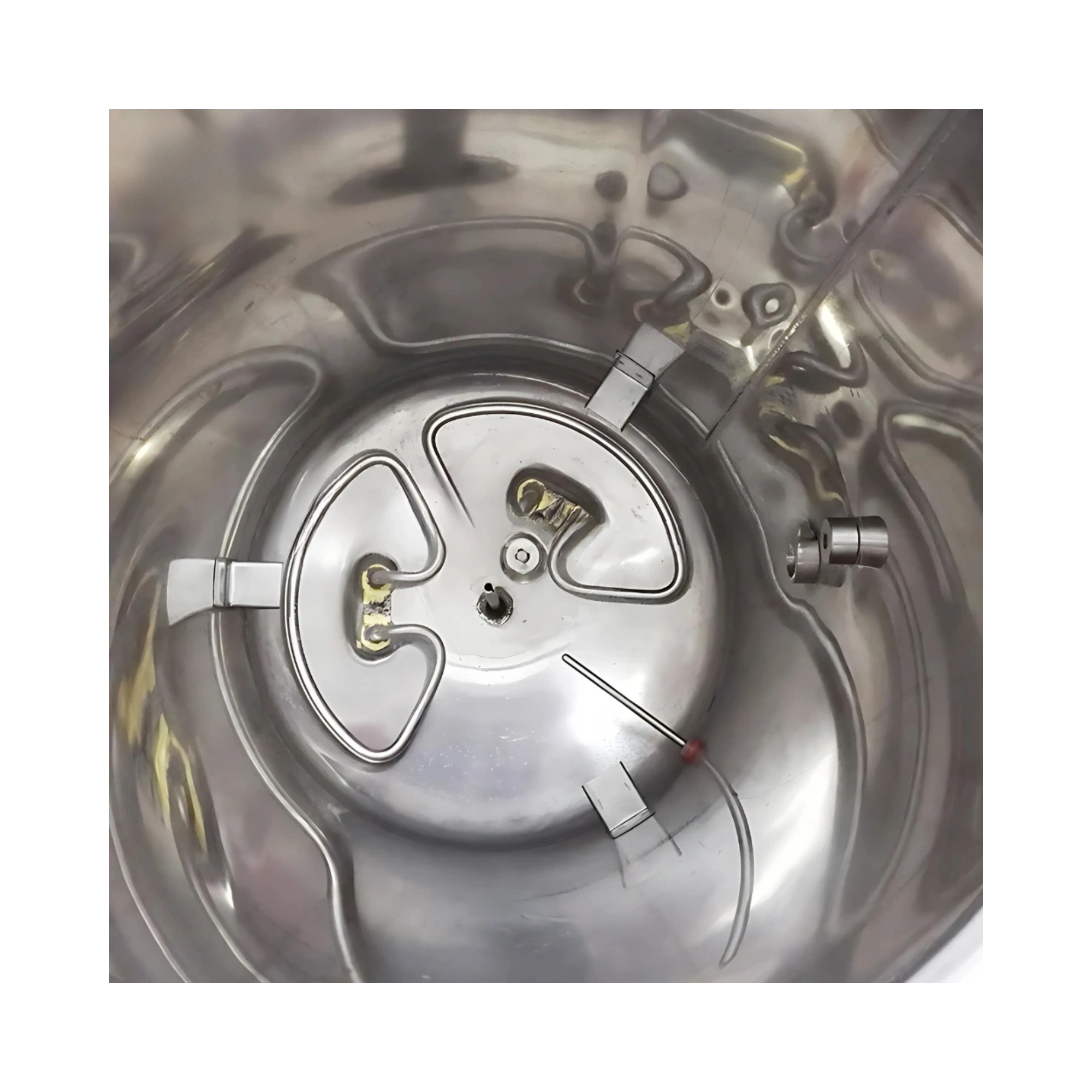

Vertical Autoclave LB-23VCA is designed with a large 100 L stainless steel chamber, ensuring ample capacity for bulk sterilization. It offers a temperature range of 105 to 134 °C with ≤ ±1 °C uniformity, ensuring consistent and precise sterilization. It is equipped with a quick-open handwheel and safety interlock, for safe and convenient operation. Our autoclave includes an LCD touch display, providing intuitive and precise operation for enhanced user convenience.

$ 3120

Download Catalog

Specifications

Capacity	100 L
Temperature Range	105 to 134 °C
Maximum Working Temperature	134 °C
Temperature Uniformity	≤ ± 1 °C
Working Pressure	0.22 MPa
Maximum Working Pressure	0.23 MPa
Timer Range	0 to 99 min / 0 to 99 hr 59 min
Power Consumption	4.5 kW
Power Supply	AC 220 V; 50 Hz
Interior Dimension	Φ 440 × 650 mm
Exterior Dimension	580 × 560 × 1290 mm
Packaging Dimension	640 × 640 × 1360 mm
Net Weight	105 kg
Gross Weight	125 kg

Features

Auto air discharge
Auto steam release
Overheat protection
Overpressure protection
Water cut-off control
Self-expanding seal
Auto buzzer stop
Simple operation
Mesh basket

Applications

Vertical Autoclave LB-23VCA is ideal for sterilizing surgical instruments, dressings, utensils, and culture media. It is commonly used in hospitals, clinics, laboratories, and research institutions.

1. How does the Labotronics Vertical Autoclave LB-23VCA ensure safe operation?

Labotronics Vertical Autoclave LB-23VCA is equipped with a safety interlock, overheat and overpressure protection, and automatic steam release, ensuring operator safety throughout the sterilization process.

2. How does the Labotronics Vertical Autoclave LB-23VCA guarantee consistent sterilization?

Labotronics Vertical Autoclave LB-23VCA maintains a temperature uniformity of ±1 °C, ensuring precise and even sterilization across the entire chamber.

3. Does the Labotronics Vertical Autoclave LB-23VCA provide alerts during operation?

Labotronics Vertical Autoclave LB-23VCA includes an automatic buzzer stop and warning features to notify users of cycle completion and safety conditions.

4. What is the primary purpose of a Labotronics vertical autoclave?

Labotronics vertical autoclave is designed for high-efficiency steam sterilization, ensuring complete decontamination of laboratory and clinical instruments, media, and materials.

5. How does microcomputer control technology benefit Labotronics vertical autoclaves?

Labotronics vertical autoclaves use advanced microcomputer control to automate all sterilization phases, providing consistent performance with minimal operator intervention.

6. What makes the touchscreen interface on Labotronics vertical autoclaves useful?

Labotronics vertical autoclaves feature a user-friendly touchscreen interface that allows easy monitoring of temperature, pressure, and cycle progress for precise operation.

7. Do Labotronics vertical autoclaves ensure safety during operation?

Yes. Labotronics vertical autoclaves are equipped with multiple safety features including overpressure protection and automatic steam exhaust, ensuring safe use for operators.

8. How do Labotronics vertical autoclaves maintain temperature accuracy?

Labotronics vertical autoclaves provide uniform temperature distribution with precision controls, guaranteeing consistent sterilization performance across all loads.
