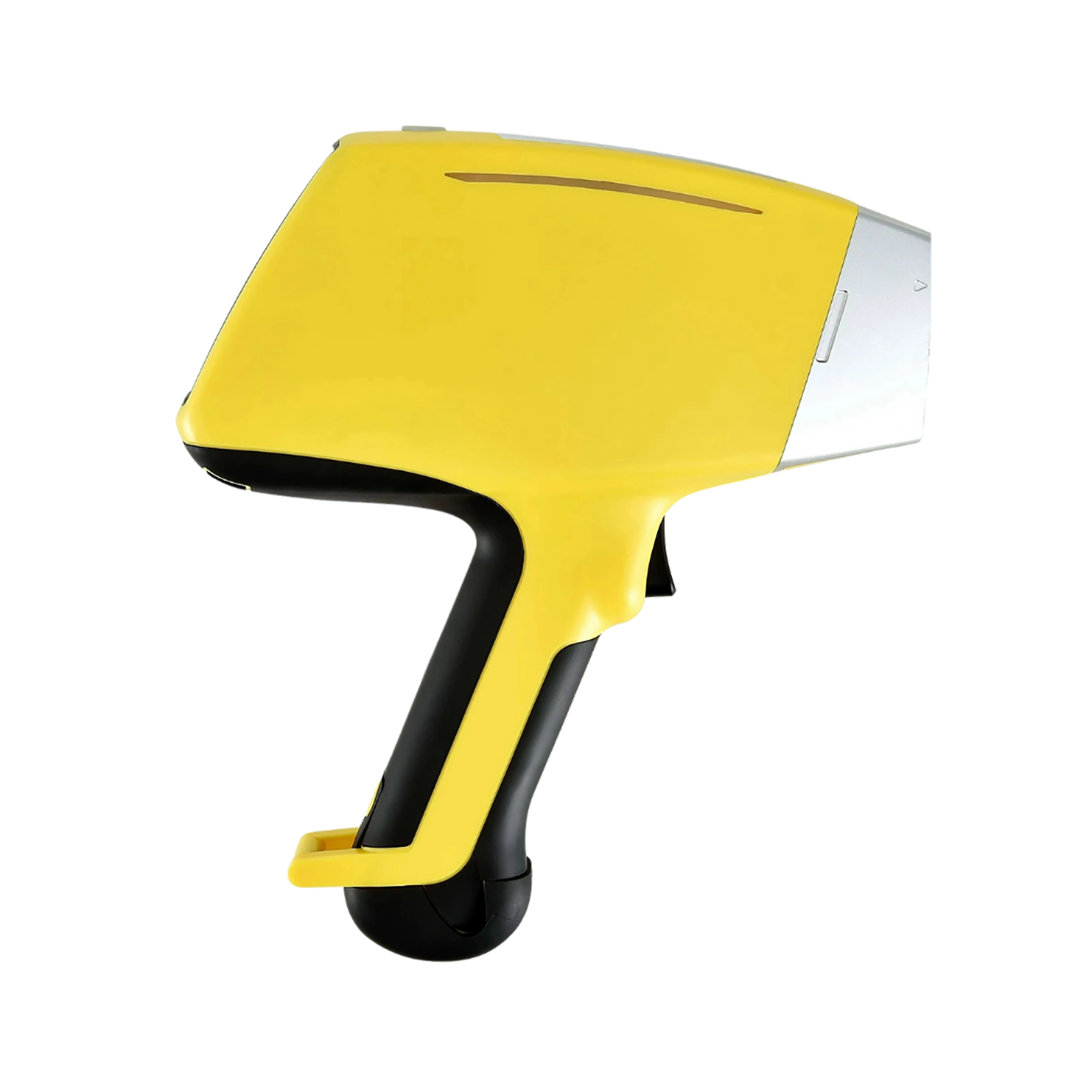

XRF Gold Analyzer LB-30GA

Name: XRF Gold Analyzer LB-30GA
Brand: Labotronics
SKU: LB-30GA
Rating: 4.7 (572 reviews)

XRF Gold analyzer LB-30GA is a handheld analyzer designed for analysis of precious metals and to assess the quality and grade of gold. It determines the chemistry of a sample by measuring the fluorescent X-rays emitted when excited by a primary-ray source. Built-in BOOST Si-pin detector facilitates high accuracy elemental analysis.

$ 23187.5

Download Catalog

Specifications

Detector	BOOST Si-pin detector
Detection range ( ppm )	Fe, Co, Ni, Cu, Zn, Se, Ru, Rh, Pd, Ag, Cd, In, Ir, Pt, Au and Pb
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %
Pipe flow pressure	Adjustable
Digital pulse processor	80 MHz ADC digital pulse processor
Heat dissipation system	T-shaped radiator
Display panel	4.3 inch industrial resistive touch screen
Display brightness	Automated adjustment
Memory capacity	32 GB
Data storage	32 GB, 300,000 spectral data
Battery life	8 hours
Dimensions ( W x H x D )	79 x 280 x 254 mm
Weight ( with battery )	1.6 kgs

Features

Non-destructive and accurate karat classification
BOOST Si-pin detector
Double beam technology for auto detection of sample front
Analysis of small diameter samples ( ppm range )
Real-time battery monitoring ( M-bus battery )
50 kV / 200 µA Au, W, Rh target excitation source ( optional )
USB, Bluetooth and WiFi compatible
Data exportable to EXCEL or PDF format

Applications

Used in jewellery industry, pawn shops, museums, archeological sites and coin collectors to test the quality and grade of precious metals (Gold)

Get Quote

XRF Ore Analyzer LB-56OR

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Cl ,K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg, Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 ° C)
Operating humidity	≤ 90 %

$ 35187.5

XRF Alloy Analyzer LB-65AL

Detector	BOOST Si-pin detector
Detection range ( ppm )	Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 22187.5

XRF Alloy Analyzer LB-66AL

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 27187.5

XRF Ore Analyzer LB-55OR

Detector	BOOST Si-pin detector
Detection range ( ppm )	K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 31187.5

XRF Soil Analyzer LB-40SA

Detector	BOOST Si-pin detector
Detection range ( ppm )	K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Re, Pd, Au, Hg, Pb, Bi, Cs, Ba, Th and U
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 31187.5

XRF RoHS analyzer LB-10RA

Detector	BOOST Si-pin detector
Detection range ( ppm )	Pb, Hg, Cd, Cr, Br and As
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 26187.5

XRF Soil Analyzer LB-41SA

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Au, Hg, Pb, Bi, Ba, Th, U, Sc, Cs, Te, Pd, Hf, Ta, Re, Ge Tl and I
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 35187.5
