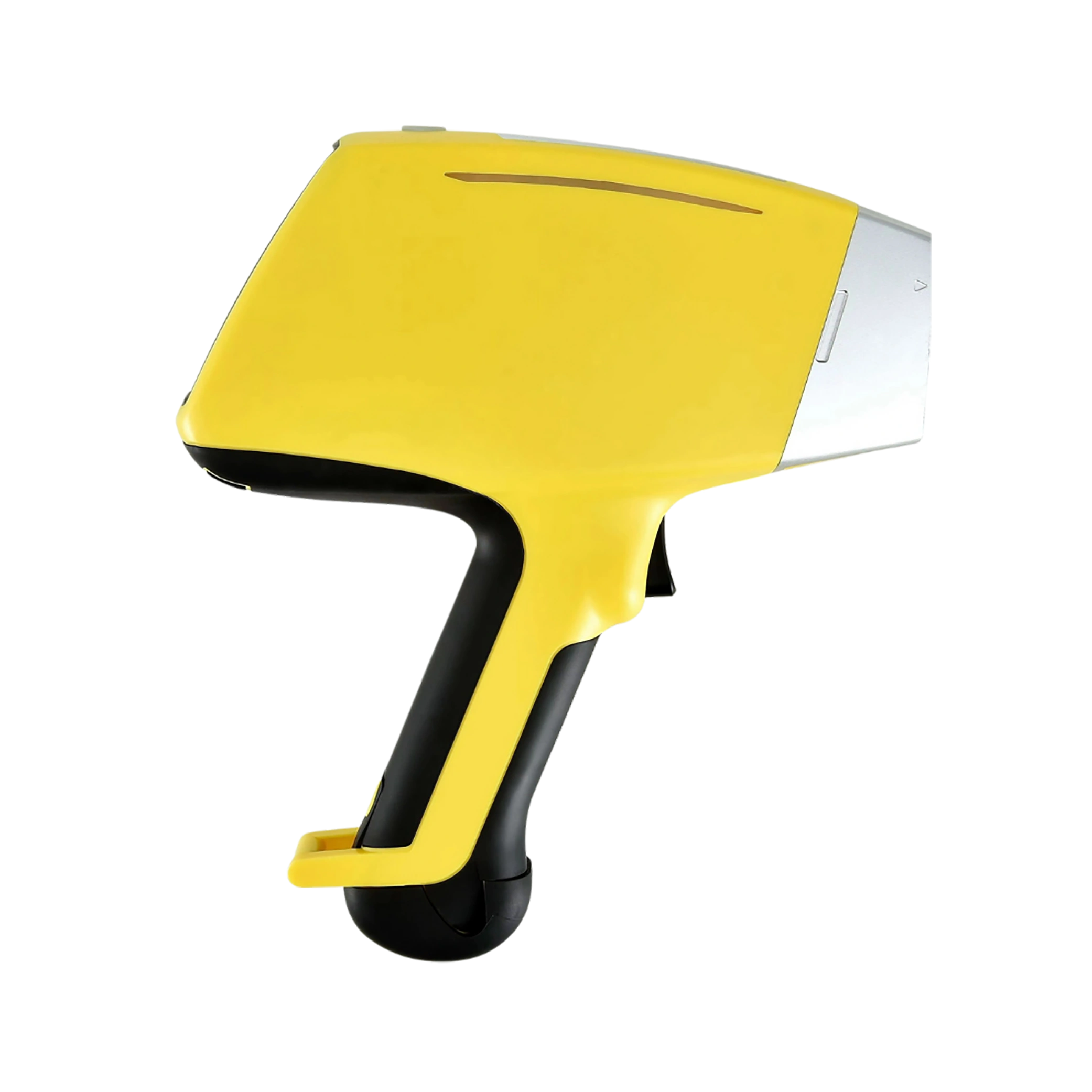

XRF Soil Analyzer LB-40SA is a handheld analyzer designed for analysis of toxic and hazardous substances present in the environment. Built-in ultrashort light path design improves light element Mg, Al, Si, S and P excitation effect. Equipped with BOOST Si-pin detector and automated environmental parameter (temperature, dust and dark) regulation facilitating high accuracy elemental analysis.
Buy Now Download CatalogSpecifications
| Detector | BOOST Si-pin detector |
| Detection range ( ppm ) | K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Re, Pd, Au, Hg, Pb, Bi, Cs, Ba, Th and U |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
| Operating humidity | ≤ 90 % |
| Pipe flow pressure | Adjustable |
| Digital pulse processor | 80 MHz ADC digital pulse processor |
| Heat dissipation system | T-shaped radiator |
| Display panel | 4.3 inch industrial resistive touch screen |
| Display brightness | Automated adjustment |
| Memory capacity | 32 GB |
| Data storage | 32 GB, 300,000 spectral data |
| Battery life | 8 hours |
| Dimensions ( W x H x D ) | 79 x 280 x 254 mm |
| Weight ( with battery ) | 1.6 kgs |
Features
Applications
Used for on-site environmental pollution assessment to test for the presence of toxic and hazardous heavy metals like arsenic, barium, cadmium, chromium, lead, mercury, selenium and silver as part of environmental remediation efforts, regulatory compliance and to ensure product safety
What our customers say
Carlos Cordero
2 years ago
John Mbatsi
1 year ago
Yibeltal yihunie
1 year ago
Dennis Atwooki
5 days ago
Andrew
1 year ago
Add a review
| Detector | BOOST Si-pin detector |
| Detection range ( ppm ) | Pb, Hg, Cd, Cr, Br and As |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
| Detector | SDD detector |
| Detection range ( ppm ) | Mg, Al, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Au, Hg, Pb, Bi, Ba, Th, U, Sc, Cs, Te, Pd, Hf, Ta, Re, Ge Tl and I |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
| Detector | BOOST Si-pin detector |
| Detection range ( ppm ) | Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb and Bi |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
| Detector | SDD detector |
| Detection range ( ppm ) | Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb and Bi |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
| Detector | SDD detector |
| Detection range ( ppm ) | Mg, Al, Si, P, S, Cl ,K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg, Pb and Bi |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 ° C) |
| Detector | BOOST Si-pin detector |
| Detection range ( ppm ) | K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg Pb and Bi |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
| Detector | BOOST Si-pin detector |
| Detection range ( ppm ) | Fe, Co, Ni, Cu, Zn, Se, Ru, Rh, Pd, Ag, Cd, In, Ir, Pt, Au and Pb |
| Excitation source ( standard ) | 50 kV / 200 µA Ag target |
| Operating temperature | ( -20 °C to 50 °C ) |
