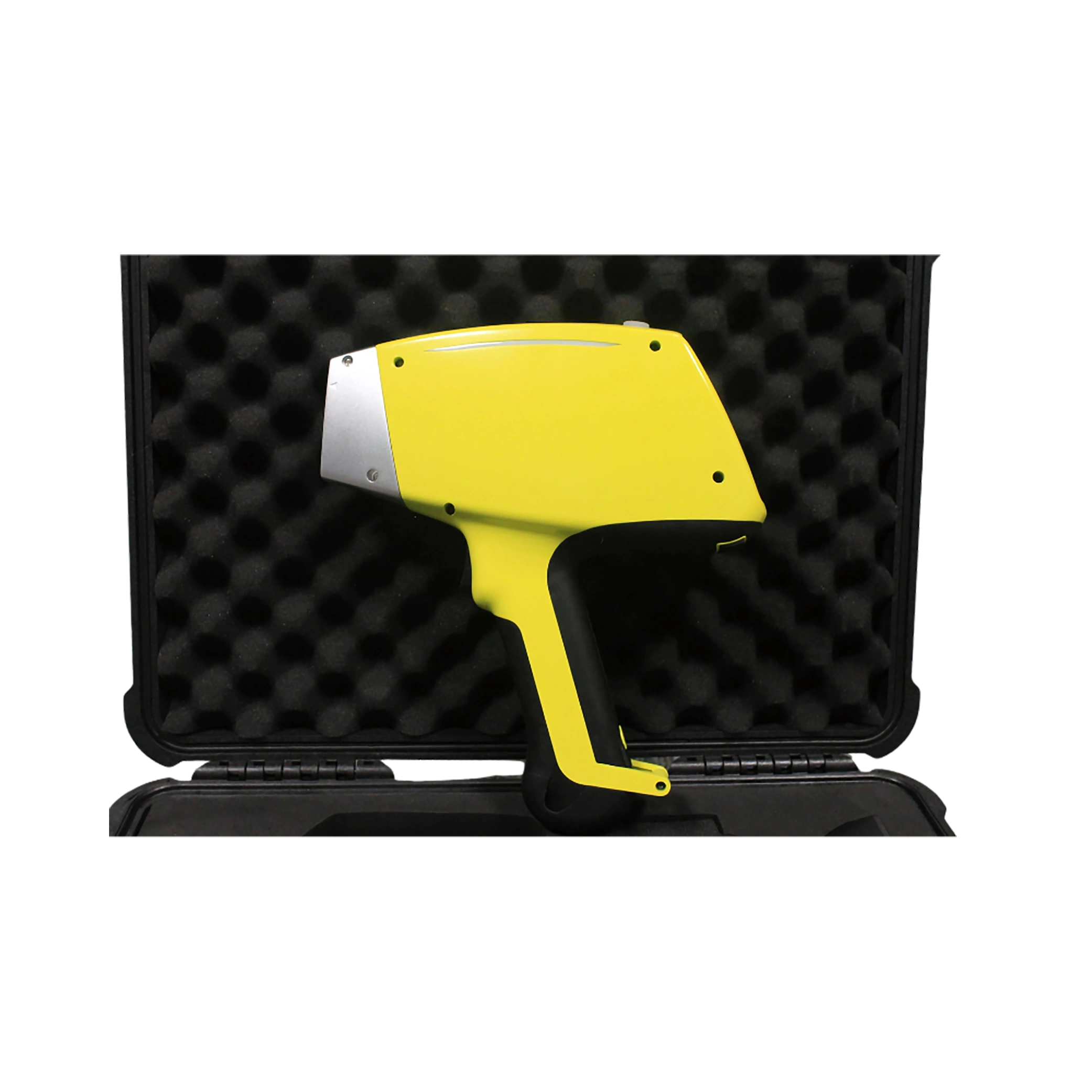

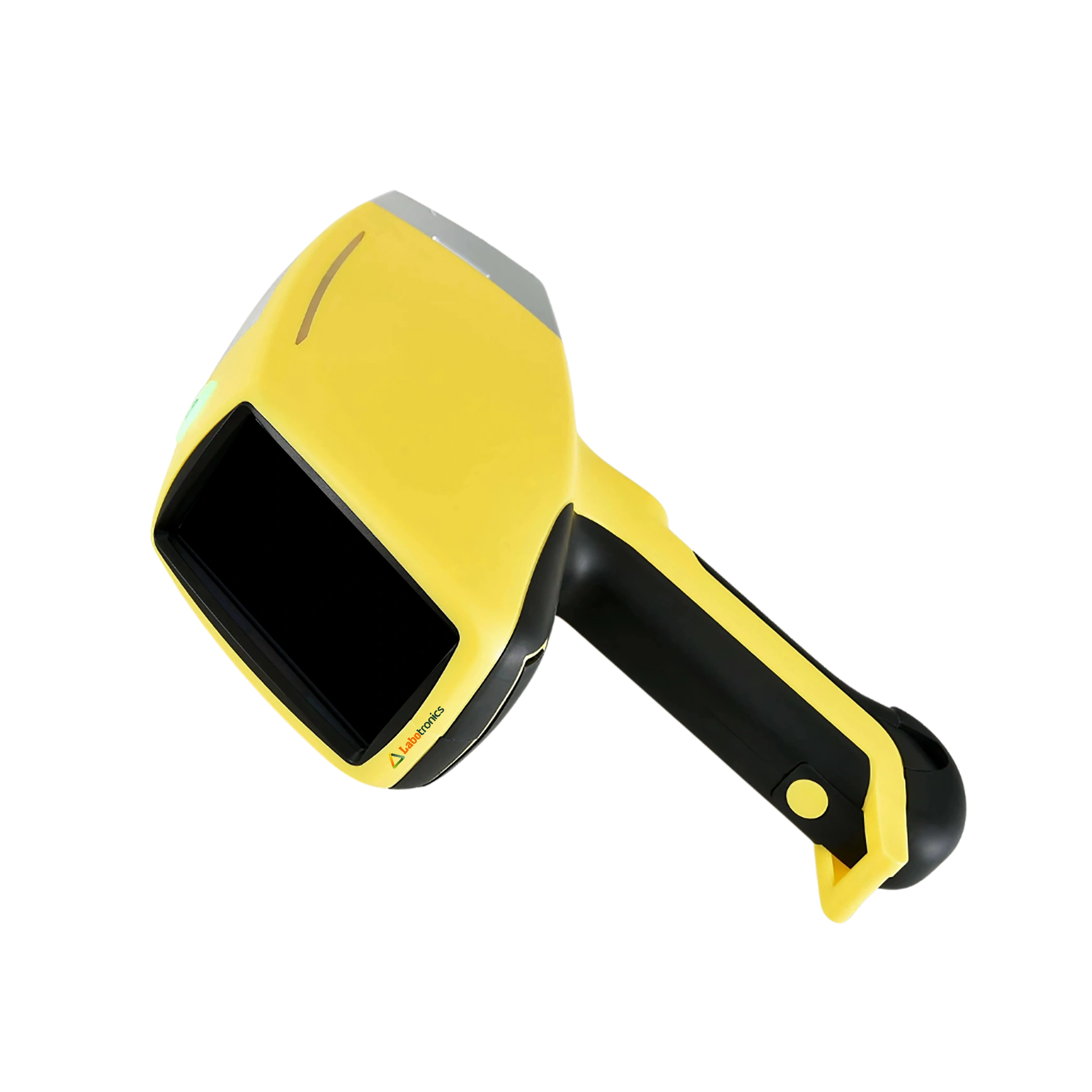

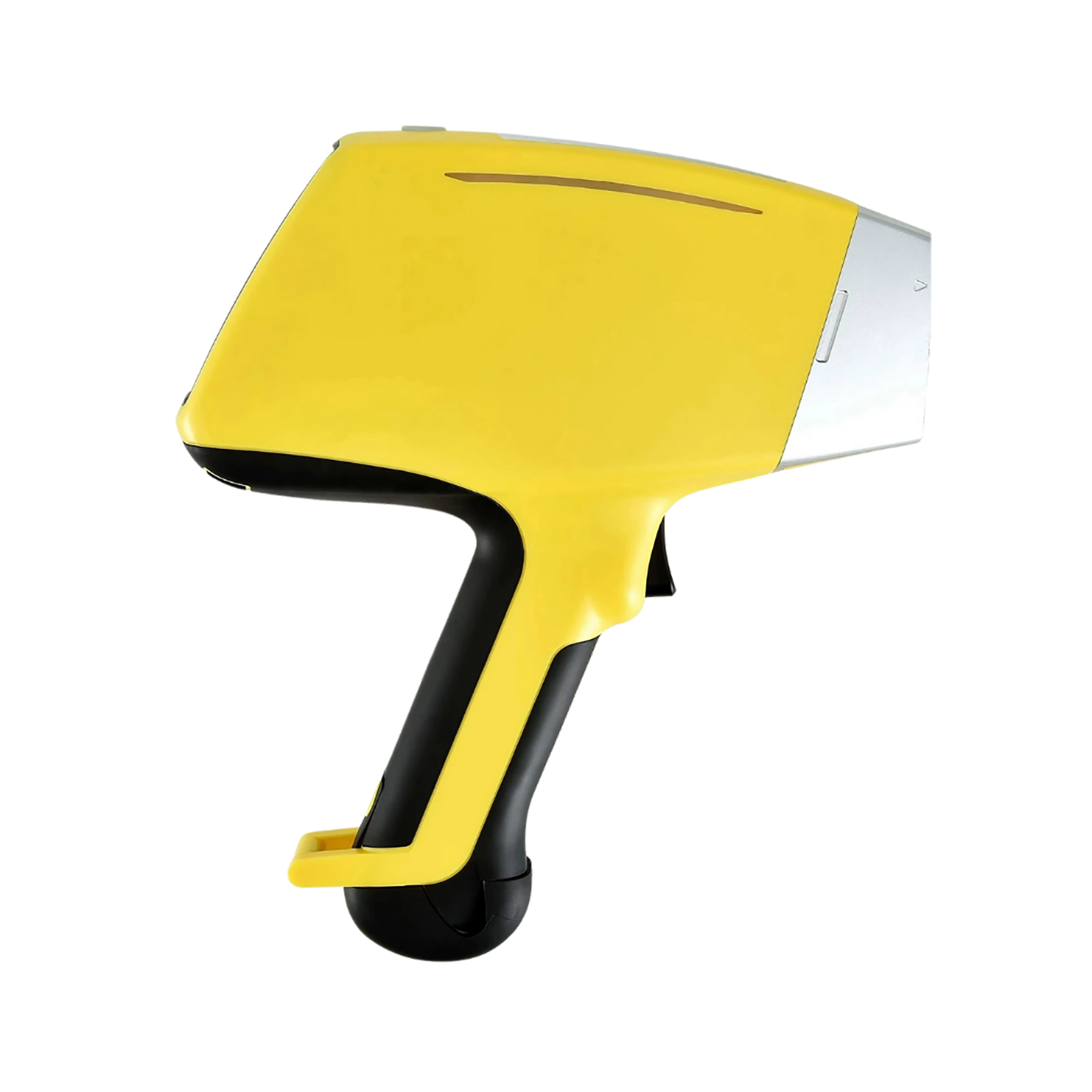

XRF Ore Analyzer LB-55OR

Name: XRF Ore Analyzer LB-55OR
Brand: Labotronics
SKU: LB-55OR
Rating: 4.5 (578 reviews)

XRF ore analyzer LB-55OR is a handheld analyzer designed for analysis ore types and their elemental composition. It determines the chemistry of a sample by measuring the fluorescence X-rays emitted when excited by a primary-ray source. Configured with BOOST Si-Pin detector facilitating high accuracy elemental analysis.

$ 31187.5

Download Catalog

Specifications

Detector	BOOST Si-pin detector
Detection range ( ppm )	K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %
Pipe flow pressure	Adjustable
Digital pulse processor	80 MHz ADC digital pulse processor
Heat dissipation system	T-shaped radiator
Display panel	4.3 inch industrial resistive touch screen
Display brightness	Automated adjustment
Memory capacity	32 GB
Data storage	32 GB, 300,000 spectral data
Battery life	8 hours
Dimensions ( W x H x D )	79 x 280 x 254 mm
Weight ( with battery )	1.6 kgs

Features

Non-destructive, accurate and rapid analysis of elements
Automated altitude pressure adjustment
Built-in GPS with latitude, longitude and altitude data ( optional )
Double beam technology for auto detection of sample front
Rapid analysis of mineral reserves or geological disaster area
Wide range ore analysis ( 30 standard elements )
Analysis of small diameter samples ( ppm range )
Real-time battery monitoring ( M-bus battery )
50 kV / 200 µA Au, W, Rh target excitation source ( optional )
USB, Bluetooth and WiFi compatible
Data exportable to EXCEL or PDF format

Applications

Used in petrochemical and mining industry to test and identify ore grade, mineral hot spots, mineral composition, extraction and concentration efficiency

Get Quote

XRF Alloy Analyzer LB-65AL

Detector	BOOST Si-pin detector
Detection range ( ppm )	Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 22187.5

XRF Alloy Analyzer LB-66AL

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 27187.5

XRF RoHS analyzer LB-10RA

Detector	BOOST Si-pin detector
Detection range ( ppm )	Pb, Hg, Cd, Cr, Br and As
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 26187.5

XRF Soil Analyzer LB-41SA

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Au, Hg, Pb, Bi, Ba, Th, U, Sc, Cs, Te, Pd, Hf, Ta, Re, Ge Tl and I
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 35187.5

XRF Ore Analyzer LB-56OR

Detector	SDD detector
Detection range ( ppm )	Mg, Al, Si, P, S, Cl ,K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg, Pb and Bi
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 ° C)
Operating humidity	≤ 90 %

$ 35187.5

XRF Soil Analyzer LB-40SA

Detector	BOOST Si-pin detector
Detection range ( ppm )	K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, W, Re, Pd, Au, Hg, Pb, Bi, Cs, Ba, Th and U
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 31187.5

XRF Gold Analyzer LB-30GA

Detector	BOOST Si-pin detector
Detection range ( ppm )	Fe, Co, Ni, Cu, Zn, Se, Ru, Rh, Pd, Ag, Cd, In, Ir, Pt, Au and Pb
Excitation source ( standard )	50 kV / 200 µA Ag target
Operating temperature	( -20 °C to 50 °C )
Operating humidity	≤ 90 %

$ 23187.5
