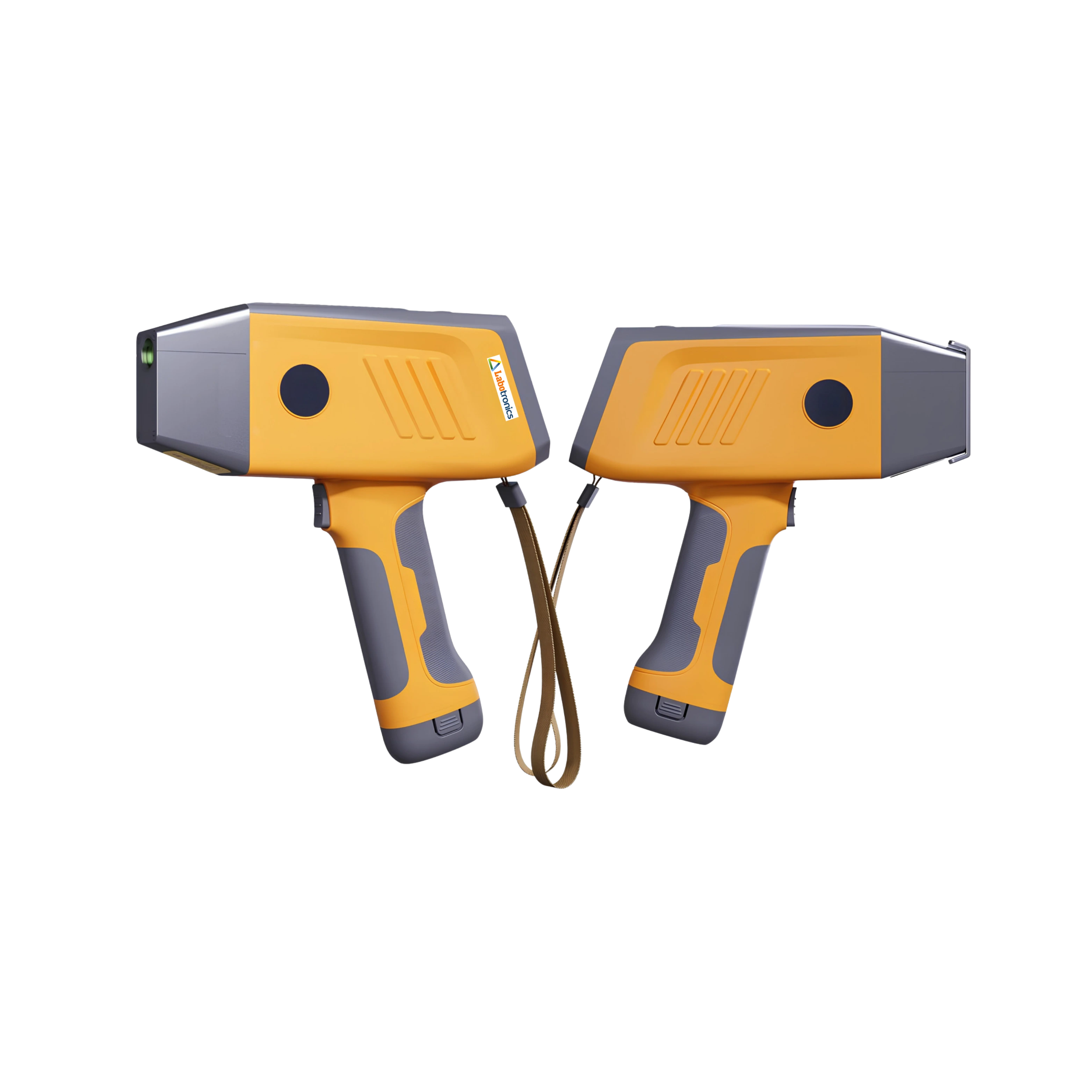

Handheld XRF Spectrometer LB-HS12

Name: Handheld XRF Spectrometer LB-HS12
Brand: Labotronics
SKU: LB-HS12
Rating: 4.6 (595 reviews)

Handheld XRF Spectrometer LB-HS12 produces results within 2 seconds, using a multi-beam mechanism and an average value statistics function across multiple tests. It analyzes 34 alloy elements using a high-resolution SDD detector cooled to -35°C for consistent accuracy. From irregular shapes to filaments as fine as 0.06mm, the instrument delivers precise analysis on even the smallest test pieces.

$ 36250

Download Catalog

Specifications

Analyzed Elements	34 alloy elements
Analytical Method	X-ray Fluorescence (XRF)
Detection Elements	Mg, Al, Si, S, P, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hf, Ta, W, Pb, Bi, Zr, Nb, Mo, Cd, Sn, Sb, Re, In, Au, Ag, Pt, Pd, Ru, Rh, Ir
Element Content Range	0.01%–99.99%
Detection Time	2 s
Detector	25 mm² Silicon Drift Detector (SDD)
Detector Resolution	<129 eV
Detector Cooling	Peltier semiconductor cooling (-35 °C)
Excitation Source	50 kV Micro X-ray Tube with Silver (Ag) Target
Filters	Six automatic filters
Analysis Mode	Alloy mode
Display	High-resolution 3.5-inch color TFT touchscreen
Data Storage	32 GB, stores ≥40,000 datasets and spectra
Power Supply	Dual rechargeable lithium batteries and AC power
Battery Runtime	Up to 8 h
Operating Temperature	-20 °C to +50 °C
Operating Humidity	<80% RH
Dimensions (H × W × D)	230 × 65 × 90 mm
Weight	1.6 kg

Features

• Results in 2 seconds
• Multi-test result averaging
• 3.5-inch color TFT touchscreen
• Six automatic filters
• Automatic stop when no sample is detected
• Large data storage
• Aluminum alloy body with vibration resistance

Standard Accessories

• K-MAX Analysis Software
• User Manual
• Waterproof, Dustproof, and Shockproof Carrying Case
• Rechargeable Lithium Batteries (2)
• Lithium Battery Charger
• Power Adapter
• USB Data Cable
• Wrist Strap

Applications

Used for alloy grade identification, Positive Material Identification (PMI), material composition verification, weld inspection, scrap metal sorting, pipeline inspection, and non-destructive elemental analysis in industrial and manufacturing environments.

Handheld XRF Spectrometer LB-HS10

Analyzed Elements	Nine heavy metal elements
Analytical Method	X-ray Fluorescence
Measurement Element Range	Atomic numbers 12–92 (Magnesium (Mg) to Uranium (U))
Detection Elements	Chromium (Cr), Arsenic (As), Lead (Pb), Bromine (Br), Mercury (Hg), Cadmium (Cd), Selenium (Se), Antimony (Sb), and Barium (Ba)
Content Range	ppm–99.99%

$ 37500

Handheld XRF Spectrometer LB-HS11

Analyzed Elements	29 alloy elements
Analytical Method	X-ray Fluorescence (XRF)
Measurement Element Range	Titanium (Ti) to Iridium (Ir)
Detection Elements	Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hf, Ta, W, Pb, Bi, Zr, Nb, Mo, Cd, Sn, Sb, Re, In, Au, Ag, Pt, Pd, Ru, Rh, and Ir
Element Content Range	0.01%–99.99%
