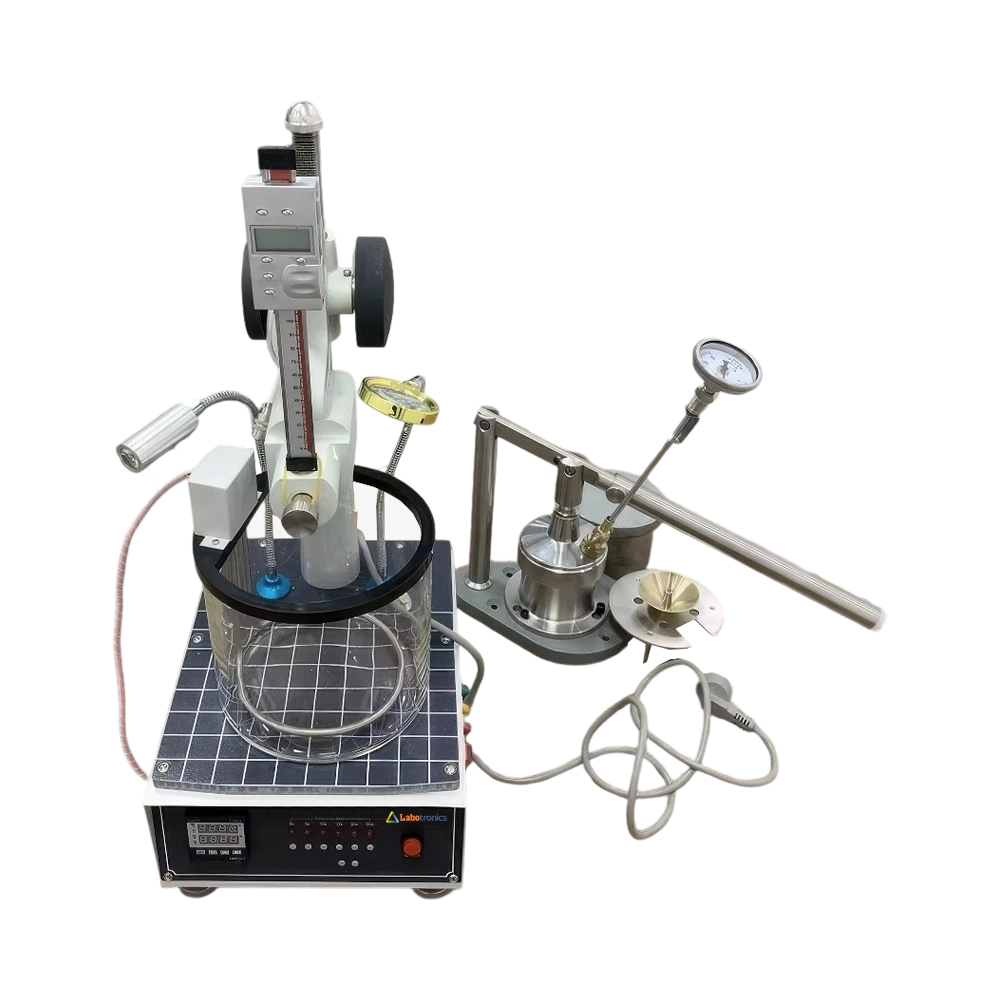

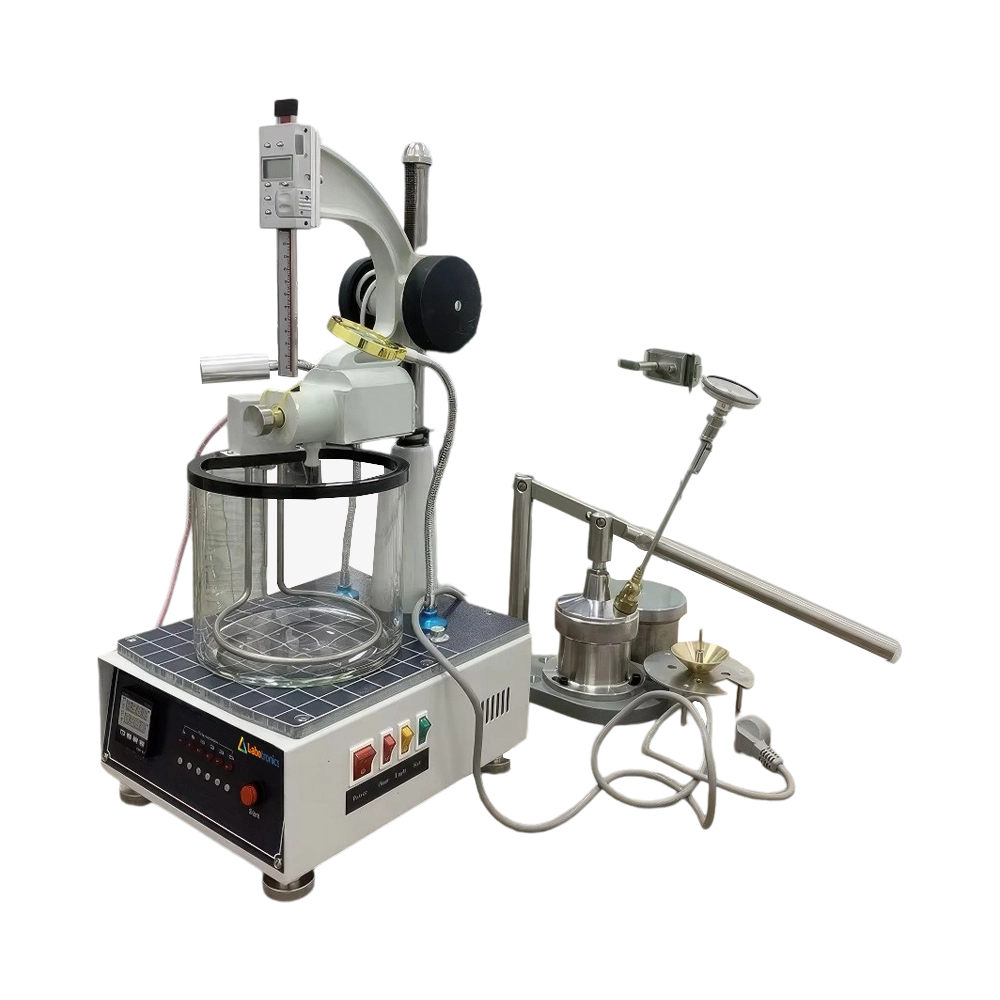

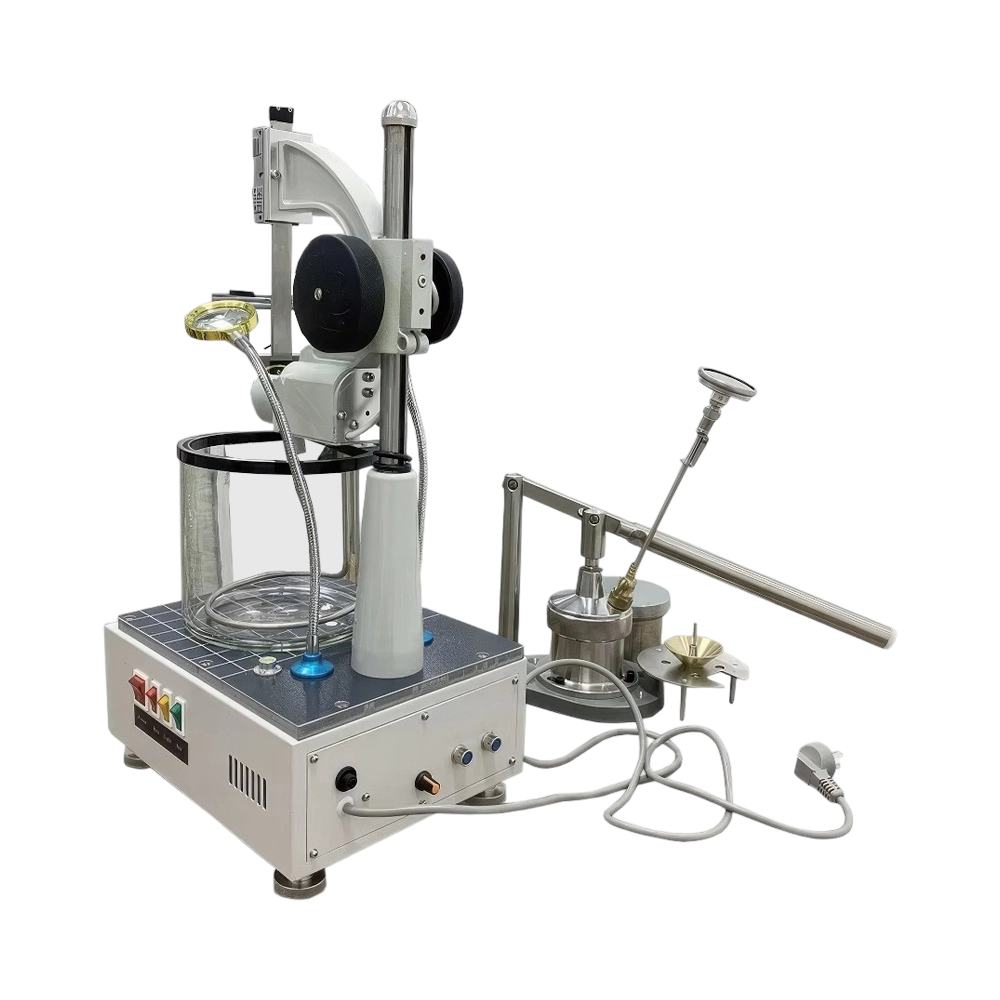

Penetrometer LB-20CNP offers a measuring range of up to 60 mm, enabling accurate assessment of material penetration depth. It operates effectively within a temperature range of 15°C to 35°C, ensuring stable thermal conditions. It has a cold light source and a magnifying glass, providing easier and clearer viewing. The penetrometer features a digital display, allowing for clear data monitoring and visualization.
$ 4512.5
Download CatalogSpecifications
| Measuring Range | 0 to 60 mm |
| Resolution | 0.01 mm (0.1 penetration) |
| Temperature Range | 15 to 35°C |
| Temperature Control Accuracy | 25℃ ±0.1℃ |
| Humidity Range | ≤ 85% |
| Test Duration | 5s, 8s, 10s, 12s, 30s, 60s |
| Timing Accuracy | ≤ ±0.1s |
| Stirring Method | Magnetic stir bar rotation |
| Temperature Bath | Hard glass cylinder |
| Heater Power Consumption | 200 W |
| Power Supply | AC 220V ±10%, 50 Hz |
| Dimensions (L × W × H) | 260 × 400 × 640 mm |
| Net Weight | 16 kg |
Features
Applications
Penetrometer LB-20CNP is used to measure the penetration depth of materials like asphalt, paraffin, and lubricating grease. It is widely applied in road construction, petroleum, and quality control laboratories for material testing and performance evaluation.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Measuring Range | 0 to 60 mm |
| Resolution | 0.01 mm (0.1 penetration) |
| Temperature Control Accuracy | 0.1℃ |
| Test Duration | 5 seconds / 60 seconds |
| Timing Accuracy | ±0.1s |
| Measuring range | 0 mm ~ 60 mm |
| Subdivision | 1/10 mm |
| Constant temperature point | 25 °C ± 0.2 °C |
| Accuracy | ± 0.01 mm |
| Timing | 5 s ± 0.1 s |
