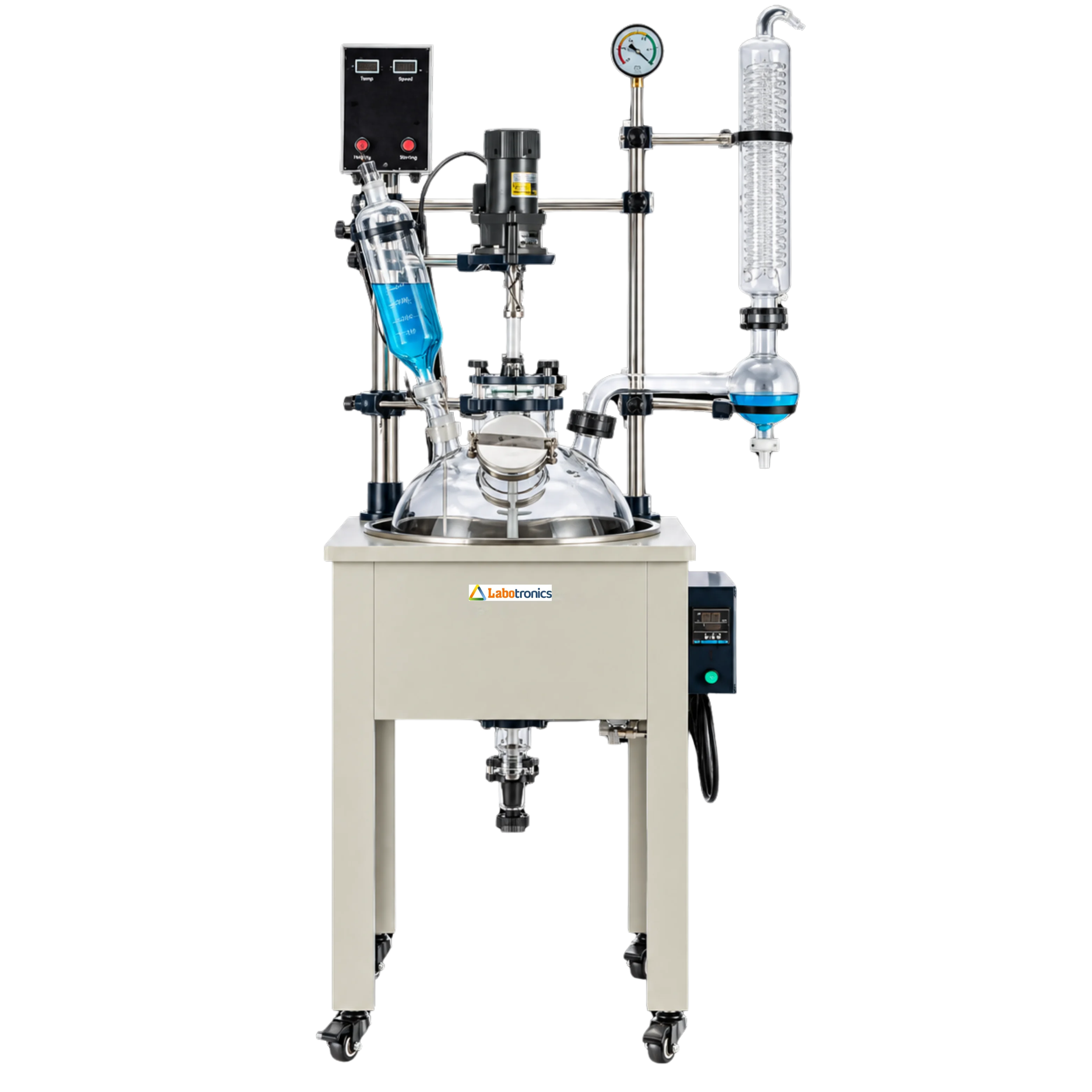

Single Glass Jacketed Reactor LB-80SGR operates with adjustable stirring speeds from 0 to 800 rpm for controlled mixing during chemical reactions. Its 5 L jacketed glass vessel supports reaction temperatures from -80 to +250 °C and provides uniform heating to the reaction material. The unit supports vacuum-assisted operation to help improve evaporation efficiency and includes a 500 mL dropping funnel for controlled reagent addition during operation.
$ 3050
Download CatalogSpecifications
| Glass Vessel Volume | 5 L |
| Glass Vessel Diameter | Φ230 mm |
| Temperature Range | -80 to +250 °C |
| Bath Temperature Control Range | RT to 180 °C |
| Temperature Measurement Accuracy | ±1 °C |
| Stirring Speed | 0–800 rpm |
| Vacuum Degree | 0.098 MPa |
| Dropping Funnel Capacity | 500 mL |
| Heating Power | 1.5 kW |
| Stirring Motor Power | 90 W |
| Power Supply | 220 V / 50 Hz |
| Dimensions (W × D × H) | (430–1030) × 330 × 1150 mm |
| Weight | 25 kg |
Features
• High-Torque Brushless Motor
• Vacuum Pressure Gauge
• Stainless Steel Heating Bath
• PTFE and Fluororubber Double Seal
• Low-Noise Operation
• Ceramic Bearing Assembly
Applications
Single Glass Jacketed Reactor LB-80SGR is used for chemical synthesis, extraction, concentration, crystallization, and evaporation processes. It is widely utilized in chemical, pharmaceutical, research, and academic laboratories.
